CAM CHAIN

GSXR750X 2005 (K5) USA (E03)

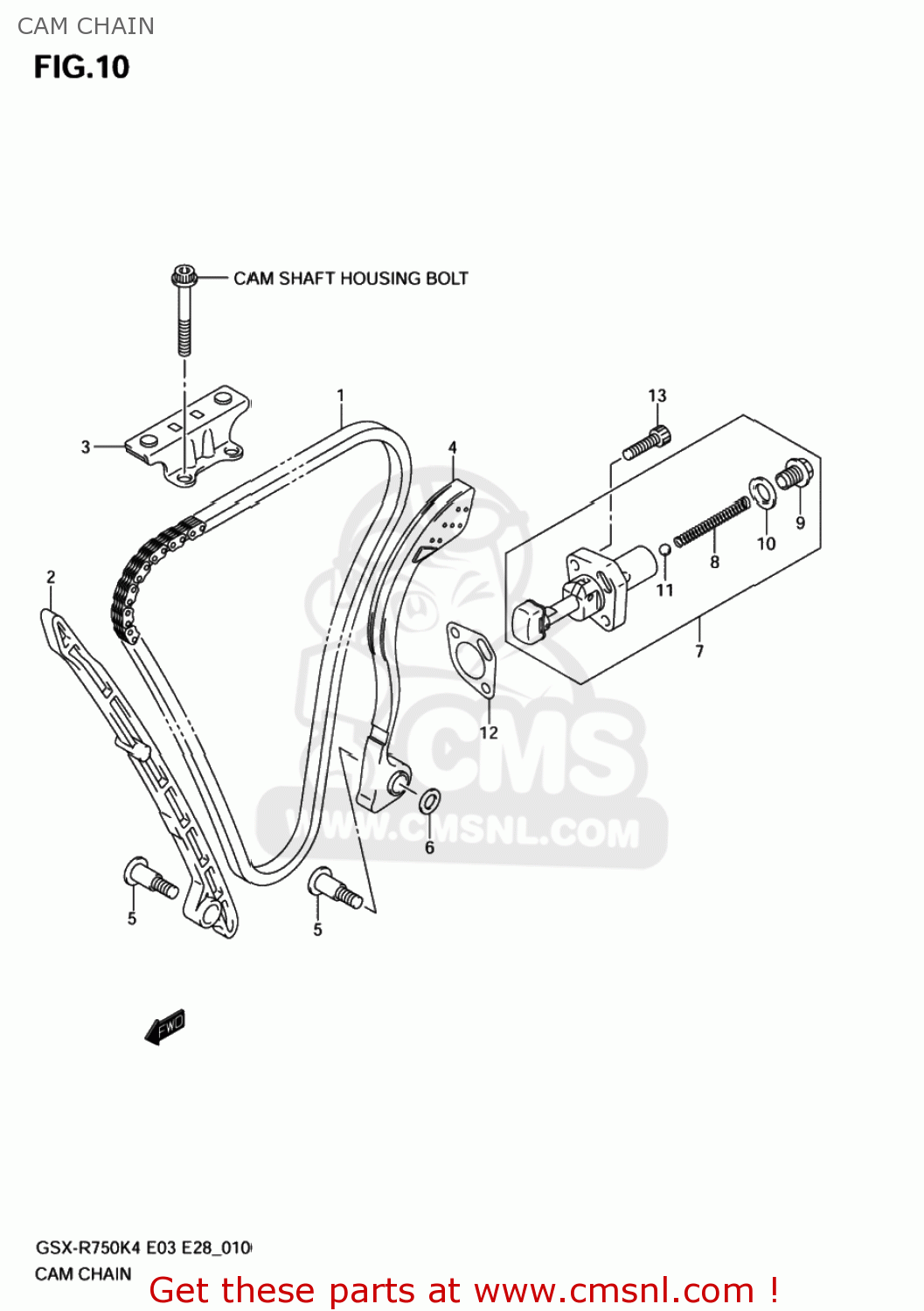

Cam chain diagram GSXR750X 2005 (K5) USA (E03)

CAM CHAIN GSXR750X 2005 (K5) USA (E03)

CAM CHAIN GSXR750X 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1276035F00
ref: 1
12760-35F01

CHAIN COMP,CAMSHAFT DRIVE

€ 138.50

2

1277130G00
ref: 2

GUIDE,CAM CHAIN NO.1

€ 19.50

3

1278235F10
ref: 3

GUIDE CAM CHAIN NO,2

€ 17.00

4

1281130G00
ref: 4

TENSIONER,CAM CHAIN

€ 50.00

5

1281226B02
ref: 5

BOLT,CAM CHAIN TENSIONER/GUIDE

€ 6.00

6

1281330G00
ref: 6

WASHER,CAM CHAIN TNSN

€ 4.00

7-1

1283030G00
ref: 7-1
12830-30G01

ADJUSTER ASSY,

€ 114.00

7-2

1283030G01
ref: 7-2

ADJUSTER ASSY,TENSIONER

€ 114.00

8

1283139F00
ref: 8

SPRING

€ 3.50

9

1283305A00
ref: 9

PLUG,FR TENSIONER ADJ

€ 9.00

10

1283724F10
ref: 10

GASKET,TENSIONER ADJUSTER (NAS)

€ 4.00

11

1283935F00
ref: 11

BALL

€ 4.50

12

1283718G00
ref: 12

GASKET,TENSIONER ADJUSTER (NAS)

€ 5.00

13

0713006253
ref: 13
07130-0625B

BOLT,CL.COVER

€ 3.00
