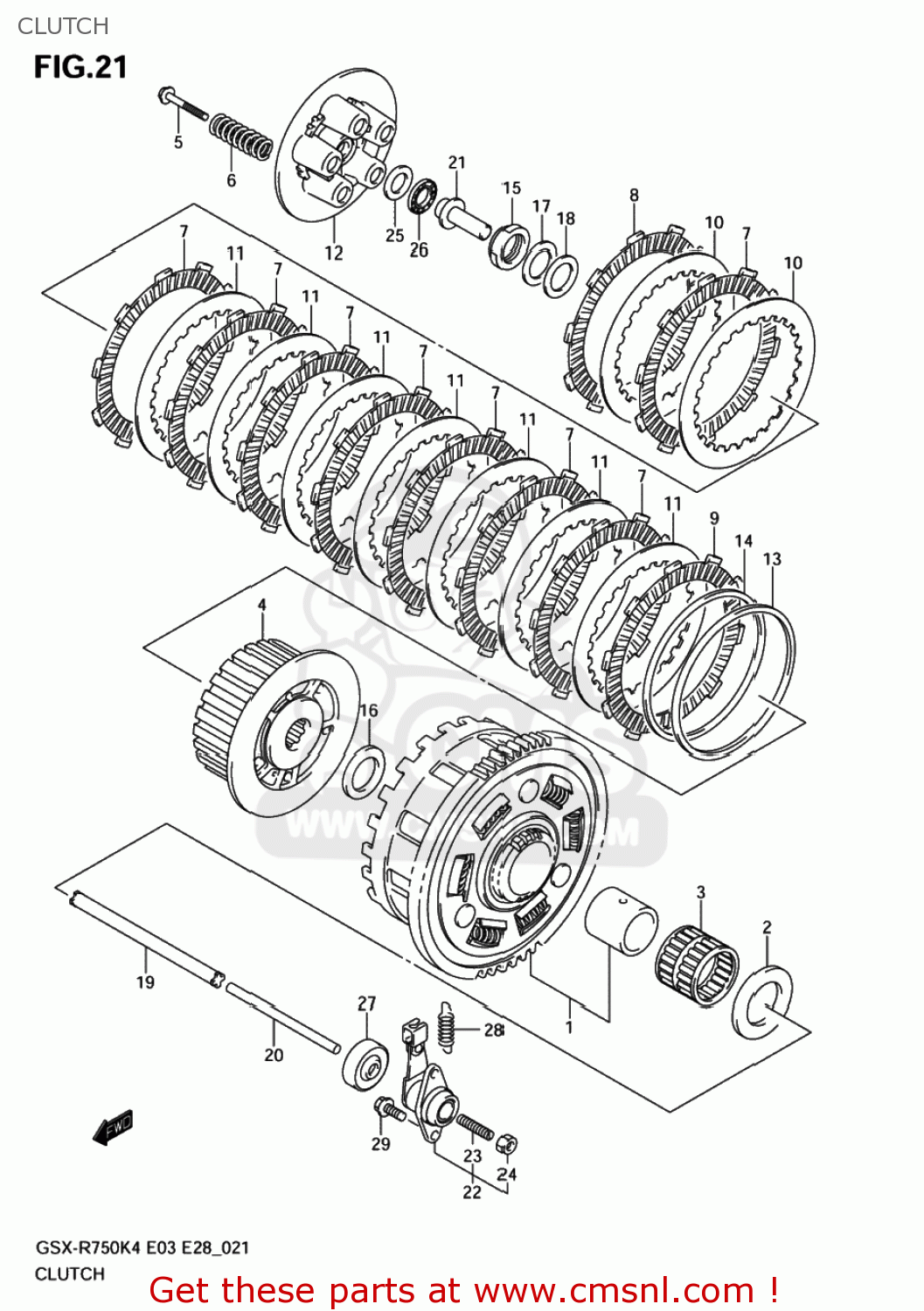

CLUTCH

ref

part #

description

quantity

1

2120035820
ref: 1

GEAR ASSY,PRIM

€ 353.50

2

0916025073
ref: 2

WASHER(25X54X2.4)

€ 8.50

3

0926335036
ref: 3

BEARING(35X40X29.8)

€ 23.50

4

2141035F00
ref: 4

HUB,CLUTCH SLEEVE

€ 140.50

5

2141235F00
ref: 5

BOLT,CLUTCH SPRING

€ 3.50

6

2141335F10
ref: 6

SPRING,CLUTCH

€ 6.50

7

2144131E50
ref: 7

PLATE,CLUTCH DRIVE NO.1 (NAS)

€ 21.00

8

2144131E60
ref: 8

PLATE,CLUTCH DRIVE (NAS)

€ 13.50

9

2144231E21
ref: 9

PLATE,CLUTCH DRIVE (NAS)

€ 19.00

10

2145131E00
ref: 10

PLATE,CLUTCH DRIVEN NO.1

€ 7.00

11

2145131E10
ref: 11

PLATE,CLUTCH DRIVEN NO.2

€ 7.50

12

2146235F00
ref: 12

DISC,CLUTCH PRESSURE

€ 40.00

13

2147131E20
ref: 13

SEAT,CLUTCH PLATE WAVE WASHER

€ 12.00

14

2147202F00
ref: 14

WASHER,CLUTCH PLATE WAVE

€ 18.00

15

0915924010
ref: 15

NUT

€ 11.00

16

0916025056
ref: 16

WASHER(25X50X2.5)

€ 9.50

17

0916424006
ref: 17

WASHER

€ 4.00

18

0918125223
ref: 18

SHIM(25X38X1)

€ 3.00

19

2311027A00
ref: 19

ROD,CLUTCH

€ 17.00

20

2311135F00
ref: 20

ROD,CLUTCH PUSH,L

€ 11.50

21

2312131E00
ref: 21

PIECE,CLUTCH PUSH

€ 18.50

22

2320035F01
ref: 22

SCREW ASSY,CLUTCH RELEASE

€ 55.50

23

0913406010
ref: 23

SCREW(6X25)

€ 3.00

24

0831000067
ref: 24

NUT

€ 2.50

25

0916015045
ref: 25

WASHER(15.5X28X1)

€ 4.00

26

0926315003
ref: 26

BEARING(15X28X2)

€ 7.00

27

0928506011
ref: 27

SEAL,OIL(6X34X10)

€ 9.50

28

0944309051
ref: 28

SPRING

€ 3.50

29

0155006163
ref: 29
01550-0616A

BOLT

€ 2.50

all assemblies
