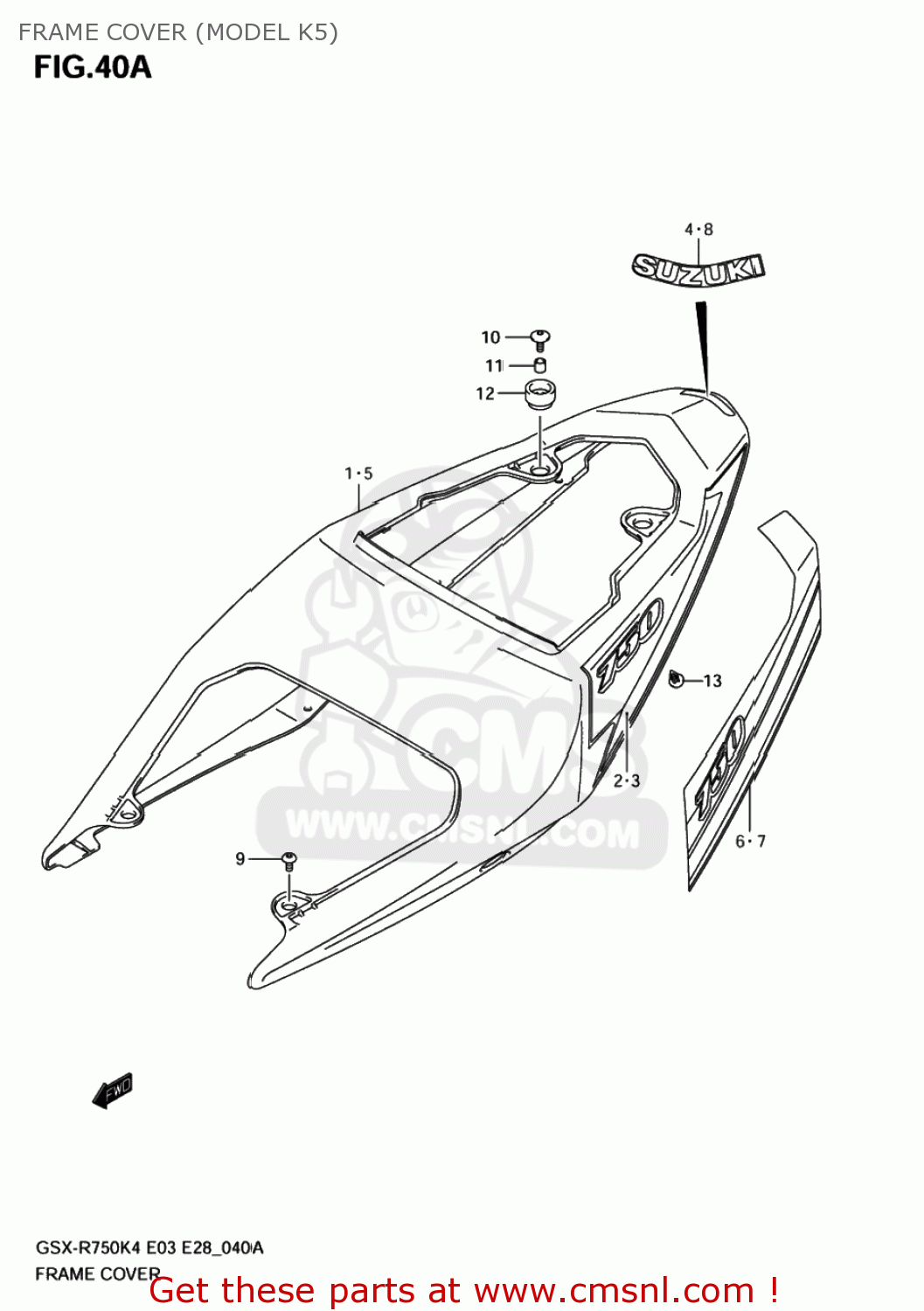

FRAME COVER (MODEL K5)

ref

part #

description

quantity

1-1

4710030G10YBA
ref: 1-1

COVER ASSY,FRAME(BLUE)

€ 1,274.00

1-2

4710030G104JX
ref: 1-2

COVER ASSY,FRAME(BLUE)

€ 390.00

1-3

4710030G10YEC
ref: 1-3

COVER ASSY,FRAME(YELLOW)

€ 390.00

2-1

6813530G10ATM
ref: 2-1

TAPE,FRAME COVER,R

€ 32.00

2-2

6813530G10BRA
ref: 2-2

TAPE,FRAME COVER,R

€ 29.00

2-3

6813530G10BRB
ref: 2-3

TAPE,FRAME COVER,R

€ 44.00

3-1

6814530G10ATM
ref: 3-1

TAPE,FRAME COVER,L

€ 32.00

3-2

6814530G10BRA
ref: 3-2

TAPE,FRAME COVER,L

€ 32.00

3-3

6814530G10BRB
ref: 3-3

TAPE,FRAME COVER,L

€ 32.50

4-1

6828004F00019
ref: 4-1

EMBLEM,SUZUKI(BLACK)

€ 16.00

4-2

6828004F00YD8
ref: 4-2

EMBLEM,SUZUKI

€ 16.00

5

4710030GA0YBB
ref: 5

COVER ASSY,FRAME(BLUE)

€ 1,114.50

6

6813530GA0BPU
ref: 6

TAPE,FRAME COVER,R

€ 37.50

7

6814530GA0BPU
ref: 7

TAPE,FRAME COVER,L

€ 39.00

8

6828004F00YBD
ref: 8

EMBLEM,SUZUKI

€ 16.00

9

0913906131
ref: 9

SCREW(6X16)

€ 4.00

10

0913906030
ref: 10

SCREW(6X16)

€ 3.50

11

0918006286
ref: 11

SPACER(6.5X10X9.4)

€ 2.50

12

0932010045
ref: 12

CUSHION

€ 3.50

13

09409063145PK
ref: 13

CLIP(BLACK)

€ 3.50
