OIL COOLER

GSXR750X 2005 (K5) USA (E03)

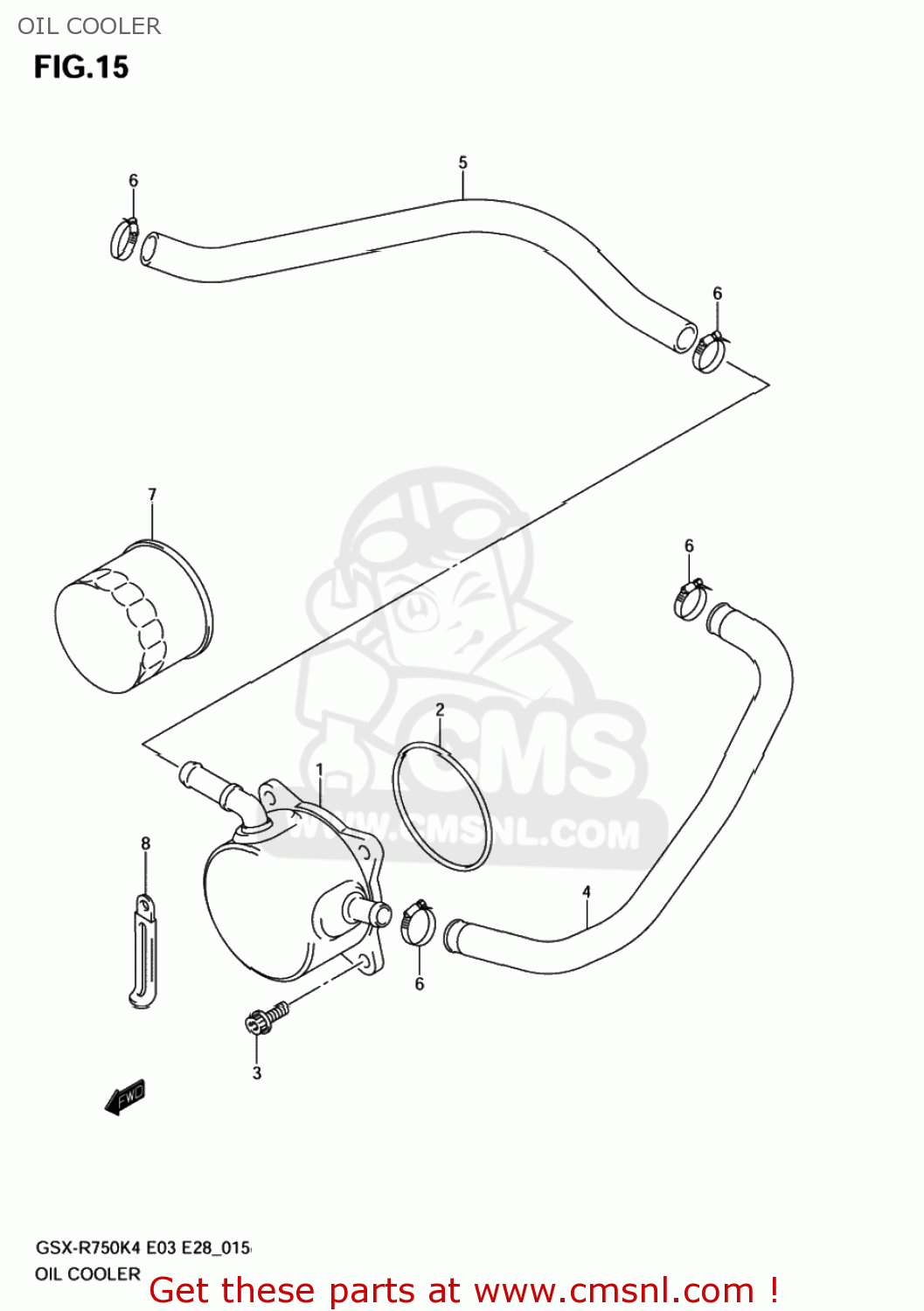

Oil cooler diagram GSXR750X 2005 (K5) USA (E03)

OIL COOLER GSXR750X 2005 (K5) USA (E03)

OIL COOLER GSXR750X 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1660029G00
ref: 1

COOLER ASSY,OIL

€ 529.00

2

0928064003
ref: 2

O RING(D:3.1,ID:63.9)

€ 5.00

3

0910606099
ref: 3

BOLT(6X16)

€ 2.50

4

1646135F00
ref: 4

HOSE,OIL COOLER WATER INLET

€ 22.00

5

1647130G00
ref: 5

HOSE,OIL COOLER WATER OUTLET

€ 18.50

6

0940222511
ref: 6

CLAMP

€ 6.00

7

1651003G00X07
ref: 7
16510-07J00

FILTER ASSY,EN

€ 12.50

8

0940406433
ref: 8

CLAMP(L:80)

€ 3.00
