SEAT TAIL BOX (GSX-R750K5)

GSXR750X 2005 (K5) USA (E03)

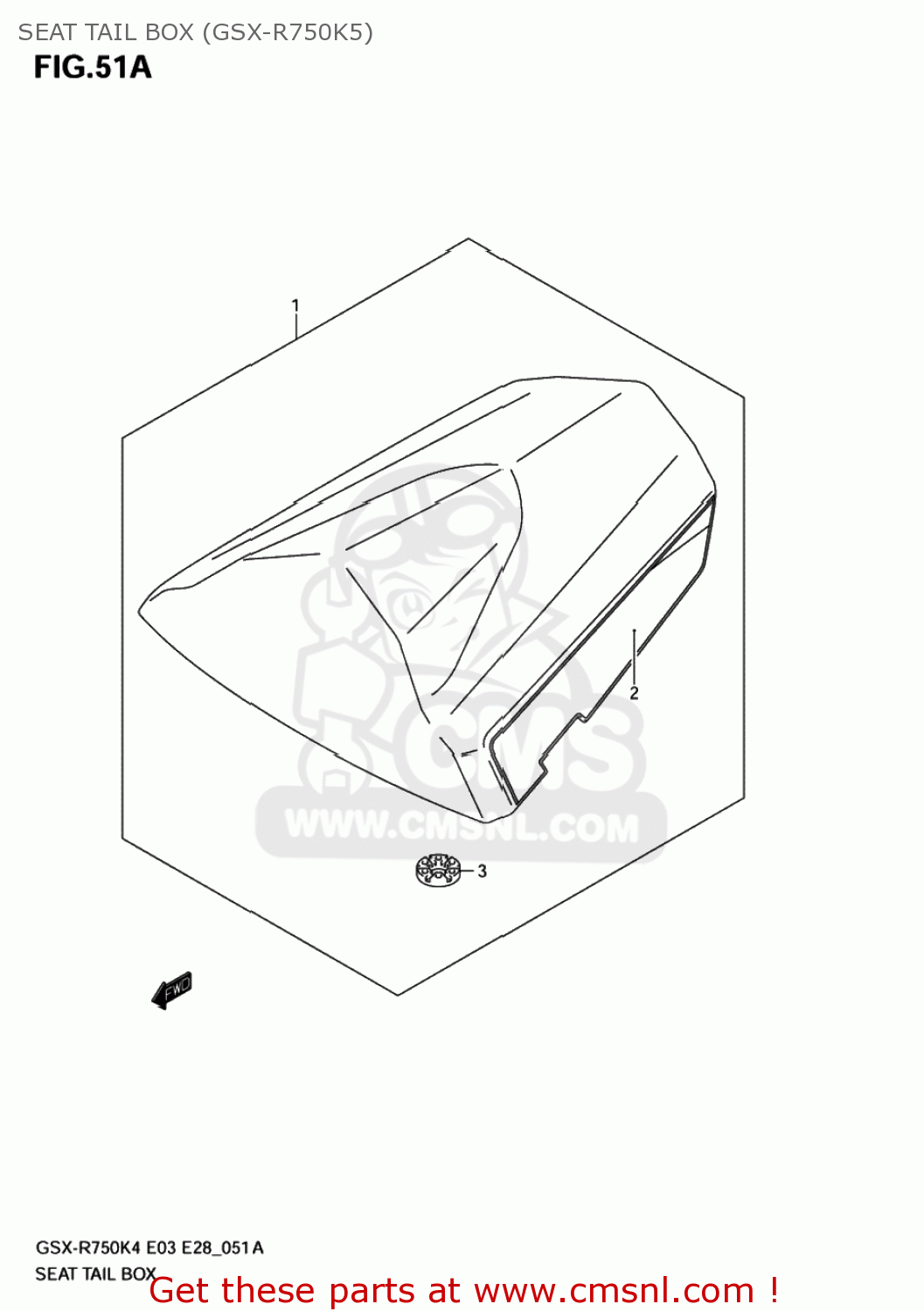

Seat tail box (gsx-r750k5) diagram GSXR750X 2005 (K5) USA (E03)

SEAT TAIL BOX (GSX-R750K5) GSXR750X 2005 (K5) USA (E03)

SEAT TAIL BOX (GSX-R750K5) GSXR750X 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4550030G10YBA
ref: 1-1

BOX ASSY,SEAT TAIL(BLUE)

€ 170.00

1-2

4550030G10YEC
ref: 1-2

BOX ASSY,SEAT TAIL(YELLOW)

€ 132.50

1-3

4550030G104JX
ref: 1-3

BOX ASSY,SEAT TAIL(BLUE)

€ 78.00

2-1

6816030G10LW8
ref: 2-1

TAPE SET,BOX SEAT TAIL

€ 16.00

2-2

6816030G10BRC
ref: 2-2

TAPE SET,BOX SEAT TAIL

€ 16.50

2-3

6816030G10BPY
ref: 2-3

TAPE SET,BOX SEAT TAIL

€ 19.50

3

4521331300
ref: 3

CUSHION

€ 1.50
