STEERING STEM
GSXR750X 2005 (K5) USA (E03)

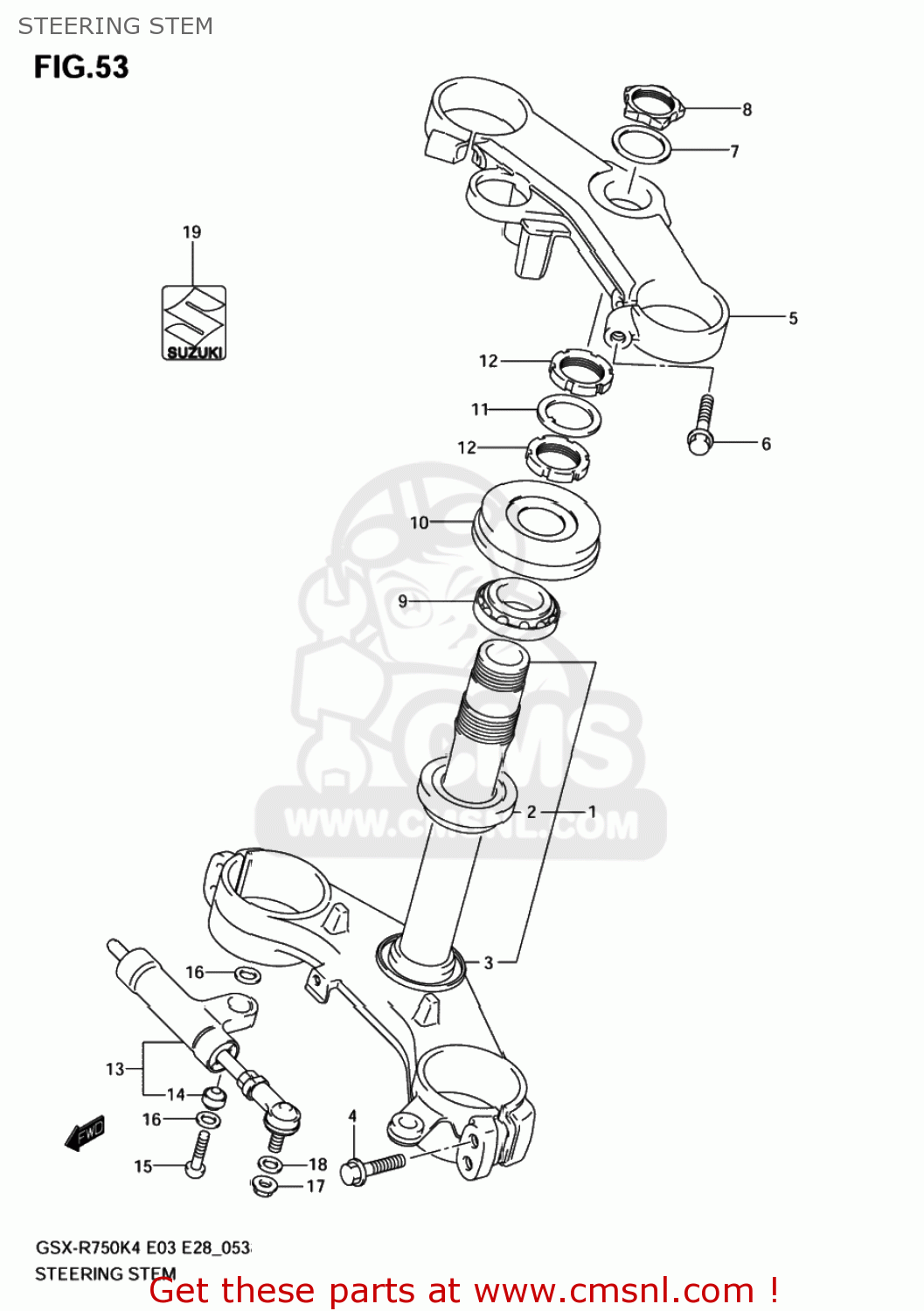

Steering stem diagram GSXR750X 2005 (K5) USA (E03)
STEERING STEM GSXR750X 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5141029G00
ref: 1
STEM,STEERING
€ 990.00
2
0926730010
ref: 2
BEARING(30X55X17)
€ 46.50
3
5164412C00
ref: 3
SEAL,STEERING LWR
€ 5.50
4
5132827E30
ref: 4
BOLT,HOLDER AXLE(8X40)
€ 2.50
5
5131129G00
ref: 5
HEAD,STEERING STEM
€ 412.50
6
5116635F00
ref: 6
BOLT
€ 6.50
7
5135442E00
ref: 7
WASHER
€ 14.50
8
5135335F00
ref: 8
NUT,STEM HEAD
€ 41.50
9
0926730010
ref: 9
BEARING(30X55X17)
€ 46.50
10
5164333E00
ref: 10
SEAL,STEERING UPR DUST
€ 12.50
11
5164133E00
ref: 11
WASHER,STEERING STEM
€ 3.00
12
5163133E00
ref: 12
NUT,STEERING STEM
€ 12.00
13
5175040F60
ref: 13
DAMPER ASSY,STEERING
€ 669.50
14
0926908003
ref: 14
BEARING(8X17.5X11)
€ 39.50
15
0910608130
ref: 15
BOLT(8X35)
€ 4.50
16
6433914101
ref: 16
SEAL,PILLOW BALL,DUST
€ 4.50
17
0831931088
ref: 17
08319-3108A
NUT
€ 2.50
18
0916008059
ref: 18
WASHER(8.5X18X1.6)
€ 2.00
19
6828135F00
ref: 19
EMBLEM,S
€ 13.00
