REAR WHEEL (GSX-R750XK5)
GSXR750X 2005 (K5) USA (E03)

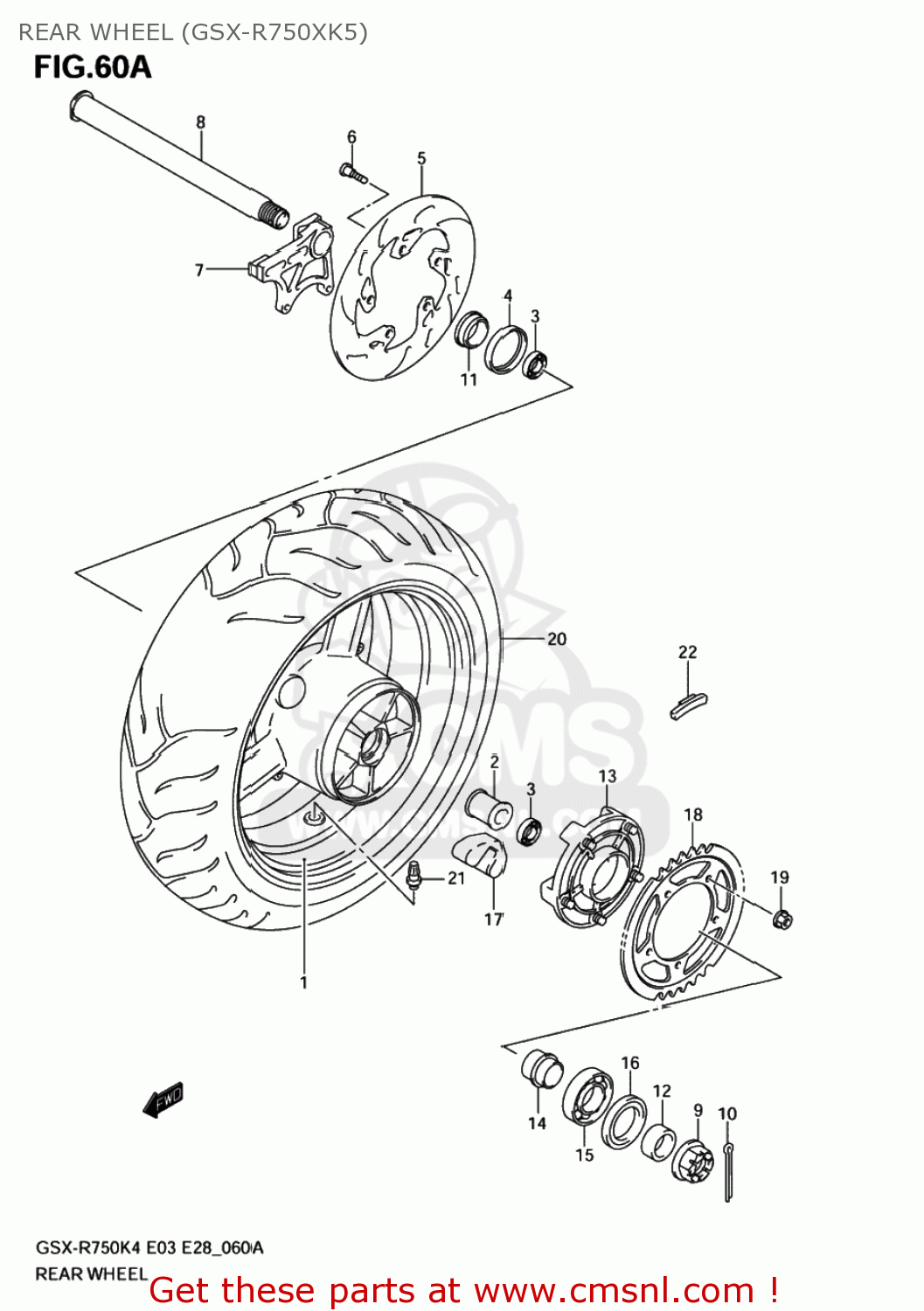

Rear wheel (gsx-r750xk5) diagram GSXR750X 2005 (K5) USA (E03)
REAR WHEEL (GSX-R750XK5) GSXR750X 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411135F01019
ref: 1
WHEEL,RR(17M/CXMT5.50)
€ 850.00
1
6411135F01019
ref: 1
WHEEL,RR(17M/CXMT5.50)
€ 850.00
2
6473135F10
ref: 2
SPACER,RR HUB BEARING
€ 40.00
3
0926228043
ref: 3
BEARING(28X52X12)
€ 22.50
4
0928437001
ref: 4
SEAL,OIL(37X52X8)
€ 9.00
5
6921129G00
ref: 5
DISC,RR BRAKE
€ 153.50
6
0910608148
ref: 6
BOLT(8X33)
€ 6.00
7
6972129G00
ref: 7
BRACKET,RR CALIPER
€ 112.50
8
6471133E10
ref: 8
AXLE,RR
€ 129.00
9
0914125001
ref: 9
NUT
€ 25.00
10
0411140408
ref: 10
04111-4040A
PIN, COTTER
€ 2.00
11
6474135F00
ref: 11
SPACER,RR AXLE,R
€ 9.00
12
6475135F00
ref: 12
SPACER,RR AXLE,L
€ 25.50
13
6461035F30
ref: 13
DRUM,RR SPROCKET
€ 219.00
14
6473335F00
ref: 14
RETAINER,RR SPROCKET DRUM
€ 21.50
15
0926232007
ref: 15
09262-32022
BEARING
€ 49.00
16
0928539001
ref: 16
SEAL,OIL(39X65X7)
€ 9.00
17
6465135F10
ref: 17
ABSORBER,RR HUB SHOCK
€ 10.50
18
6451135F50
ref: 18
SPROCKET,RR(43T-525)
€ 91.50
19
0831931107
ref: 19
NUT
€ 3.00
20
6511030G10
ref: 20
TIRE, REAR,180/55 ZR17M/C
€ 0.00
20
6511030G10
ref: 20
TIRE, REAR,180/55 ZR17M/C
€ 0.00
21
4313024A00
ref: 21
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
22-1
4322273H10
ref: 22-1
WEIGHT,WHEEL BALANCE 10G
€ 4.00
22-2
4322473H10
ref: 22-2
WEIGHT,WHEEL BALANCE 20G
€ 5.00
22-3
4322673H10
ref: 22-3
WEIGHT,WHEEL BALANCE 30G
€ 6.00
