FRAME

GSXR750X 2005 (K5) USA (E03)

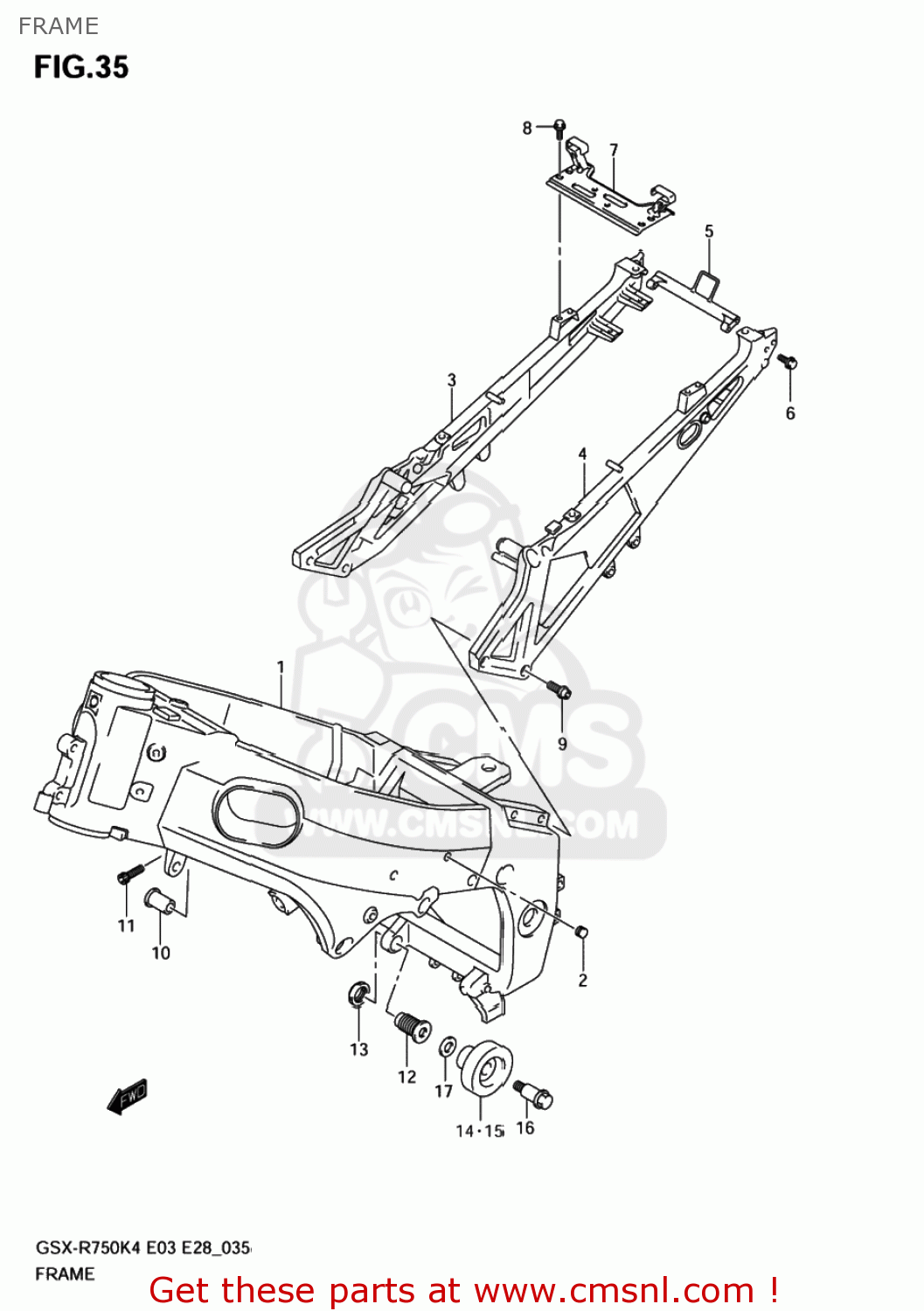

Frame diagram GSXR750X 2005 (K5) USA (E03)

FRAME GSXR750X 2005 (K5) USA (E03)

FRAME GSXR750X 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4110030G00YAP
ref: 1

FRAME(BLACK)

€ 1,530.00

2

4358529G00
ref: 2

CAP,TANK RAIL

€ 10.50

3

4121129G00
ref: 3

RAIL,SEAT,R

€ 475.50

4

4122129G00
ref: 4

RAIL,SEAT,L

€ 368.00

5

4123129G00
ref: 5

HOOK,PILLION SEAT

€ 61.50

6

0910308288
ref: 6

BOLT(8X25)

€ 2.50

7

4177029G00
ref: 7

BRIDGE,SEAT RAIL

€ 106.50

8

0910306083
ref: 8
09103-06285

BOLT 6X12

€ 2.50

9

4123318G00
ref: 9

BOLT,SEAT RAIL

€ 7.50

10

4191140F01
ref: 10

SPACER,ENGINE MOUNTING

€ 16.50

11

0910608170
ref: 11

BOLT(8X32)

€ 3.00

12

4192135F00
ref: 12

BOLT,CRANK CASE ADJUST

€ 35.00

13

4192218G00
ref: 13

NUT,ADJUST BOLT

€ 23.50

14

4193129G00
ref: 14

GUARD,FRAME,R

€ 19.50

15

4194129G00
ref: 15

GUARD,FRAME,L

€ 19.50

16

0911108085
ref: 16

BOLT(8X35.5)

€ 5.50

17

0916008092
ref: 17
09160-08144

WASHER (8.5X16X2.6)

€ 2.00
