REAR FENDER

GSXR750X 2005 (K5) USA (E03)

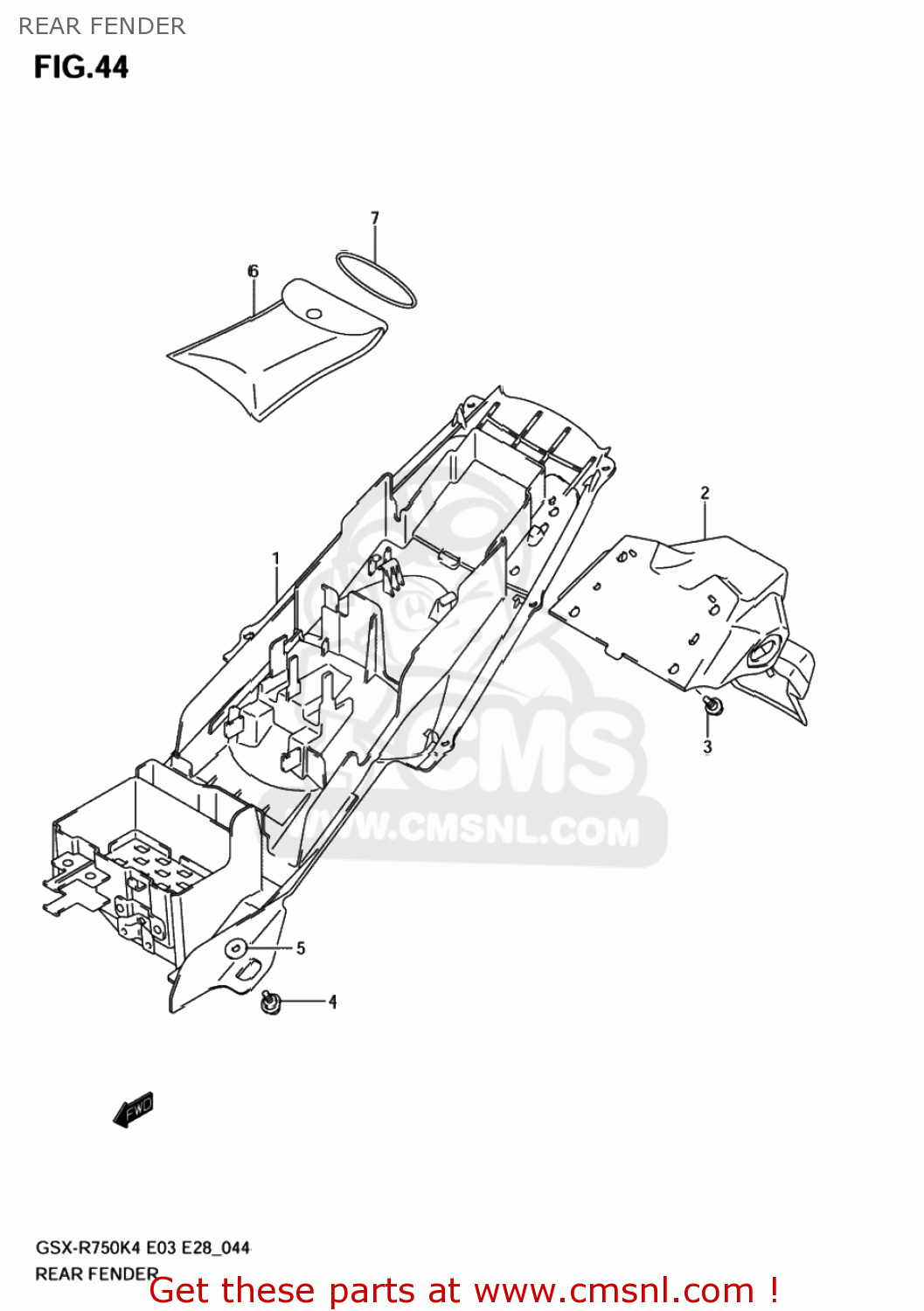

Rear fender diagram GSXR750X 2005 (K5) USA (E03)

REAR FENDER GSXR750X 2005 (K5) USA (E03)

REAR FENDER GSXR750X 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6311129G10291
ref: 1

FENDER,RR FR

€ 99.00

2

6311229G10291
ref: 2

FENDER,RR RR

€ 41.50

3

0913906137
ref: 3

SCREW(6X16)

€ 2.50

4

0911106081
ref: 4

BOLT(6X18)

€ 4.50

5

0832201063
ref: 5
08322-0106B

WASHER

€ 2.00

6

0980021039
ref: 6

TOOL ASSY

€ 73.00

7

0928061002
ref: 7

O RING(D:3.5,ID:61)

€ 5.00
