SEAT

GSXR750X 2005 (K5) USA (E03)

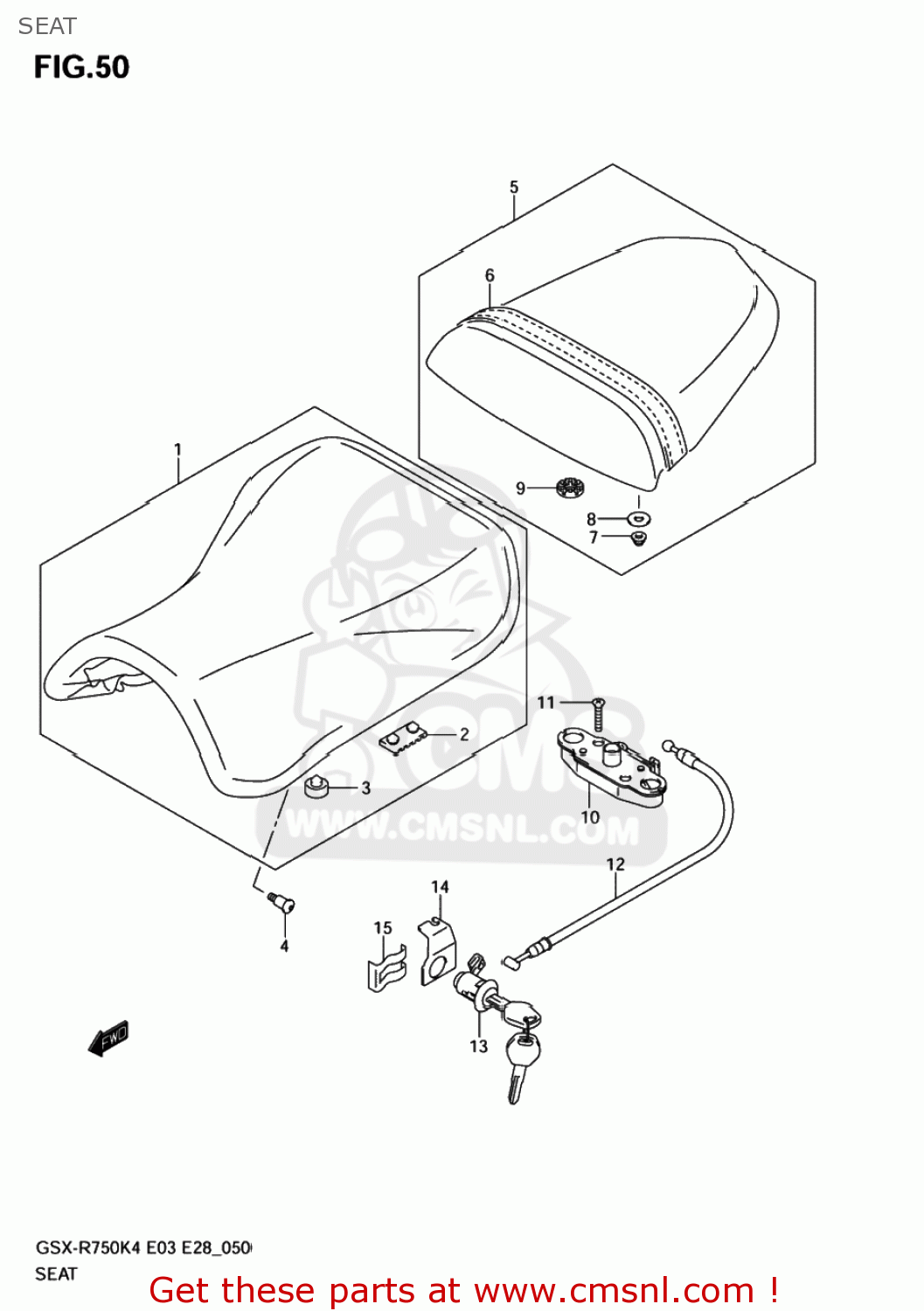

Seat diagram GSXR750X 2005 (K5) USA (E03)

SEAT GSXR750X 2005 (K5) USA (E03)

SEAT GSXR750X 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4510029G006BY
ref: 1-1

SEAT ASSY

€ 151.50

1-2

4510029G00V45
ref: 1-2

SEAT ASSY(BLUE)

€ 156.50

2

4514912C00
ref: 2

CUSHION,SEAT(40X20X6)

€ 3.00

3

0932108009
ref: 3

CUSHION

€ 4.00

4

0913906138
ref: 4

SCREW(6X22)

€ 3.00

5-1

4530029G006BY
ref: 5-1

SEAT ASSY,PILLION

€ 151.50

5-2

4530029G00V45
ref: 5-2

SEAT ASSY,PILLION

€ 156.50

6-1

4518029G006BY
ref: 6-1

BAND ASSY

€ 118.00

6-2

4518029G00V45
ref: 6-2

BAND ASSY,SEAT

€ 40.00

7

0831931063
ref: 7
08319-3106A

NUT

€ 2.50

8

0916006088
ref: 8

WASHER(6.5X20X1.6)

€ 2.00

9

4521331300
ref: 9

CUSHION

€ 1.50

10

4522020A01
ref: 10
45220-47H00

BRACKET,SEAT SUPPORT,RIGHT

€ 79.50

11

0212206303
ref: 11
02122-0630B

SCREW

€ 2.00

12

4528013A01
ref: 12

CABLE,SEAT LOCK

€ 11.00

13

9570014810
ref: 13

LOCK SET,SEAT

€ 75.50

14

4528814F00
ref: 14

GUIDE,SEAT LOCK CABLE

€ 3.00

15

4528911F00
ref: 15

PLATE,SEAT LOCK ASSY

€ 3.00
