CYLINDER HEAD COVER

GSXR750X 2005 (K5) USA (E03)

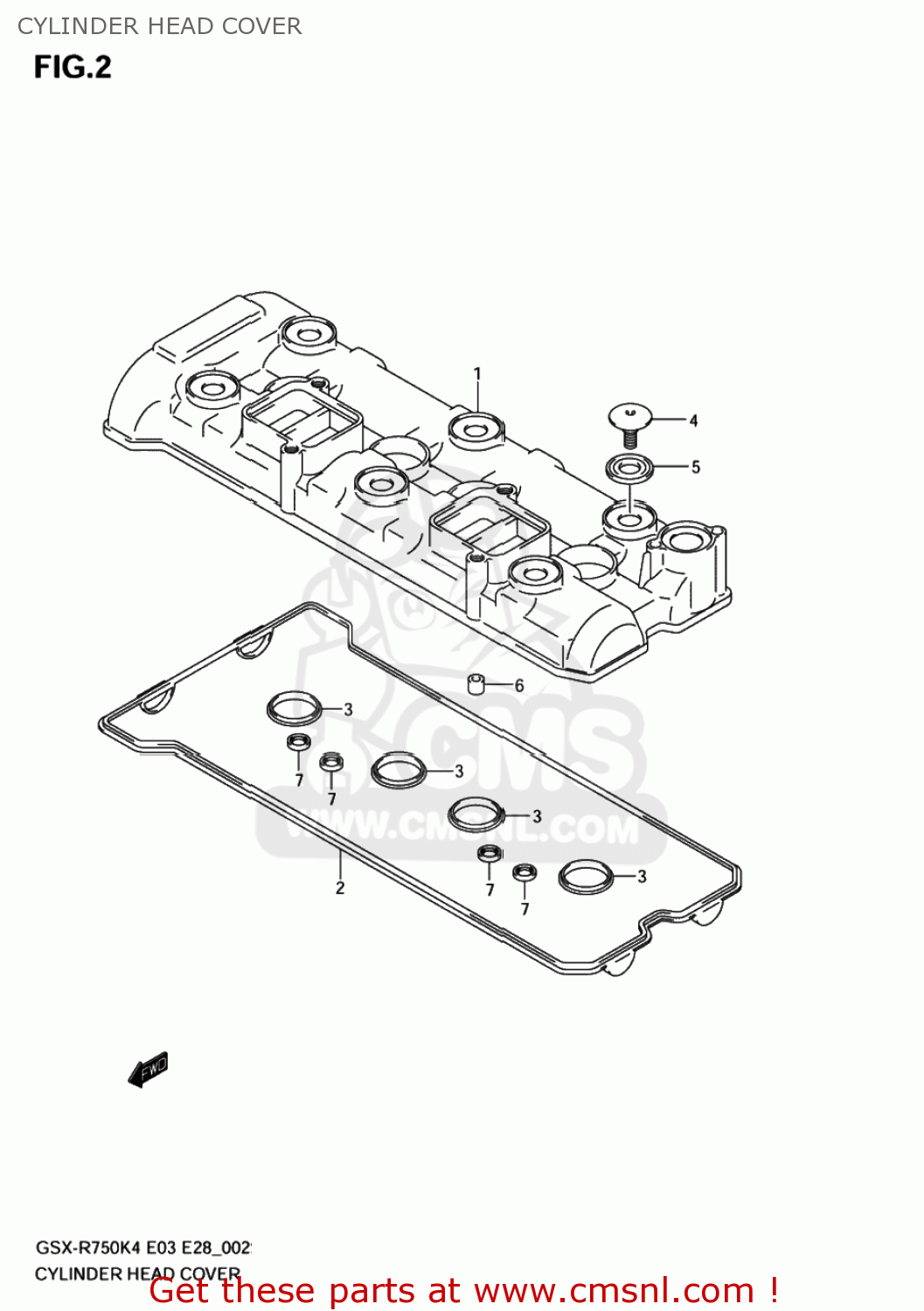

Cylinder head cover diagram GSXR750X 2005 (K5) USA (E03)

CYLINDER HEAD COVER GSXR750X 2005 (K5) USA (E03)

CYLINDER HEAD COVER GSXR750X 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1117135F00
ref: 1

COVER,CYLINDER HEAD

€ 387.00

2

1117335F00
ref: 2

GASKET,CYL HEAD COVER NO.1 (NAS)

€ 39.00

3

1117833E00
ref: 3

GASKET,CYL HEAD COVER NO.2

€ 5.50

4

0910607009
ref: 4

BOLT(7X17.5)

€ 4.50

5

0916111008
ref: 5

WASHER(10.6X25.5X2.3)

€ 4.50

6

0920608007
ref: 6

PIN(6.2X8X16)

€ 2.50

7

1118235F00
ref: 7

GASKET,2ND AIR PASSAGE (NAS)

€ 4.00
