SEAT TAIL BOX (GSX-R750K4)

GSXR750X 2005 (K5) USA (E03)

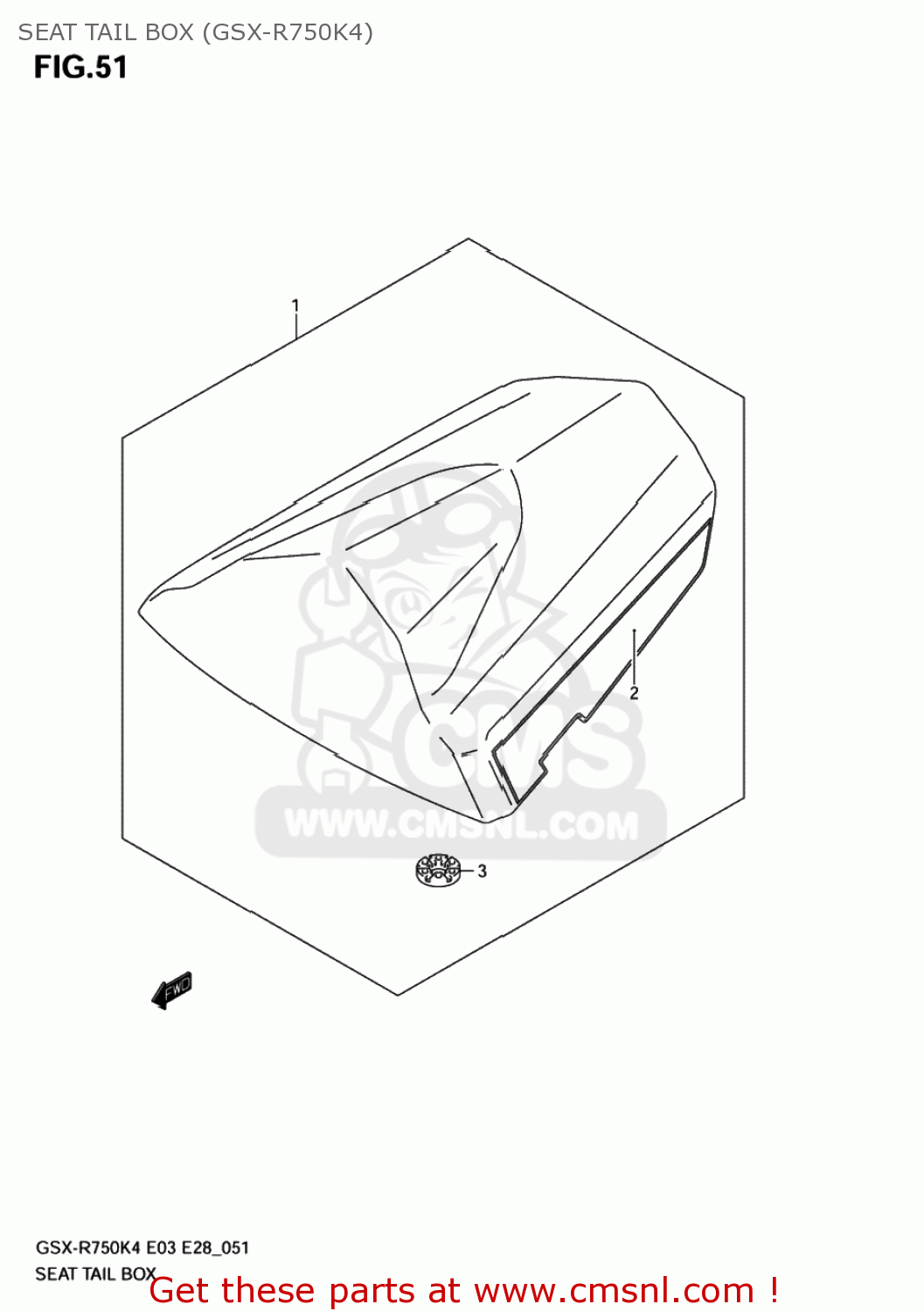

Seat tail box (gsx-r750k4) diagram GSXR750X 2005 (K5) USA (E03)

SEAT TAIL BOX (GSX-R750K4) GSXR750X 2005 (K5) USA (E03)

SEAT TAIL BOX (GSX-R750K4) GSXR750X 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4550030G00YBD
ref: 1-1

BOX ASSY,SEAT TAIL(WHITE)

€ 151.00

1-2

4550030G00YEC
ref: 1-2

BOX ASSY,SEAT TAIL(YELLOW)

€ 135.00

1-3

4550030G00YU8
ref: 1-3

BOX ASSY,SEAT TAIL(GRAY)

€ 127.00

2-1

6816030G00LR5
ref: 2-1

TAPE SET,BOX SEAT TAIL

€ 18.50

2-2

6816030G00AGN
ref: 2-2

TAPE SET,BOX SEAT TAIL

€ 13.50

2-3

6816030G00AGR
ref: 2-3

TAPE SET,BOX SEAT TAIL

€ 13.50

3

4521331300
ref: 3

CUSHION

€ 1.50
