TURN SIGNAL LAMP
GSXR750X 2005 (K5) USA (E03)

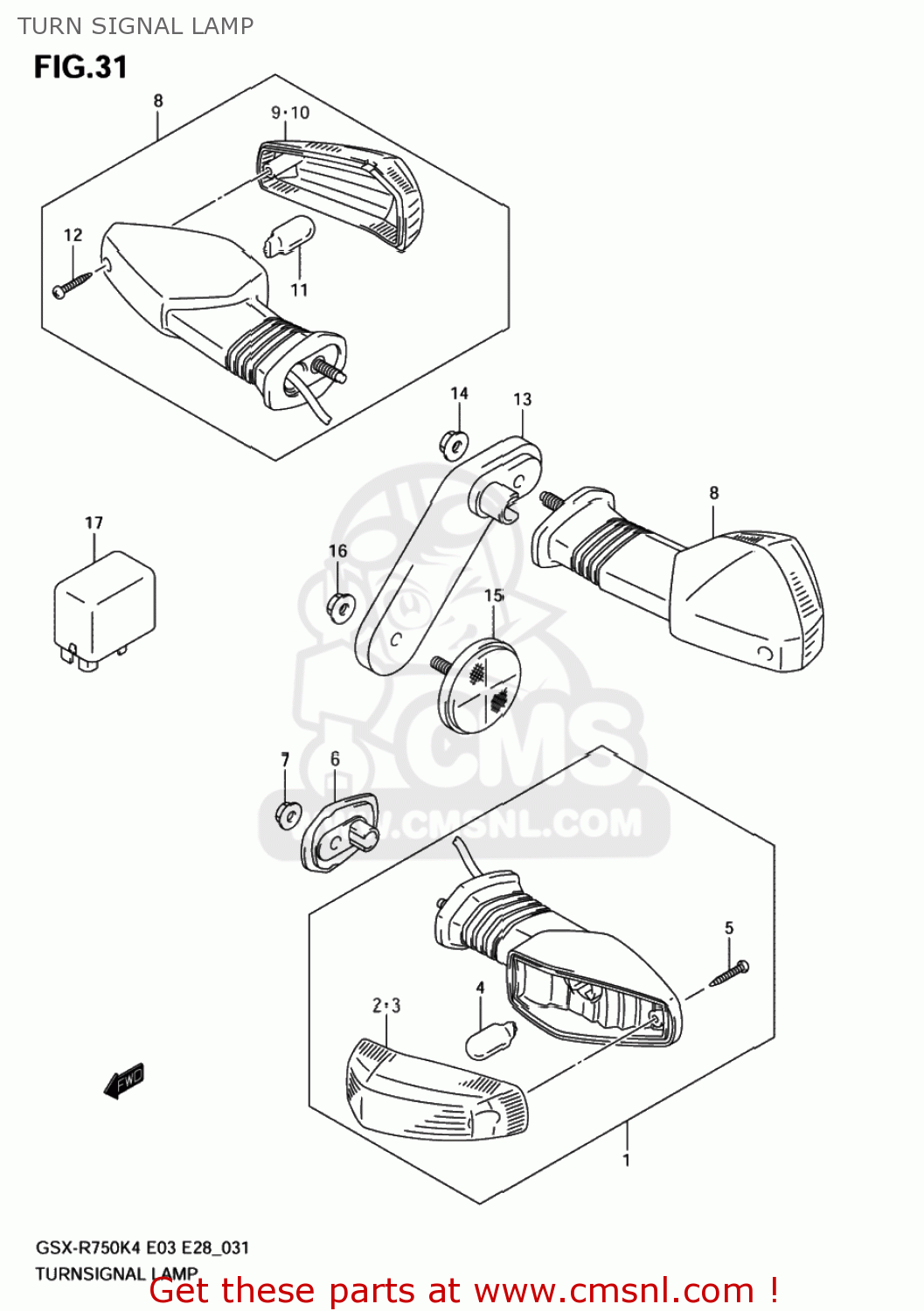

Turn signal lamp diagram GSXR750X 2005 (K5) USA (E03)
TURN SIGNAL LAMP GSXR750X 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3560129G10
ref: 1-1
LAMP ASSY,FR TURN SIGNAL,R
€ 108.00
1-2
3560229G10
ref: 1-2
LAMP ASSY,FR TURN SIGNAL,L
€ 103.50
2
3561218G01
ref: 2
LENS
€ 18.00
3
3563218G01
ref: 3
LENS
€ 18.00
4
3522218G00
ref: 4
BULB(12V18W)
€ 5.50
5
3572540511
ref: 5
SCREW
€ 1.50
6
3562918G00
ref: 6
PLATE,FR TURNSIGNAL
€ 2.00
7
0831610053
ref: 7
08316-1005A
NUT
€ 2.50
8-1
3560329G40
ref: 8-1
LAMP ASSY,RR TURNSIGNAL,R
€ 102.50
8-2
3560429G40
ref: 8-2
LAMP ASSY,RR TURNSIGNAL,L
€ 102.00
9
3563218G01
ref: 9
LENS
€ 18.00
10
3561218G01
ref: 10
LENS
€ 18.00
11
3522218G00
ref: 11
BULB(12V18W)
€ 5.50
12
3572540511
ref: 12
SCREW
€ 1.50
13-1
3566918G00
ref: 13-1
PLATE,RR TURN SIGNAL,R
€ 6.00
13-2
3567918G00
ref: 13-2
PLATE,RR TURN SIGNAL,L
€ 6.00
14
0831610053
ref: 14
08316-1005A
NUT
€ 2.50
15
3597014A20
ref: 15
REFLECTOR ASSY,RR SIDE
€ 11.00
16
0831610053
ref: 16
08316-1005A
NUT
€ 2.50
17
3861007F00
ref: 17
RELAY ASSY,TURNSIGNAL
€ 121.50
