FRAME COVER (MODEL K4)

GSXR750X 2005 (K5) USA (E03)

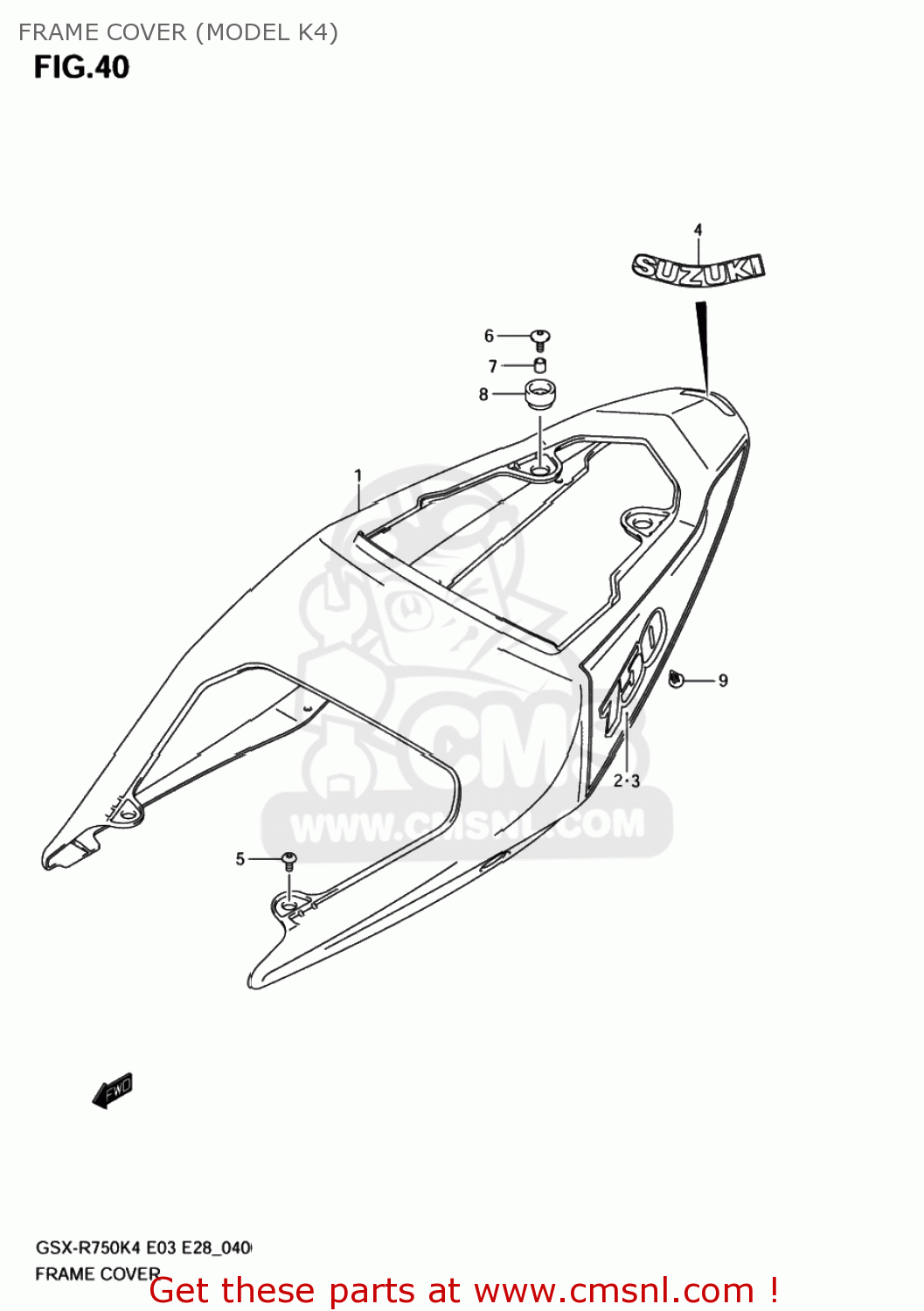

Frame cover (model k4) diagram GSXR750X 2005 (K5) USA (E03)

FRAME COVER (MODEL K4) GSXR750X 2005 (K5) USA (E03)

FRAME COVER (MODEL K4) GSXR750X 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4710030G00YBD
ref: 1-1

COVER ASSY,FRAME(WHITE)

€ 1,214.50

1-2

4710030G00YEC
ref: 1-2

COVER ASSY,FRAME(YELLOW)

€ 174.50

1-3

4710030G00YU8
ref: 1-3

COVER ASSY,FRAME(GRAY)

€ 405.50

2-1

6813530G00AYE
ref: 2-1

TAPE,FRAME COVER,R

€ 38.50

2-2

6813530G00AVH
ref: 2-2

TAPE,FRAME COVER,R

€ 38.50

2-3

6813530G00AKS
ref: 2-3

TAPE,FRAME COVER,R

€ 34.00

3-1

6814530G00AYE
ref: 3-1

TAPE,FRAME COVER,L

€ 49.50

3-2

6814530G00AVH
ref: 3-2

TAPE,FRAME COVER,L

€ 35.00

3-3

6814530G00AKS
ref: 3-3

TAPE,FRAME COVER,L

€ 44.50

4-1

6828004F00019
ref: 4-1

EMBLEM,SUZUKI(BLACK)

€ 16.00

4-2

6828004F00YD8
ref: 4-2

EMBLEM,SUZUKI

€ 16.00

5

0913906131
ref: 5

SCREW(6X16)

€ 4.00

6

0913906030
ref: 6

SCREW(6X16)

€ 3.50

7

0918006286
ref: 7

SPACER(6.5X10X9.4)

€ 2.50

8

0932010045
ref: 8

CUSHION

€ 3.50

9

09409063145PK
ref: 9

CLIP(BLACK)

€ 3.50
