ELECTRICAL
GSXR750X 2005 (K5) USA (E03)

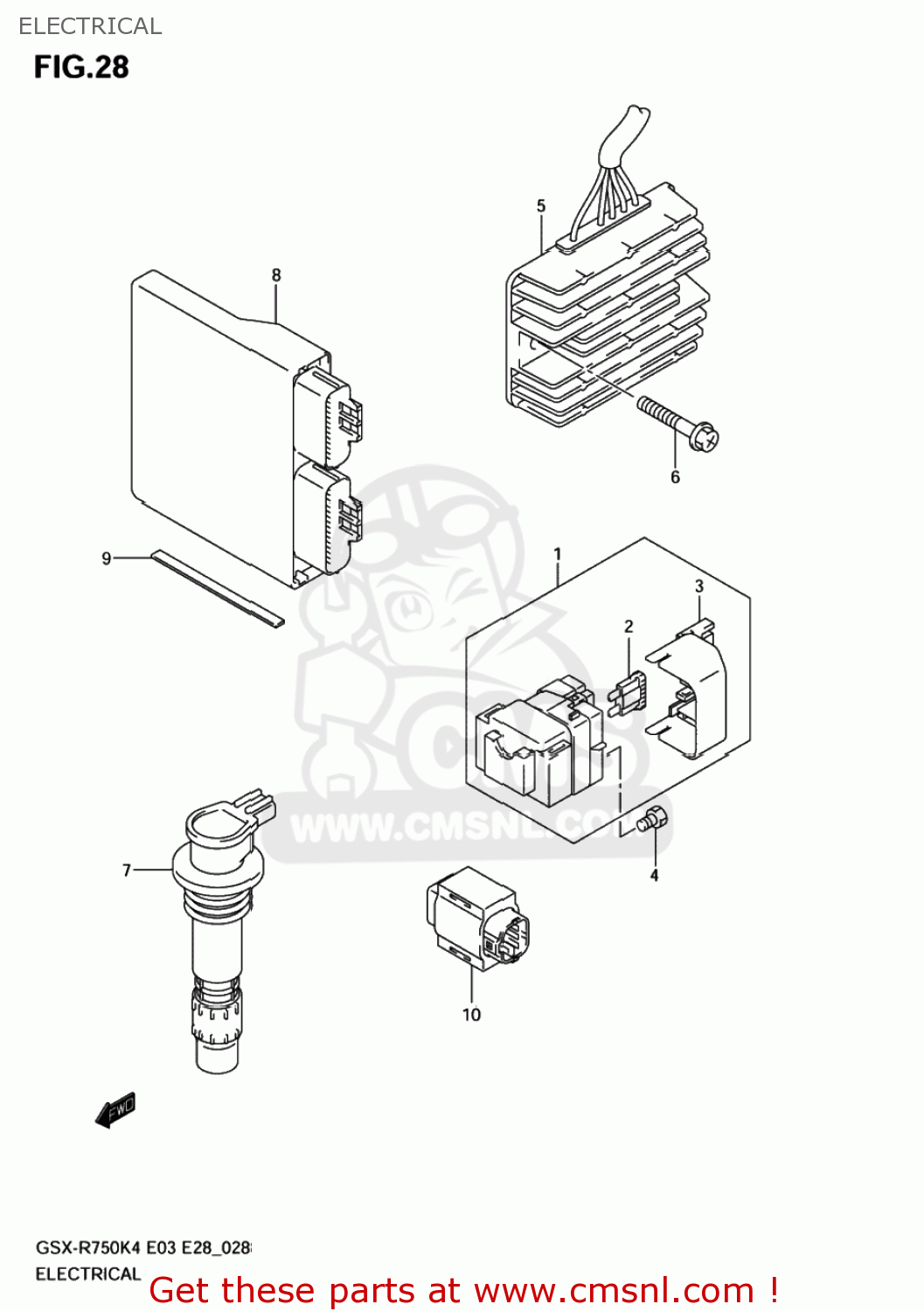

Electrical diagram GSXR750X 2005 (K5) USA (E03)
ELECTRICAL GSXR750X 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180035F00
ref: 1
RELAY ASSY,STARTING MOTOR
€ 113.50
2
0948130101
ref: 2
FUSE(30A)
€ 6.00
3
3186126E00
ref: 3
COVER,STARTER RELAY
€ 3.50
4
0912806013
ref: 4
SCREW(6X8)
€ 1.50
5
3280033E20
ref: 5
32800-33E21
RECTIFIER ASY
€ 371.00
6
0216206253
ref: 6
02162-0625A
SCREW
€ 1.50
7
3341035F10
ref: 7
COIL ASSY,IGNITION
€ 122.50
8
3292030G20
ref: 8
CONTROL UNIT,FI
€ 0.00
9
3365242F00
ref: 9
CUSHION(130X10X2)
€ 3.00
10
3396006G00
ref: 10
SENSOR ASSY,FUEL CUT
€ 112.00
