BATTERY

GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

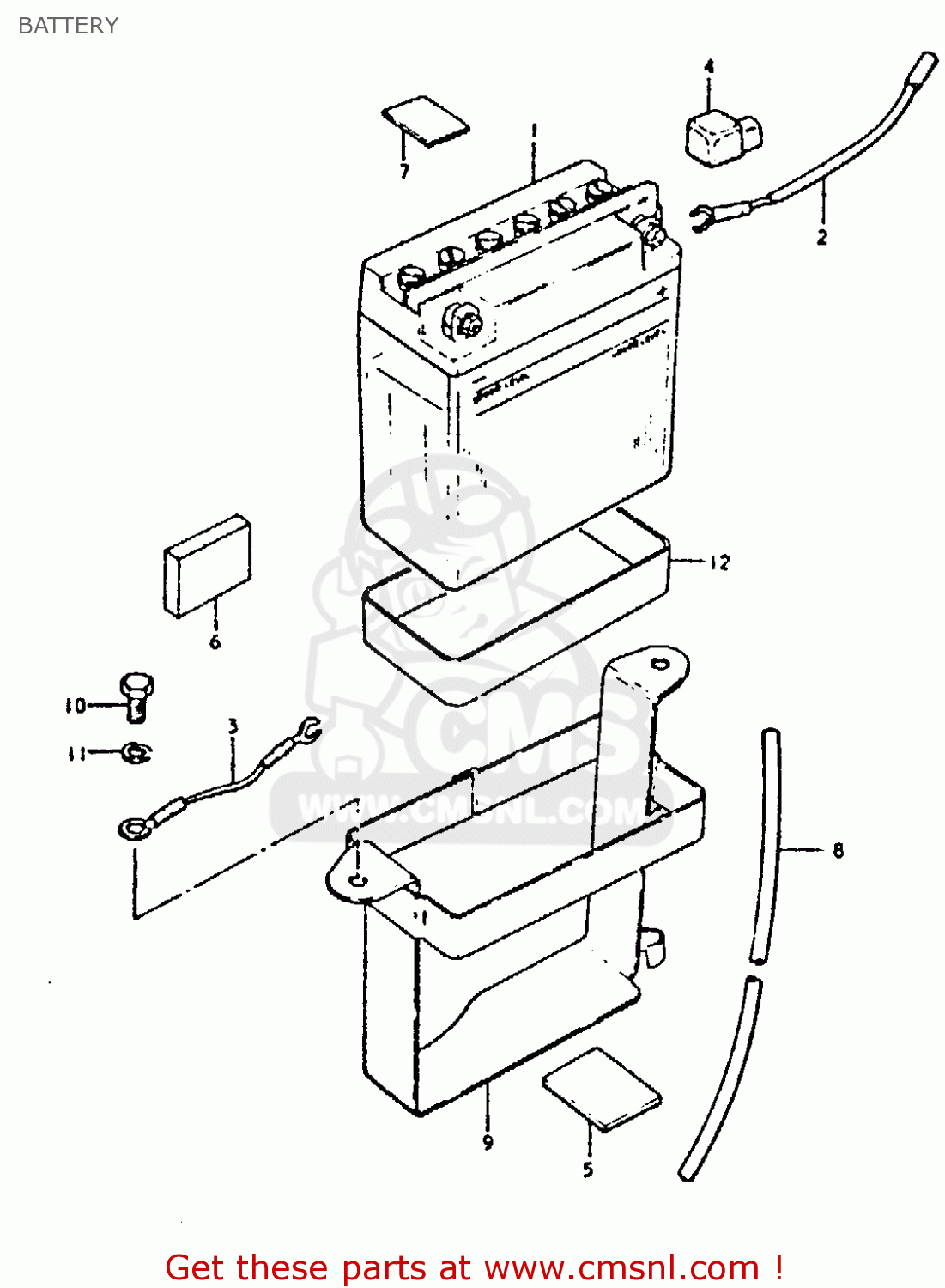

Battery diagram GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

BATTERY GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

BATTERY GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

prices are in EUR

ref

part #

description

quantity

1

3361018010
ref: 1

BATTERY ASSEMBLY (12V)

€ 62.00

2

3686111300
ref: 2

LEAD WIRE, BATTERY (+)

€ 16.50

3

3685111310
ref: 3

LEAD WIRE, (-)

€ 6.00

4

3362411300
ref: 4
MODEL N

CAP,BATTERY PLUS TERMINAL

€ 3.00

5

3365137000
ref: 5

PROTECTOR(170X95X3.0)

€ 5.00

6

3365137000
ref: 6

PROTECTOR(170X95X3.0)

€ 5.00

7

3365211300
ref: 7

PROTECTOR, NO. 3 (40*30*2)

€ 0.00

8

3368031003
ref: 8

HOSE,BATTERY EXHAUST

€ 4.50

9

4154011300
ref: 9

HOLDER, BATTERY

€ 29.50

10

0110706128
ref: 10

BOLT

€ 2.00

11

0832121068
ref: 11

LOCK WASHER

€ 2.50

12

3365111300
ref: 12

BAND

€ 0.00
