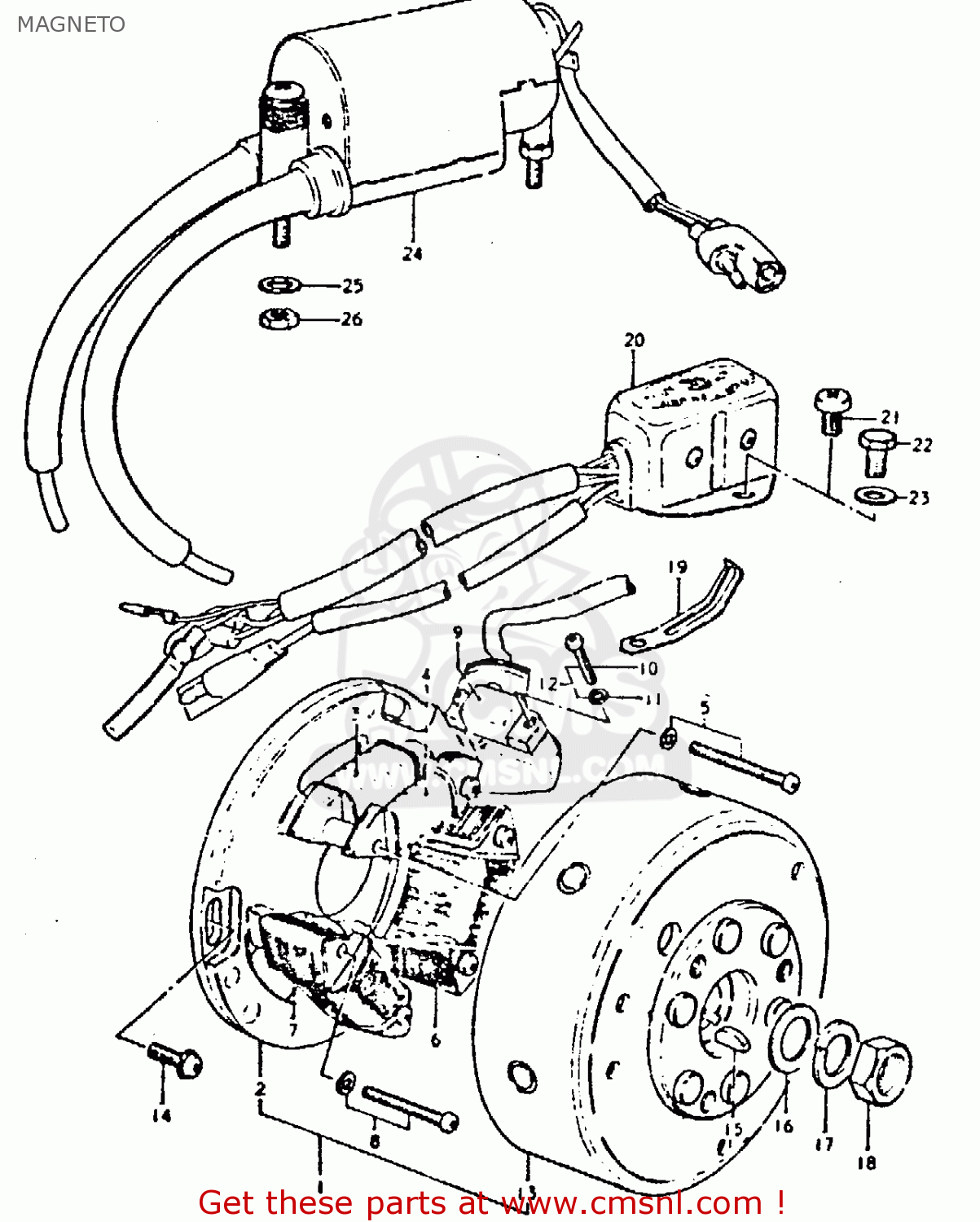

MAGNETO

ref

part #

description

quantity

1

3210011320
ref: 1

MAGNETO ASSY

€ 0.00

2

3210111320
ref: 2

STARTER ASSY

€ 0.00

3

3214215320
ref: 3

COIL ASSY,PRIMARY NO.2

€ 120.00

4

3214115320
ref: 4

COIL ASSY,PRIMARY NO.1

€ 120.00

5

3235111320
ref: 5

SCREW

€ 0.00

6

3213215320
ref: 6

COIL

€ 112.00

7

3213115320
ref: 7

COIL ASSY,CHARGING NO.1

€ 112.00

8

3235111310
ref: 8

SCREW

€ 0.00

9

3215011320
ref: 9

COIL, PUISER

€ 64.00

10

0211204258
ref: 10
MODEL N

SCREW 4X25

€ 2.00

11

0832121048
ref: 11
MODEL N

LOCK WASHER

€ 2.00

12

3235111330
ref: 12
MODEL X

SCREW

€ 0.00

13

3210211320
ref: 13

ROTOR

€ 164.50

14

0913905011
ref: 14

SCREW(5X14)

€ 3.00

15

0834131039
ref: 15

KEY

€ 2.00

16

0832211128
ref: 16

WASHER

€ 2.00

17

0832121128
ref: 17

WASHER,LOCK 12

€ 2.50

18

0831012128
ref: 18

NUT

€ 3.00

19

0940406401
ref: 19

CLAMP L:35

€ 2.50

20-1

3290015320
ref: 20-1
TO 32900-15321 USED

CDI UNIT

€ 509.00

20-2

3290015321
ref: 20-2
WITH RUBBER BUSH

CDI UNIT

€ 509.00

21

0211206088
ref: 21

SCREW

€ 2.00

22

0110706168
ref: 22

BOLT, UPPER

€ 3.00

23

0916006042
ref: 23

WASHER (6.5X17X1.6)

€ 2.00

24

3341015321
ref: 24

COIL ASSY,IGNITION

€ 589.50

25

0832221068
ref: 25

WASHER

€ 2.00

26

0831011068
ref: 26

NUT

€ 2.50

all assemblies
