Buy Suzuki GT Parts Online


RIGHT HANDLE SWITCH (MODEL X)

GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

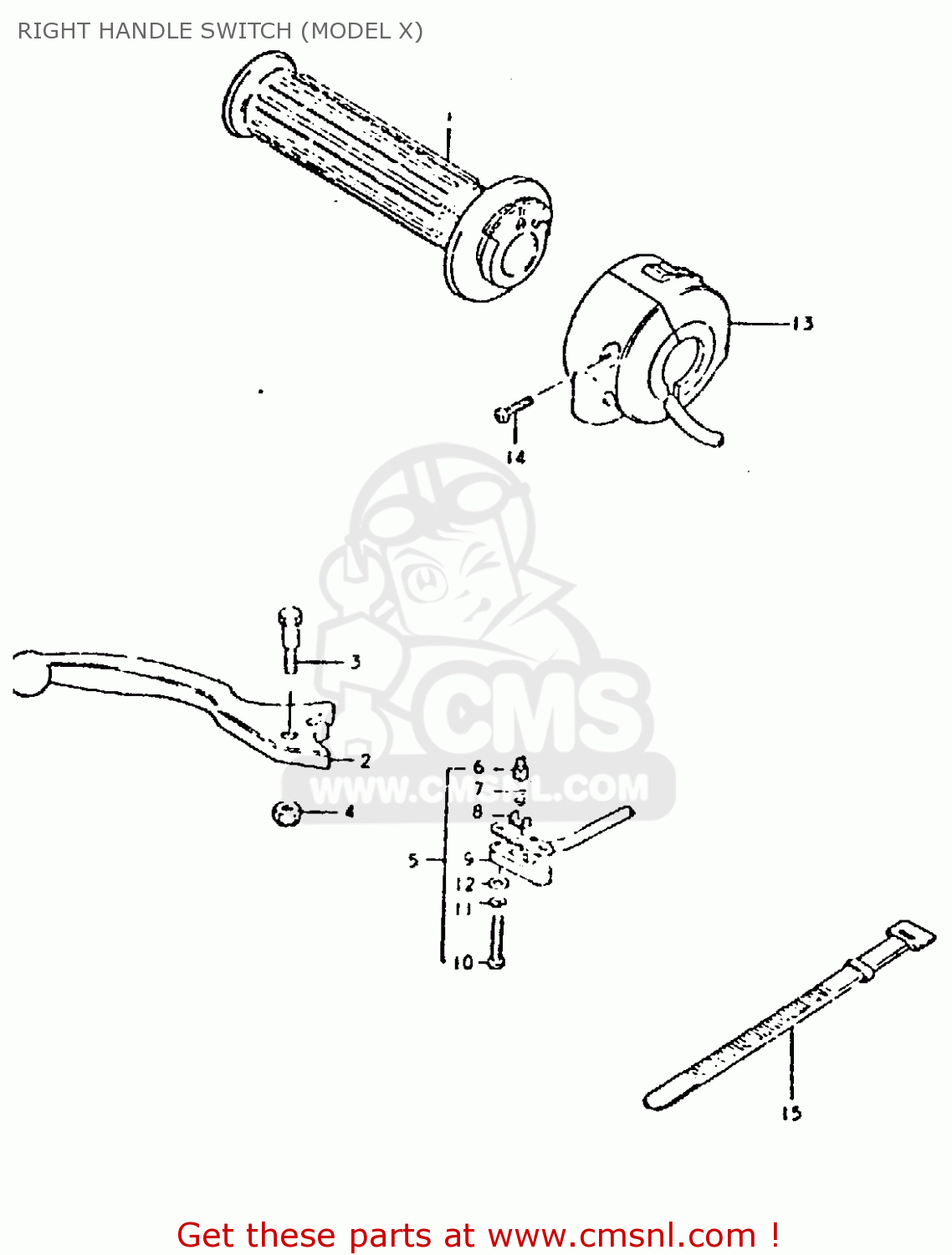

Right handle switch (model x) diagram GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

RIGHT HANDLE SWITCH (MODEL X) GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)
RIGHT HANDLE SWITCH (MODEL X) GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)
RIGHT HANDLE SWITCH (MODEL X) GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)
prices are in EUR
ref
part #
description
quantity
1
5711044011
ref: 1
GRIP,THROTTLE
5711044011
€ 33.00
2
5742049101
ref: 2
LEVER,BRAKE
5742049101
€ 36.50
3
5743118621
ref: 3
BOLT
5743118621
€ 8.00
4
0831921068
ref: 4
NUT 6MM
0831921068
€ 2.00
5
5746049100
ref: 5
SWITCH ASSEMBLY
€ 40.00
6
5746118600
ref: 6
HOLDER
€ 4.50
7
5746218600
ref: 7
SPRING
€ 4.50
8
NOTUSED
ref: 8
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
9
NOTUSED
ref: 9
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10
NOTUSED
ref: 10
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11
0832121038
ref: 11
LOCK WASHER
€ 1.50
12
0832221038
ref: 12
WASHER
0832221038
€ 2.00
13-1
3720011310
ref: 13-1
SWITCH ASSY, HANDLE RH
€ 0.00
13-2
NOTUSED
ref: 13-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
13-3
NOTUSED
ref: 13-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
14
3759149210
ref: 14
SCREW
€ 2.50
15
0940712402
ref: 15
CLAMP(L:120)
0940712402
€ 3.00
