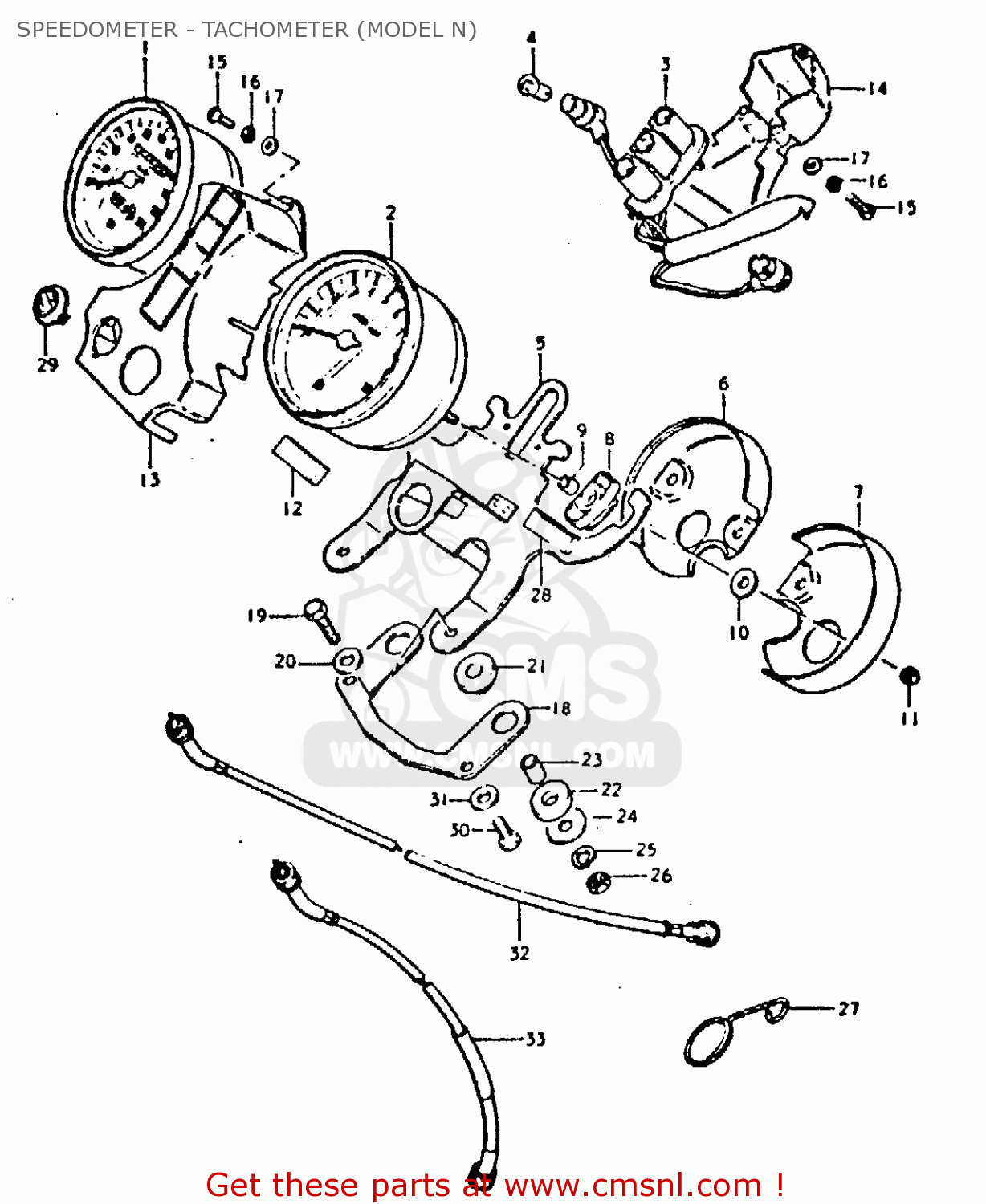

SPEEDOMETER - TACHOMETER (MODEL N) - GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

ref

part #

description

quantity

0

NOTUSED
ref: 0

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

0

3410011333
ref: 0
KILO & MILE SCALE

SPEEDO/TACHOMETER ASSY

€ 0.00

1-1

NOTUSED
ref: 1-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-2

3411011332
ref: 1-2
KILO & MILE SCALE

SPEEDOMETER ASSY

€ 0.00

2

3421011301
ref: 2
FROM 34210-11300

TACHOMETER ASSY

€ 1.50

3

3417311300
ref: 3

SOCKET

€ 32.50

4

0947112001
ref: 4

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

5

3495111300
ref: 5

BRACKET

€ 22.00

6

3496136322
ref: 6

UNDER COVER,SPEEDOMETER

€ 19.50

7

3496236322
ref: 7

UNDER COVER,TACHOMETER

€ 36.00

8

3495544020
ref: 8

CUSHION,METER

€ 4.00

9

3497244022
ref: 9
FROM 34972-44021

SPACER

€ 5.50

10

0916005017
ref: 10

WASHER (5.5X16X1.2)

€ 2.50

11

3418545060
ref: 11

NUT

€ 1.50

12

3418944020
ref: 12

CUSHION,METER

€ 5.50

13

3638011300
ref: 13

CASE, PILOT BULB

€ 33.50

14

3498144020
ref: 14

COVER

€ 20.50

15

0912504011
ref: 15

SCREW(4X16)

€ 2.00

16

3499744020
ref: 16

WASHER,PILOT UNDER CASE

€ 0.00

17

0916004006
ref: 17

WASHER

€ 5.00

18

3495211300
ref: 18

BRACKET

€ 0.00

19

0110706308
ref: 19

BOLT

€ 2.50

20

0832221068
ref: 20

WASHER

€ 2.00

21

3495511300
ref: 21

CUSHION

€ 4.00

22

3495611300
ref: 22

CUSHION

€ 4.00

23

3497811300
ref: 23

SPACER

€ 1.50

24

0916006004
ref: 24

WASHER (6.5X24X1.6)

€ 1.50

25

0832121068
ref: 25

LOCK WASHER

€ 2.50

26

0831011068
ref: 26

NUT

€ 2.50

27

3494930001
ref: 27

CLIP,TACHOMETER CABLE

€ 15.50

28

3428911300
ref: 28

PAD

€ 0.00

29

3499531600
ref: 29

CAP,SPEED WARNER LAMP HOLE

€ 9.50

30

0110706168
ref: 30

BOLT, UPPER

€ 3.00

31

0832221068
ref: 31

WASHER

€ 2.00

32

3491039132
ref: 32

CABLE, SPEEDOMETER

€ 52.50

33

3494011302
ref: 33
TO 34940-11303

CABLE, TACHOMETER

€ 25.00

SPEEDOMETER - TACHOMETER (MODEL N)

all assemblies
