Buy Suzuki GT Parts Online


KICK STARTER

GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

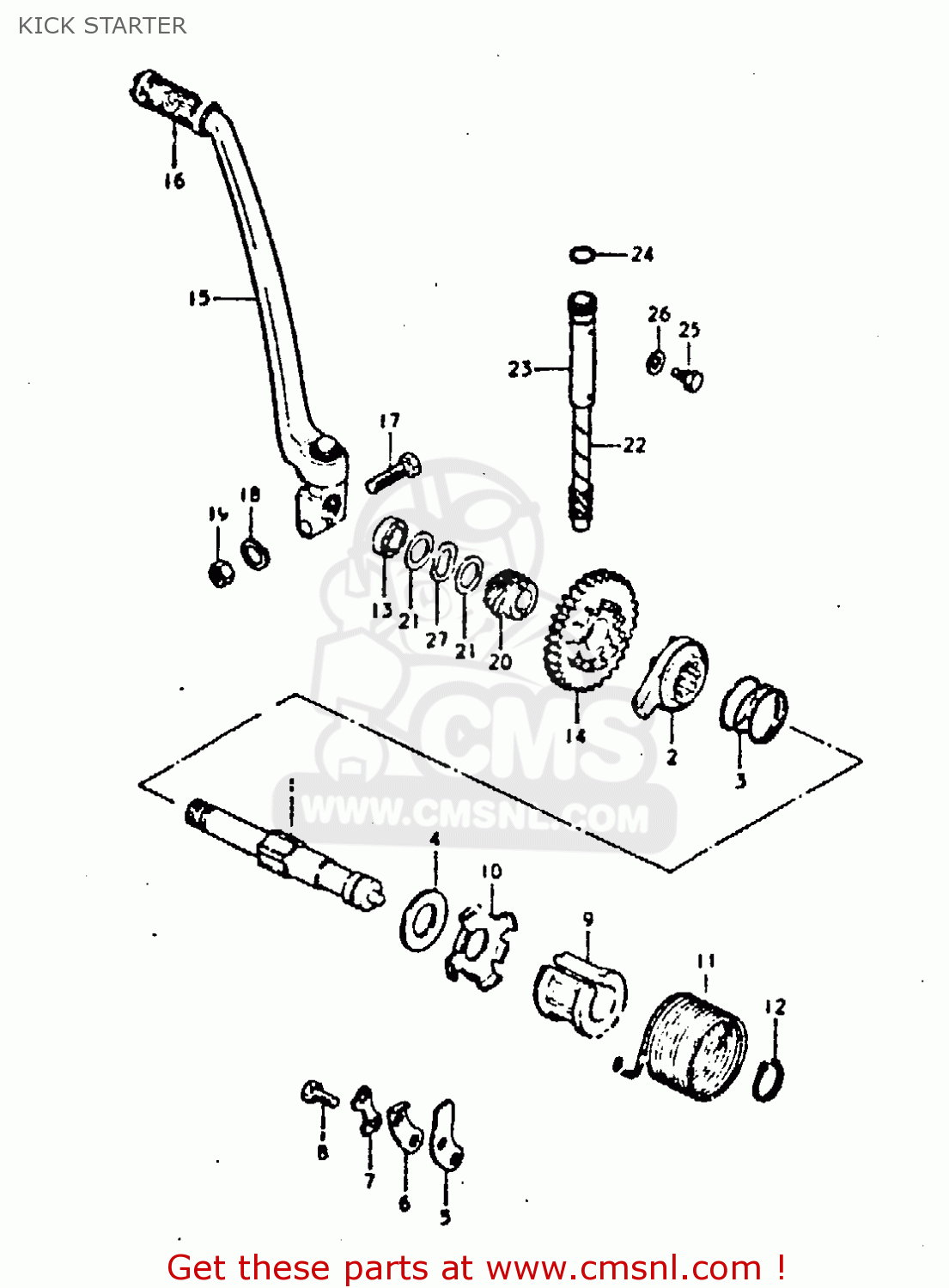

Kick starter diagram GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

KICK STARTER GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)
KICK STARTER GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)
KICK STARTER GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)
prices are in EUR
ref
part #
description
quantity
1
2621111801
ref: 1
SHAFT, KICK STARTER
€ 0.00
2
2623130002
ref: 2
FROM 26231-30001
STARTER,KICK
2623130002
€ 47.50
3
0944032002
ref: 3
SPRING
0944032002
€ 2.00
4
0821117342
ref: 4
WASHER
0821117342
€ 3.00
5
2623230000
ref: 5
GUIDE,KICK STARTER
2623230000
€ 6.00
6
2623330000
ref: 6
STOPPER,KICK STARTER
2623330000
€ 4.00
7
0916906003
ref: 7
WASHER
0916906003
€ 1.50
8
0110706168
ref: 8
BOLT, UPPER
€ 3.00
9
2622130531
ref: 9
GUIDE,KICK SHAFT SPRING
2622130531
€ 6.00
10
2622216500
ref: 10
HOLDER,KICK SHAFT SPRING
€ 0.00
11
0944845003
ref: 11
SPRING
0944845003
€ 4.50
12
0938017001
ref: 12
CIRCLIP
0938017001
€ 2.00
13
0928516003
ref: 13
SEAL,OIL(16X24X5)
0928516003
€ 3.00
14
2624011300
ref: 14
NT:34
GEAR, KICK STARTER DRIVE
€ 77.50
15
2630044001
ref: 15
LEVER ASSY,KICK STARTER
2630044001
€ 108.00
16
2625201000
ref: 16
RUBBER
€ 0.00
17
0110710358
ref: 17
BOLT,M10X1.25X
0110710358
€ 2.50
18
0832121108
ref: 18
LOCK WASHER
0832121108
€ 2.00
19
0831011108
ref: 19
NUT
0831011108
€ 2.50
20
2642111301
ref: 20
NT:13
GEAR, TACHOMETER DRIVE (NT:13)
€ 24.00
21
0822116245
ref: 21
WASHER
€ 3.50
22
2643139100
ref: 22
NT:10
GEAR, TACHO. DRIVEN (NT:10)
2643139100
€ 18.50
23
2644139102
ref: 23
FROM 26441-39101
SLEEVE,TACHOMETER DRIVE GEAR
2644139102
€ 12.00
24
0928010001
ref: 24
O RING(D:1.3,ID:9.6)
0928010001
€ 2.00
25
0913506002
ref: 25
BOLT
0913506002
€ 2.50
26
0832221068
ref: 26
WASHER
0832221068
€ 2.00
27
0916416003
ref: 27
WASHER
0916416003
€ 2.50
