REAR BRAKE

GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

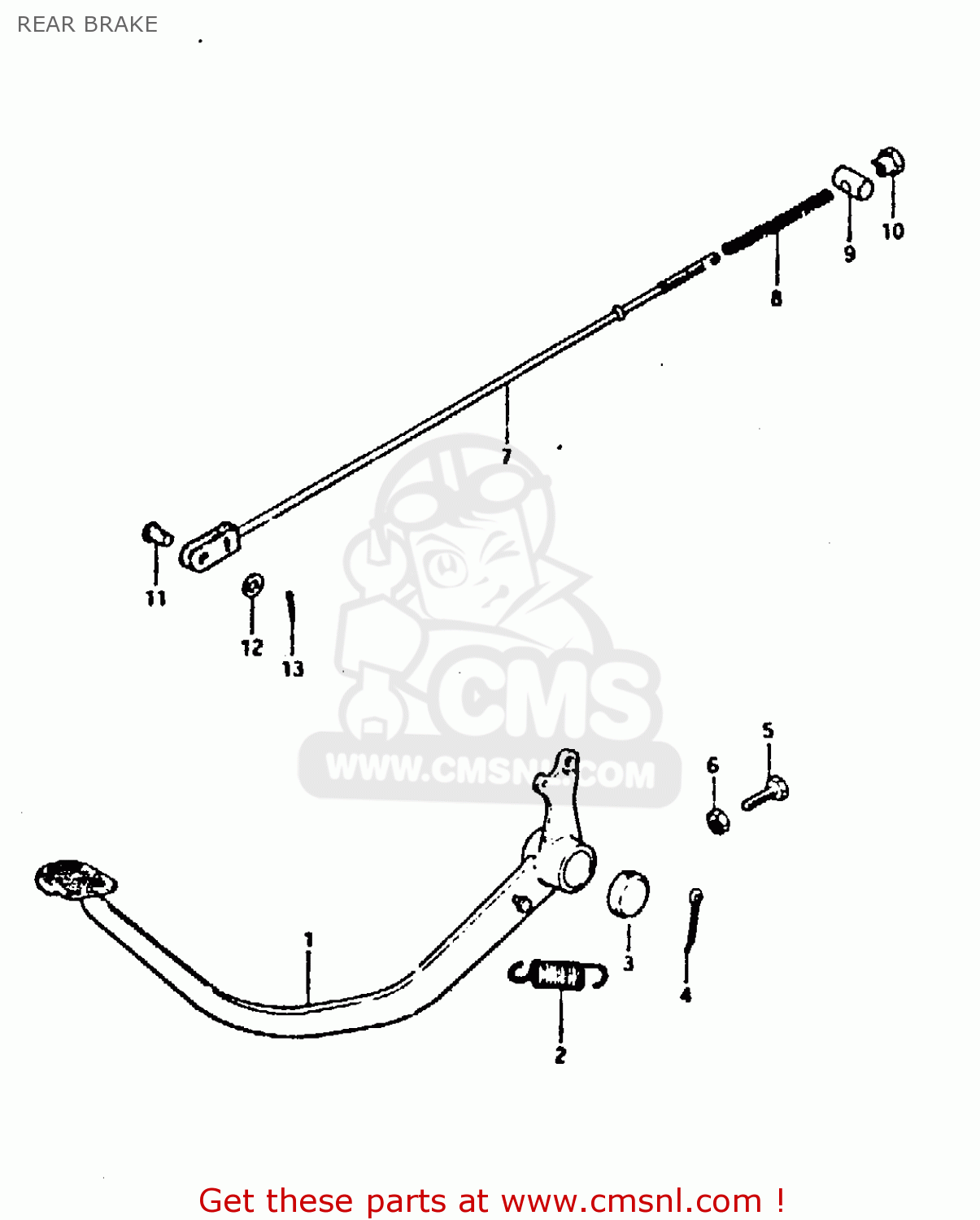

Rear brake diagram GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

REAR BRAKE GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

REAR BRAKE GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

prices are in EUR

ref

part #

description

quantity

1

4311011300
ref: 1

PEDAL, BRAKE

€ 48.00

2

0944314015
ref: 2

SPRING

€ 3.00

3

4313531001
ref: 3

CAP,BRAKE PEDAL

€ 3.50

4

0411140408
ref: 4

PIN, COTTER

€ 2.00

5

0910006055
ref: 5

BOLT(6X25)

€ 2.50

6

0831011068
ref: 6

NUT

€ 2.50

7

4331011300
ref: 7

ROD,RR BRAKE

€ 19.00

8

0944009004
ref: 8

SPRING

€ 2.00

9

0920913003
ref: 9

PIN

€ 3.50

10

0915006001
ref: 10

NUT

€ 3.50

11

0920006013
ref: 11

PIN(L:13.5)

€ 2.00

12

0832221068
ref: 12

WASHER

€ 2.00

13

0411120208
ref: 13

PIN 20X20

€ 1.50
