RIGHT HANDLE SWITCH (MODEL N)

GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

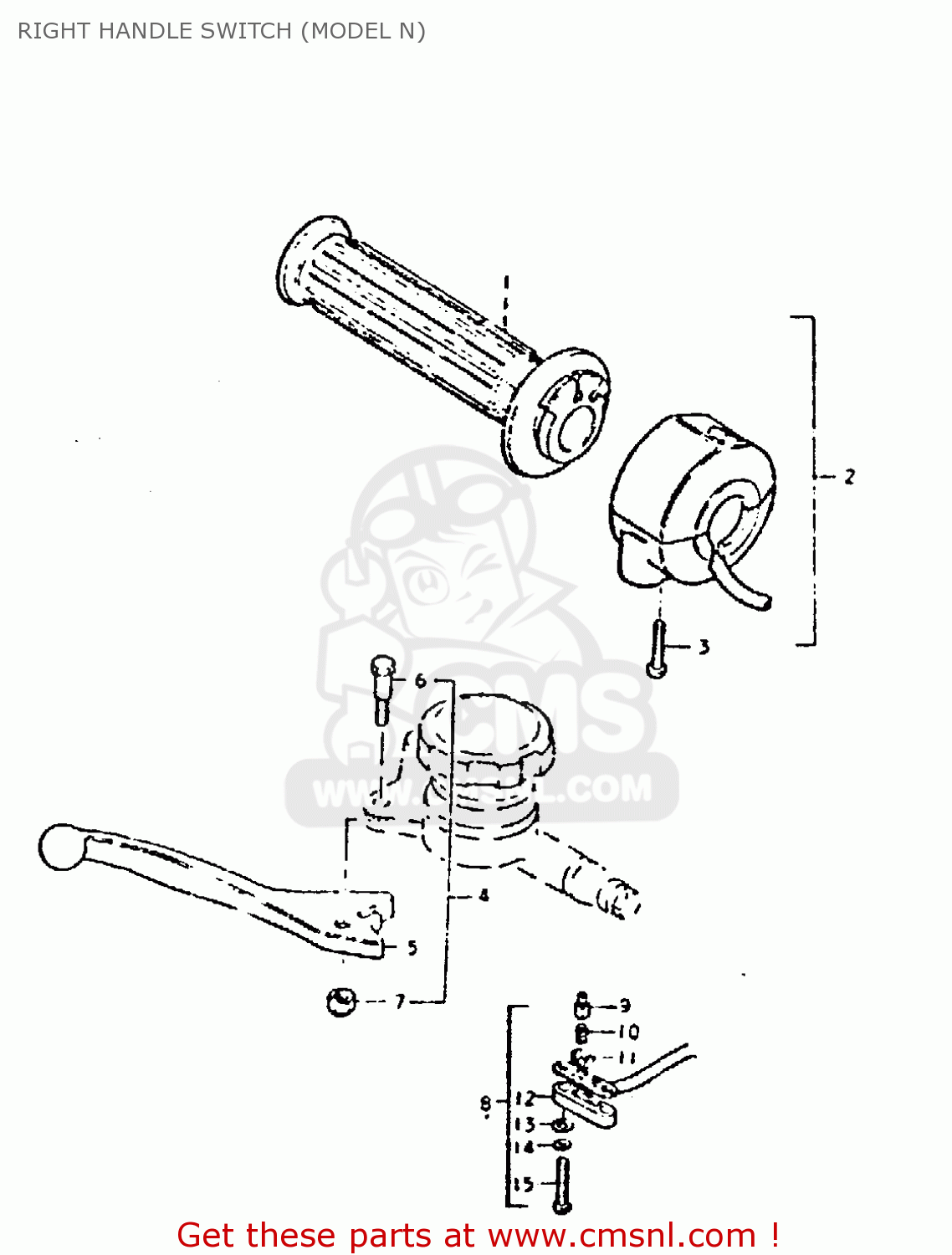

Right handle switch (model n) diagram GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

RIGHT HANDLE SWITCH (MODEL N) GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

RIGHT HANDLE SWITCH (MODEL N) GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

prices are in EUR

ref

part #

description

quantity

1

5711011300
ref: 1

GRIP, THROTTLE

€ 19.50

2

5710011330
ref: 2

CASE ASSY, THROTTLE

€ 74.50

3

0211205258
ref: 3

SCREW

€ 2.00

4

5730011320
ref: 4

LEVER ASSEMBLY,BRAKE

€ 27.50

5

5742011320
ref: 5

LEVER,BRAKE

€ 27.50

6

5743118621
ref: 6

BOLT

€ 8.00

7

0831921068
ref: 7

NUT 6MM

€ 2.00

8

5746033700
ref: 8

SWITCH ASSY,STOP

€ 38.50

9

5746118600
ref: 9

HOLDER

€ 4.50

10

5746218600
ref: 10

SPRING

€ 4.50

11

NOTUSED
ref: 11

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

12

NOTUSED
ref: 12

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

13

0832221038
ref: 13

WASHER

€ 2.00

14

0832121038
ref: 14

LOCK WASHER

€ 1.50

15

0912503105
ref: 15

SCREW

€ 2.50
