FRAME

GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

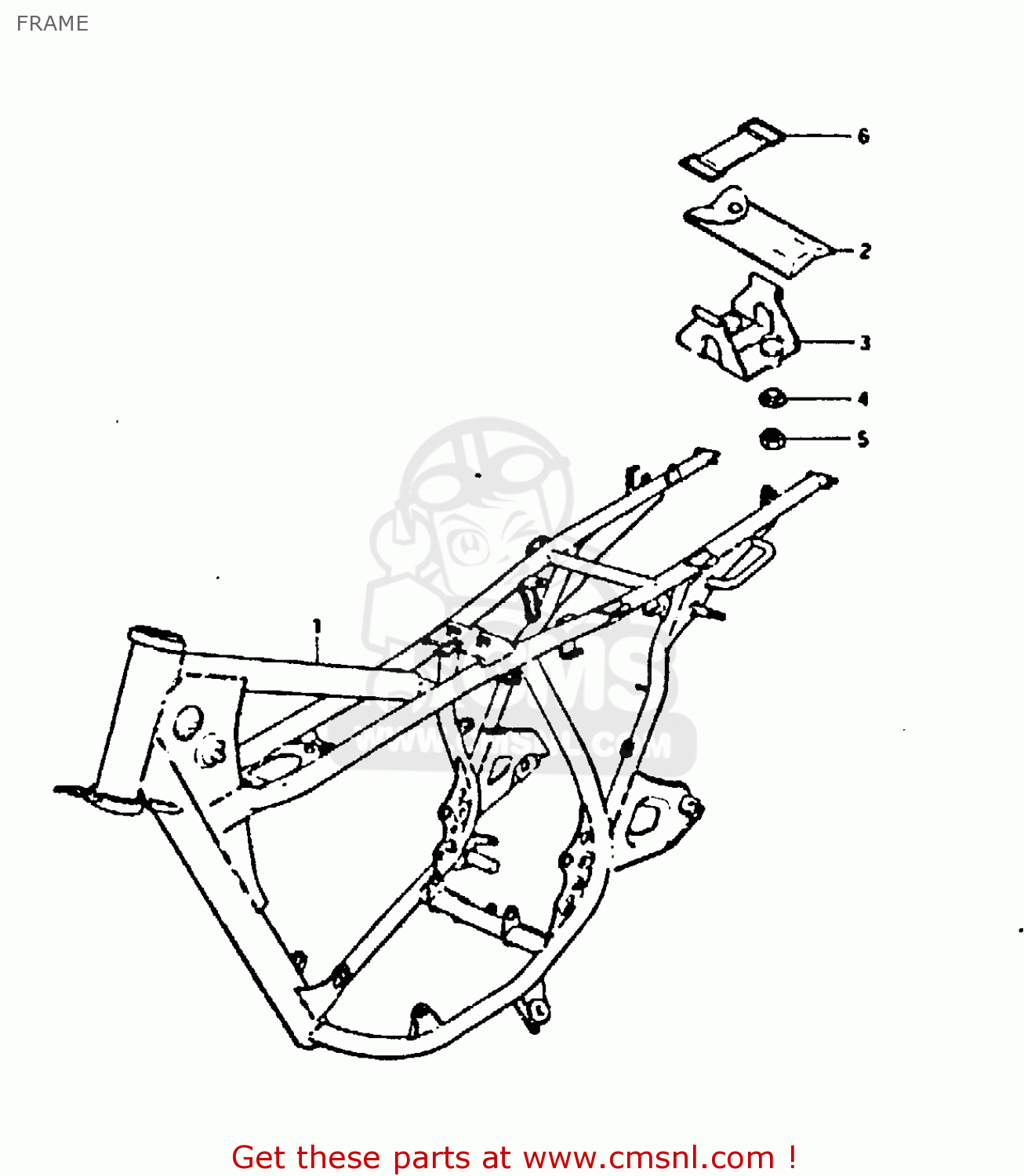

Frame diagram GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

FRAME GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

FRAME GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

prices are in EUR

ref

part #

description

quantity

1-1

4110011300019
ref: 1-1

FRAME (BLACK)

€ 0.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-4

NOTUSED
ref: 1-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-5

NOTUSED
ref: 1-5

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2-1

0980000108
ref: 2-1
TO 09800-00807<br>*A

TOOL SET

€ 43.50

2-2

0980002800
ref: 2-2
*ASTERISK SHOWS EXPO

TOOL ASSY

€ 43.50

3

4155011300
ref: 3

HOLDER,TOOL

€ 5.50

4

0916906011
ref: 4

WASHER

€ 6.50

5

0831011068
ref: 5

NUT

€ 2.50

6

0946200017
ref: 6

BAND

€ 13.50
