HEADLAMP (E2)

GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

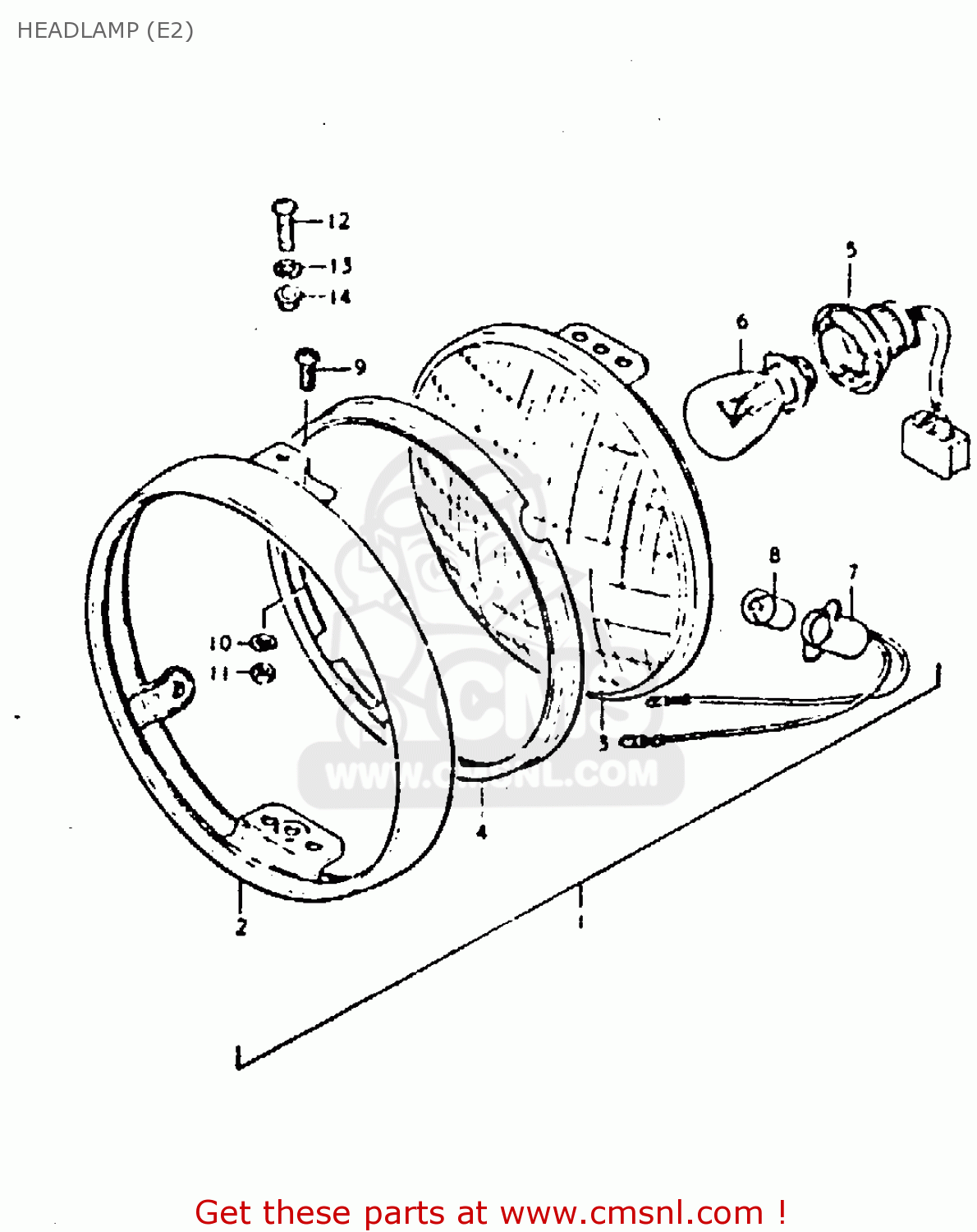

Headlamp (e2) diagram GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

HEADLAMP (E2) GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

HEADLAMP (E2) GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

prices are in EUR

ref

part #

description

quantity

1

3510044651
ref: 1

HEADLAMP ASSY

€ 156.00

2

3511144030
ref: 2

RIM

€ 46.50

3

3512115617
ref: 3

UNIT, HEAD LIGHT

€ 77.50

4

3512733032
ref: 4

RETAINER,HEADLAMP

€ 17.00

5

3517115616
ref: 5

SOCKET

€ 14.50

6

0947112033
ref: 6

BULB 12V35/35W

€ 6.00

7

3611828660
ref: 7

SOCKET

€ 11.50

8

0947112001
ref: 8

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

9

0211205108
ref: 9

SCREW

€ 2.00

10

0832121058
ref: 10

LOCK WASHER

€ 2.00

11

0831022058
ref: 11

NUT

€ 2.50

12

0912505022
ref: 12

SCREW

€ 3.50

13

0916205003
ref: 13

WASHER,LOCK

€ 2.00

14

0916906021
ref: 14

WASHER

€ 2.50
