OIL PUMP

GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

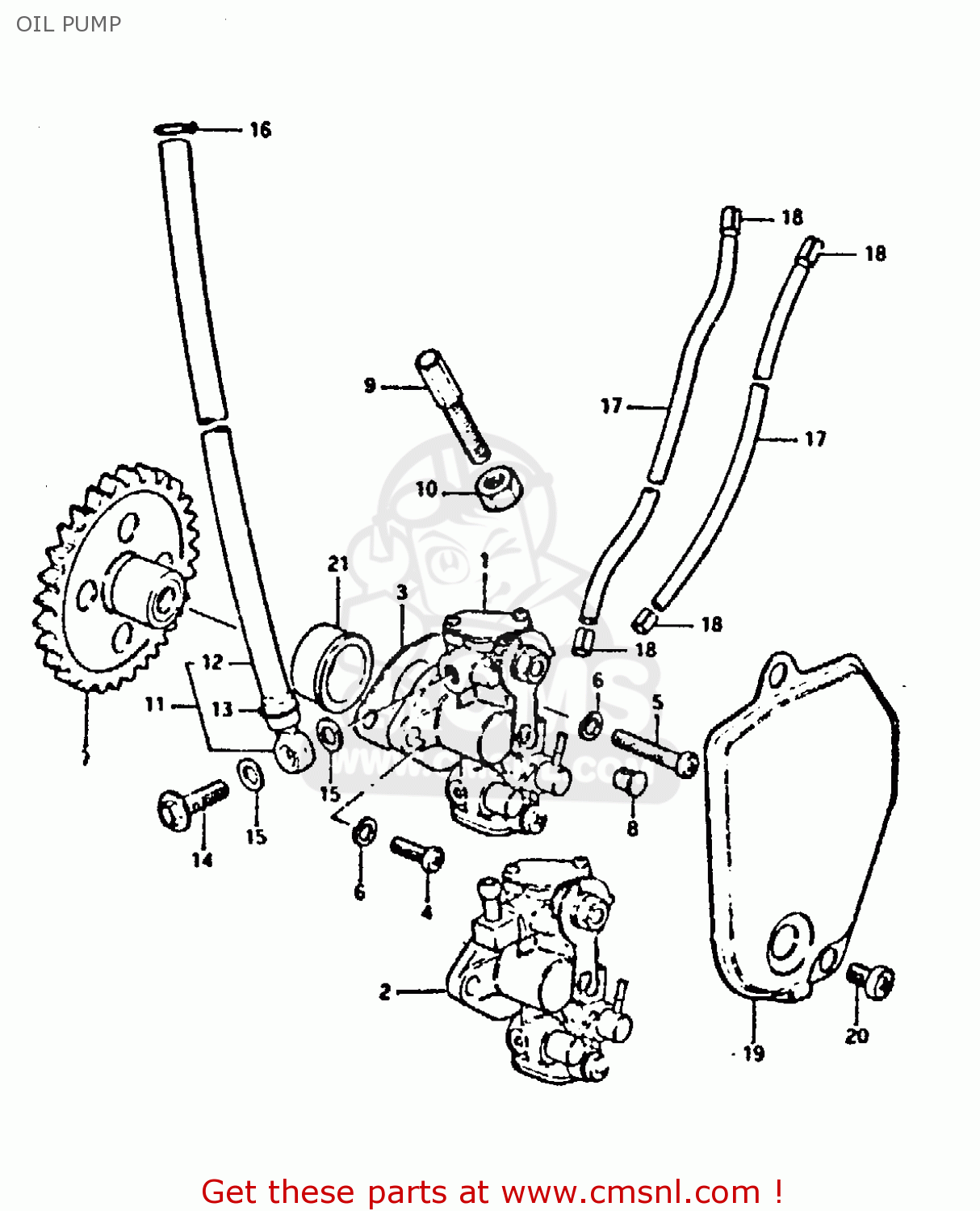

Oil pump diagram GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

OIL PUMP GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)
OIL PUMP GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)
OIL PUMP GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)
prices are in EUR
ref
part #
description
quantity
1
1610011321
ref: 1
PUMP ASSY, OIL
€ 240.50
2
1610011322
ref: 2
PUMP ASSY, OIL
€ 240.50
3-1
1673103100
ref: 3-1
TO 16731-03101
GASKET,OIL PUMP (MCA)
1673103100
€ 2.50
3-2
1673103101
ref: 3-2
E.NO. GT2502-111085~
GASKET,OIL PUMP (NAS)
1673103101
€ 2.50
4
0211205168
ref: 4
SCREW
0211205168
€ 2.50
5
0211205308
ref: 5
SCREW
0211205308
€ 1.50
6
0832121058
ref: 6
LOCK WASHER
0832121058
€ 2.00
7-1
1632011330
ref: 7-1
TO 16321-11990 USED
GEAR, OIL PUMP DRIVE (NT:29)
€ 17.50
7-2
1632011331
ref: 7-2
E.NO. GT2502-111085~
GEAR, OIL PUMP DRIVE
1632011331
€ 17.50
8
1629203111
ref: 8
TERMINAL,CABLE
1629203111
€ 3.50
9
0911908014
ref: 9
BOLT
0911908014
€ 3.50
10
0831012088
ref: 10
NUT
0831012088
€ 2.00
11
1681030500
ref: 11
FOR 16100-11321
HOSE,OIL NO.1
€ 17.50
12
0934304025
ref: 12
FOR 16100-11322
HOSE
€ 14.00
13
0940108401
ref: 13
CLIP
0940108401
€ 1.50
14
0936006003
ref: 14
FOR 16100-11321
UNION BOLT
0936006003
€ 5.00
15
0916806004
ref: 15
FOR 16100-11321
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
16
0940108401
ref: 16
CLIP
0940108401
€ 1.50
17
0934302014
ref: 17
HOSE
€ 12.00
18
0940104401
ref: 18
CLIP
0940104401
€ 2.50
19
1138511300
ref: 19
CAP, INSPECTION
€ 5.50
20
0211206108
ref: 20
SCREW
0211206108
€ 1.50
21
0930120002
ref: 21
E.NO. GT2502-111085~
PUSH
€ 13.00
