REAR SWINGING ARM

GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

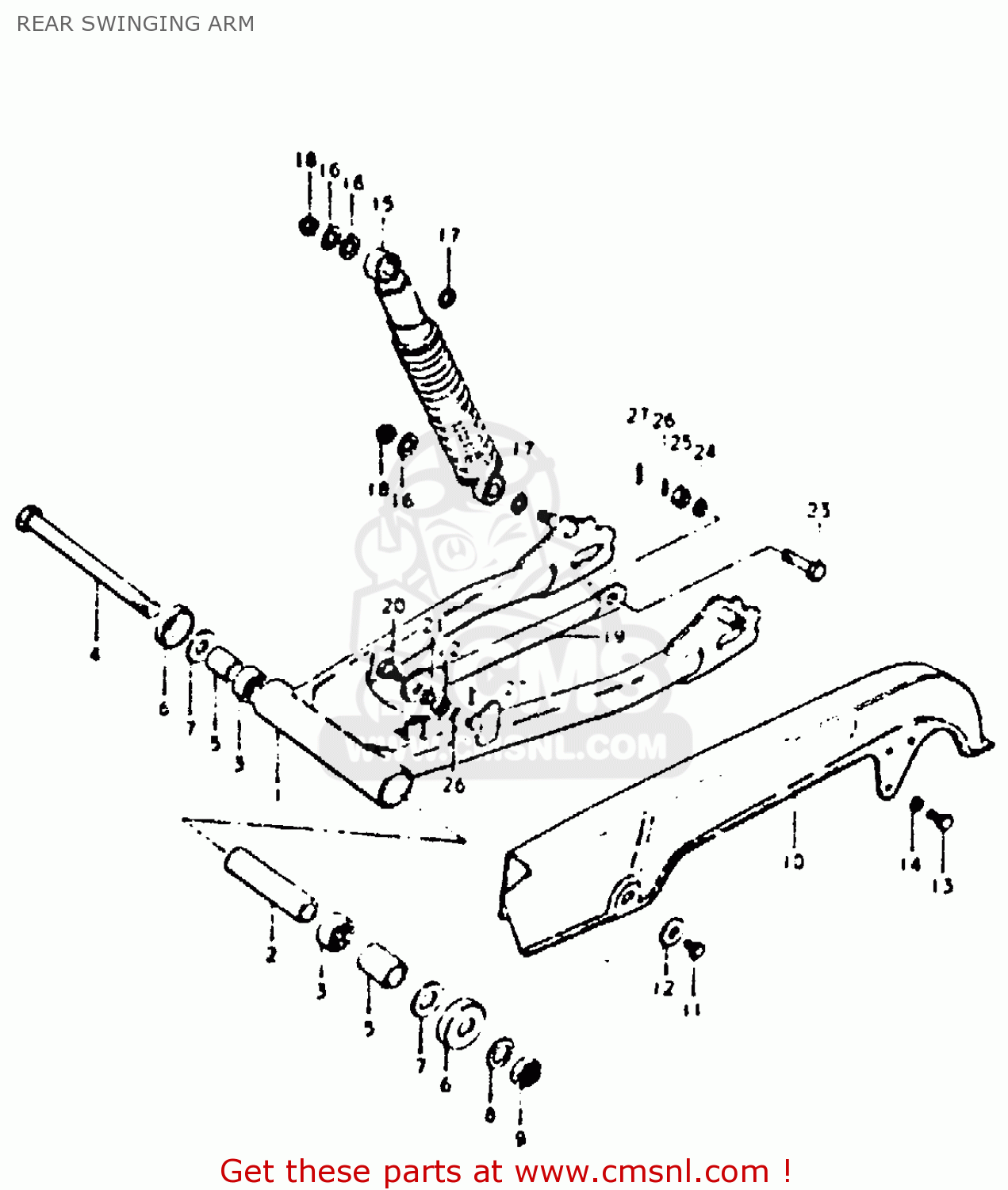

Rear swinging arm diagram GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

REAR SWINGING ARM GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)
REAR SWINGING ARM GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)
REAR SWINGING ARM GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)
prices are in EUR
ref
part #
description
quantity
1
6110011850019
ref: 1
REAR SWINGING ARM SET
€ 0.00
2
6128011300
ref: 2
SPACER, CENTER
€ 10.00
3
0926322017
ref: 3
BEARING(22X29X30)
0926322017
€ 18.50
4
6121111300
ref: 4
SHAFT,REAR SWING ARM
€ 16.50
5
6125145001
ref: 5
SPACER,RR SWGARM PIVOT
6125145001
€ 12.50
6
6126245002
ref: 6
CVR,RR SWGARM DUST SEAL(OD:40)
6126245002
€ 4.50
7
0916014020
ref: 7
WASHER(14.2X34X1)
0916014020
€ 2.50
8
0832211148
ref: 8
WASHER
0832211148
€ 2.00
9
0831921148
ref: 9
NUT 14MM
0831921148
€ 3.00
10
6131011300
ref: 10
CASE,CHAIN
6131011300
€ 107.50
11
0110706108
ref: 11
BOLT
€ 2.00
12
0916906016
ref: 12
WASHER
0916906016
€ 1.50
13
0110706168
ref: 13
BOLT, UPPER
€ 3.00
14
0832121068
ref: 14
LOCK WASHER
0832121068
€ 2.50
15-1
6210011301
ref: 15-1
MODEL N ~F.NO. GT250
SHOCK ABSORBER, REAR
€ 152.50
15-2
6210011310
ref: 15-2
MODEL N
ABSORBER ASSY,RR SHOCK
6210011310
€ 152.50
15-3
6210011301
ref: 15-3
MODEL X
SHOCK ABSORBER, REAR
€ 152.50
15-4
NOTUSED
ref: 15-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16-1
0916010001
ref: 16-1
WASHER
0916010001
€ 2.00
16-2
NOTUSED
ref: 16-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
17
0832211128
ref: 17
WASHER
0832211128
€ 2.00
18
0831311108
ref: 18
NUT, LOWER LH
0831311108
€ 2.50
19
6431039000
ref: 19
TORQUE LINK, REAR
€ 13.50
20
0911108012
ref: 20
BOLT(8X22.5)
0911108012
€ 3.00
21
0832121088
ref: 21
LOCK WASHER
0832121088
€ 2.00
22
0914008008
ref: 22
NUT
0914008008
€ 1.50
23
0910110003
ref: 23
BOLT(10X31)
0910110003
€ 4.00
24
0832121108
ref: 24
LOCK WASHER
0832121108
€ 2.00
25
0831011108
ref: 25
NUT
0831011108
€ 2.50
26
0938510001
ref: 26
MODEL N
CLIP
0938510001
€ 1.50
27
0411120158
ref: 27
MODEL X
PIN
0411120158
€ 1.50
