TURN SIGNAL LAMP (MODEL N : E2, E4)

GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

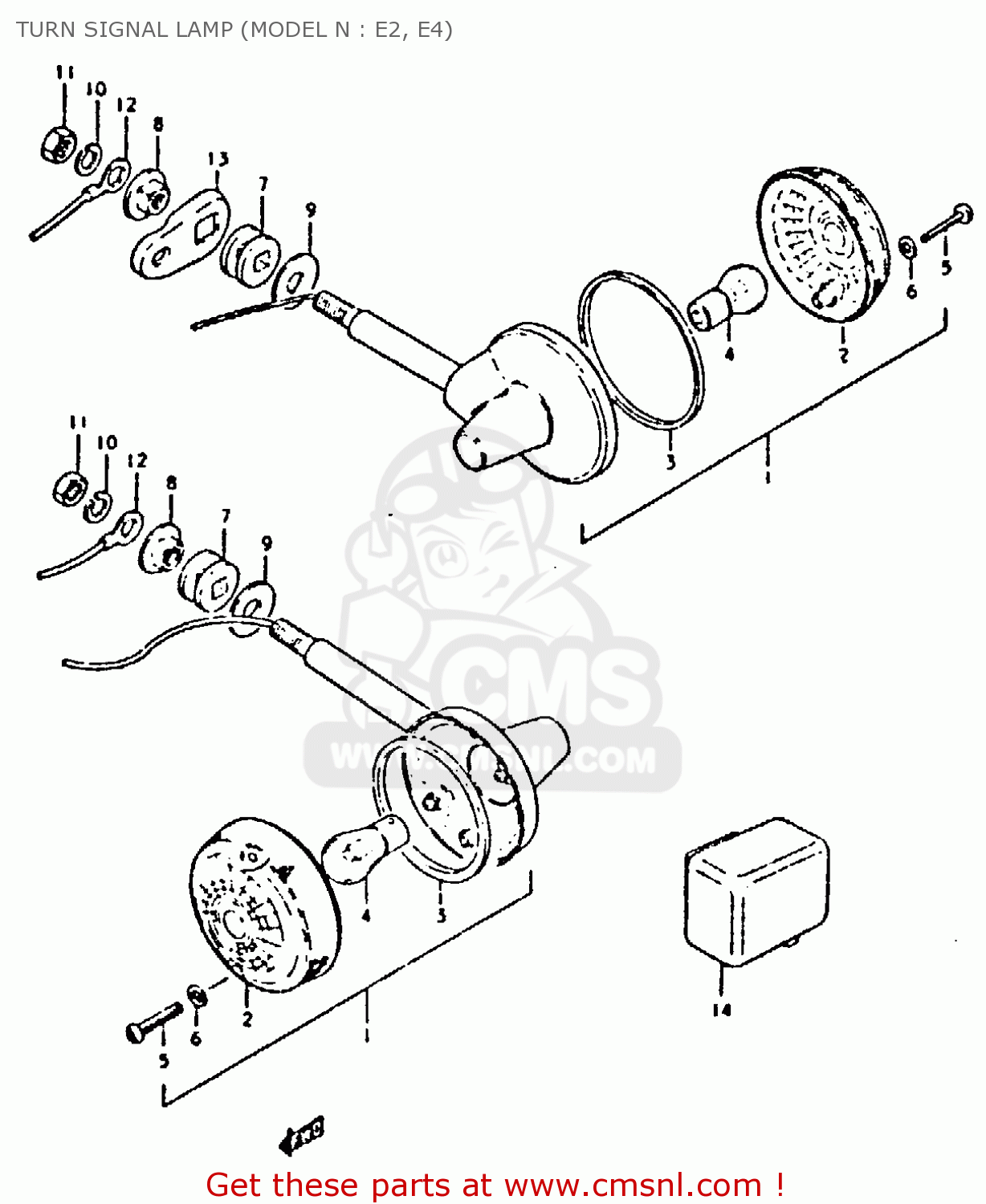

Turn signal lamp (model n : e2, e4) diagram GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

TURN SIGNAL LAMP (MODEL N : E2, E4) GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

TURN SIGNAL LAMP (MODEL N : E2, E4) GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

prices are in EUR

ref

part #

description

quantity

1

3560144020
ref: 1

LAMP ASSY, TURN SIGNAL

€ 80.50

2

3561228420
ref: 2
TO 35612-28421

LENS

€ 10.50

3

3561328620
ref: 3

GASKET (NAS)

€ 7.00

4

0947112056
ref: 4

BULB 12V 21W

€ 5.00

5

3562347610
ref: 5

SCREW

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

3569032200
ref: 7

CUSHION

€ 38.50

8

3569532200
ref: 8

SPACER,RR TURNSIGNAL LAMP

€ 42.00

9

3562944000
ref: 9

WASHER

€ 4.50

10

0832121108
ref: 10

LOCK WASHER

€ 2.00

11

0831012108
ref: 11

NUT

€ 2.50

12

3666033000
ref: 12

LEAD WIRE,EARTH

€ 5.00

13

4158032200
ref: 13

BRACKET,TURN SIGNAL

€ 41.50

14

3861045031
ref: 14

RELAY,TURN SIGNAL

€ 54.50
