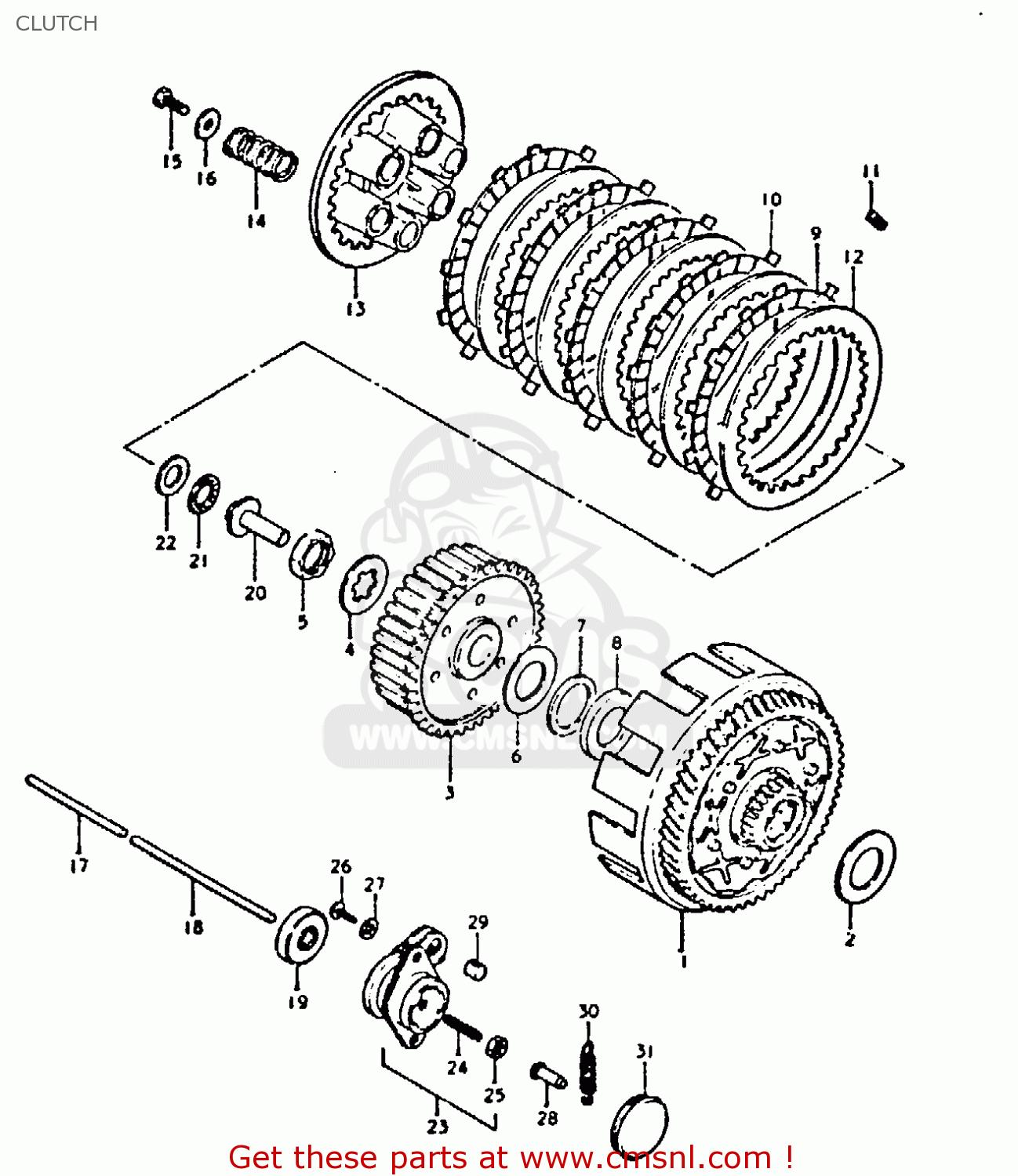

CLUTCH

ref

part #

description

quantity

1

2120011301
ref: 1
NT:62/20

GEAR ASSY, PRIMARY DRIVEN

€ 290.00

2

0821125381
ref: 2

WASHER

€ 3.00

3

2141130001
ref: 3

HUB,CLUTCH SLEEVE

€ 55.50

4

0916720006
ref: 4

WASHER,LOCK

€ 3.00

5

0914020002
ref: 5

NUT (20MM)

€ 3.50

6

0821120382
ref: 6

WASHER

€ 3.00

7

0916127001
ref: 7

WASHER (27X34X2)

€ 2.00

8

0916925002
ref: 8

WASHER

€ 7.00

9

2144111300
ref: 9

PLATE, DRIVE

€ 14.50

10

2144116500
ref: 10

PLATE,CLUTCH DRIVE (MCA)

€ 11.50

11

2148111300
ref: 11

DAMPER

€ 0.00

12

2145131000
ref: 12

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 9.00

13

2146216500
ref: 13
TO 21462-16501

DISC,CLUTCH PRESSURE

€ 51.00

14

0944019004
ref: 14

SPRING

€ 3.00

15

0110706168
ref: 15

BOLT, UPPER

€ 3.00

16

0916006020
ref: 16

WASHER

€ 2.00

17

2311130000
ref: 17

ROD,CLUTCH PUSH

€ 13.50

18

2311111300
ref: 18

ROD, PUSH NO. 2 (L:134)

€ 14.00

19

0928506008
ref: 19

SEAL,OIL(6X35X5.5)

€ 13.50

20

2312144100
ref: 20

PIECE,CLUTCH PUSH

€ 21.50

21

0926315003
ref: 21

BEARING(15X28X2)

€ 7.00

22

0916015015
ref: 22

WASHER

€ 4.00

23-1

2320030001
ref: 23-1

SCREW ASSEMBLY,CLUTCH RELEASE

€ 80.50

23-2

2320011300
ref: 23-2
F.NO. GT2502-104548~

SCREW ASSY,CLUTCH RELEASE

€ 250.50

24

0913406001
ref: 24

SCREW

€ 3.00

25

0831022068
ref: 25

NUT 6MM

€ 2.50

26

0311106128
ref: 26

SCREW

€ 1.50

27

0832211068
ref: 27

WASHER 6MM

€ 2.00

28

0922004001
ref: 28

RIVET

€ 1.50

29

2322207000
ref: 29

PIECE,RELEASE ARM END

€ 5.00

30

0944308001
ref: 30

SPRING

€ 3.00

31

0925030003
ref: 31

CAP(OD:36)

€ 4.00
