REAR WHEEL (GT250N, X)

GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

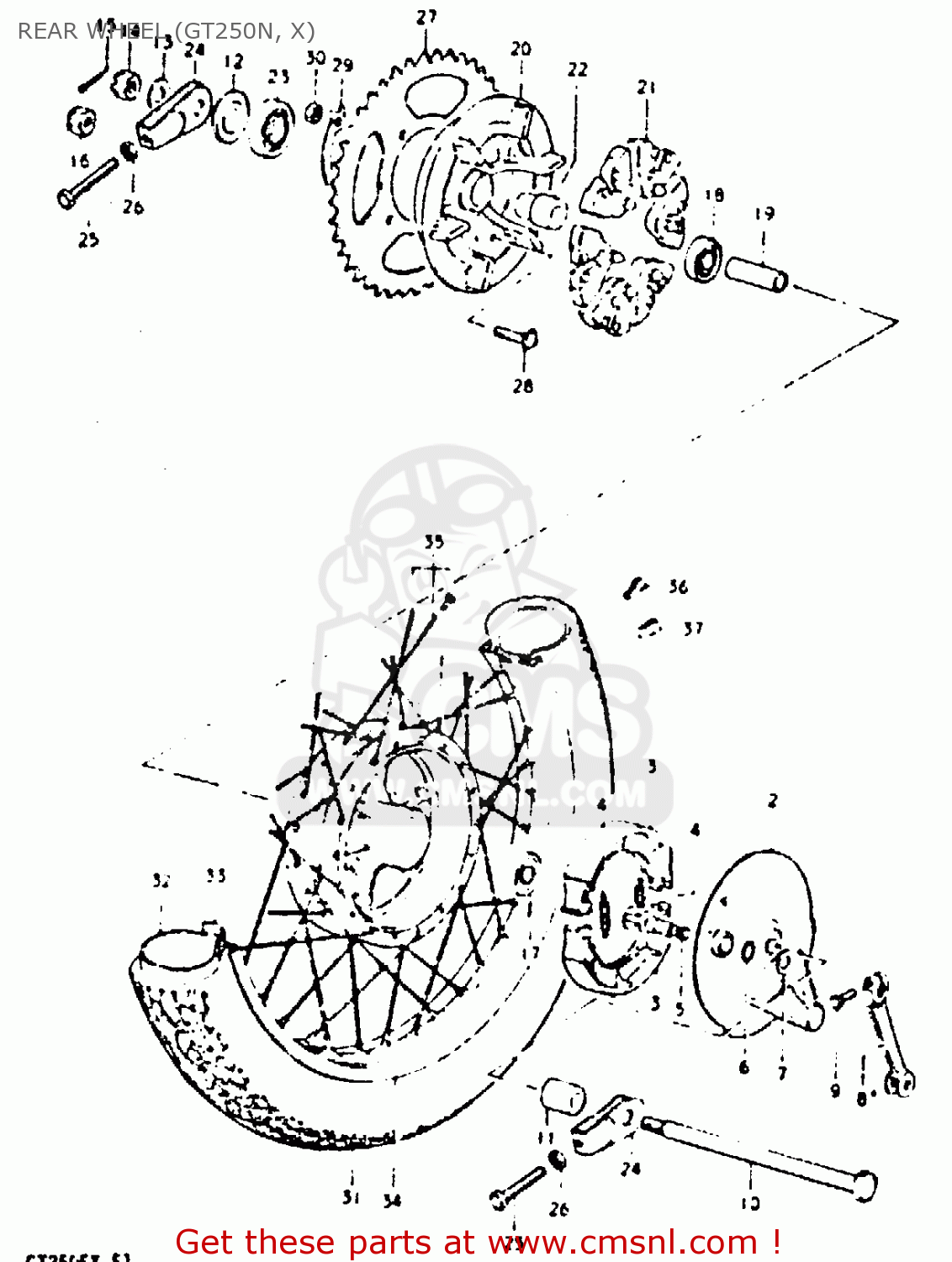

Rear wheel (gt250n, x) diagram GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

REAR WHEEL (GT250N, X) GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)
REAR WHEEL (GT250N, X) GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)
REAR WHEEL (GT250N, X) GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)
prices are in EUR
ref
part #
description
quantity
1-1
6411011310
ref: 1-1
MODEL N
DRUM,REAR HUB
€ 0.00
1-2
6411011311
ref: 1-2
MODEL X, FROM 64110-
HUB,RR
€ 0.00
2
6421011310
ref: 2
PANEL,REAR HUB
€ 0.00
3
6441011301
ref: 3
SHOE,BRAKE
6441011301
€ 29.50
4
5542030000
ref: 4
SPRING,BRAKE SHOE
5542030000
€ 3.50
5
5444008003
ref: 5
CAM,FRONT BRAKE
5444008003
€ 19.00
6
0928015001
ref: 6
O-RING,BOSS
0928015001
€ 2.00
7
0916015001
ref: 7
WASHER (15X24X1.6)
0916015001
€ 2.50
8
6445144001
ref: 8
LEVER,RR BRAKE CAM
6445144001
€ 111.00
9
0110706258
ref: 9
BOLT
€ 2.00
10
6471111300
ref: 10
AXLE, REAR
6471111300
€ 39.50
11
0918015046
ref: 11
SPACER
€ 4.50
12
6475011300
ref: 12
SPACER, LH
6475011300
€ 8.50
13
0832211148
ref: 13
WASHER
0832211148
€ 2.00
14
0914114001
ref: 14
NUT
0914114001
€ 4.50
15
0411130308
ref: 15
COTTER PIN
0411130308
€ 1.50
16
NOTUSED
ref: 16
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
17
0814363027
ref: 17
BEARING, RH
0814363027
€ 12.00
18
0814362027
ref: 18
BEARING
0814362027
€ 12.50
19
0918015045
ref: 19
SPACER(15.3X21.7X58)
0918015045
€ 8.50
20
6461111300
ref: 20
DRUM,REAR SPROCKET MOUNT
€ 113.00
21
6465111300
ref: 21
ABSORBER,RR HUB SHOCK
6465111300
€ 12.50
22
6473339100
ref: 22
RETAINER,RR SPROCKET MTG
6473339100
€ 17.00
23
0812362047
ref: 23
BEARING
0812362047
€ 17.00
24
6141030003
ref: 24
ADJUSTER,CHAIN,R
6141030003
€ 18.50
25
0910408006
ref: 25
BOLT
0910408006
€ 3.00
26
0831012088
ref: 26
NUT
0831012088
€ 2.00
27-1
6451111310
ref: 27-1
SPROCKET,RR
6451111310
€ 66.00
27-2
NOTUSED
ref: 27-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
28
0910508001
ref: 28
BOLT(8X33.5)
0910508001
€ 2.50
29
0916908021
ref: 29
WASHER,LOCK
0916908021
€ 6.50
30
0914008005
ref: 30
NUT (8MM)
0914008005
€ 1.50
31-1
6510011310
ref: 31-1
TIRE
€ 51.50
31-2
NOTUSED
ref: 31-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
32-1
6520018010
ref: 32-1
TUBE ASSEMBLY,WHEEL,INNER
€ 35.00
32-2
NOTUSED
ref: 32-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
33-1
5526111010
ref: 33-1
PROTECTOR,INNER TUBE
5526111010
€ 3.50
33-2
NOTUSED
ref: 33-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
34
6531118420
ref: 34
RIM,RR WHEEL
6531118420
€ 115.50
35
6530011850
ref: 35
SPOKE SET
6530011850
€ 57.50
36
5541111000
ref: 36
BALANCER,WHEEL (B)
€ 4.50
37
5541211000
ref: 37
BALANCER,WHEEL (30G)
5541211000
€ 8.00
