FRAME COVER (MODEL N : F.NO. 107282~)

GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

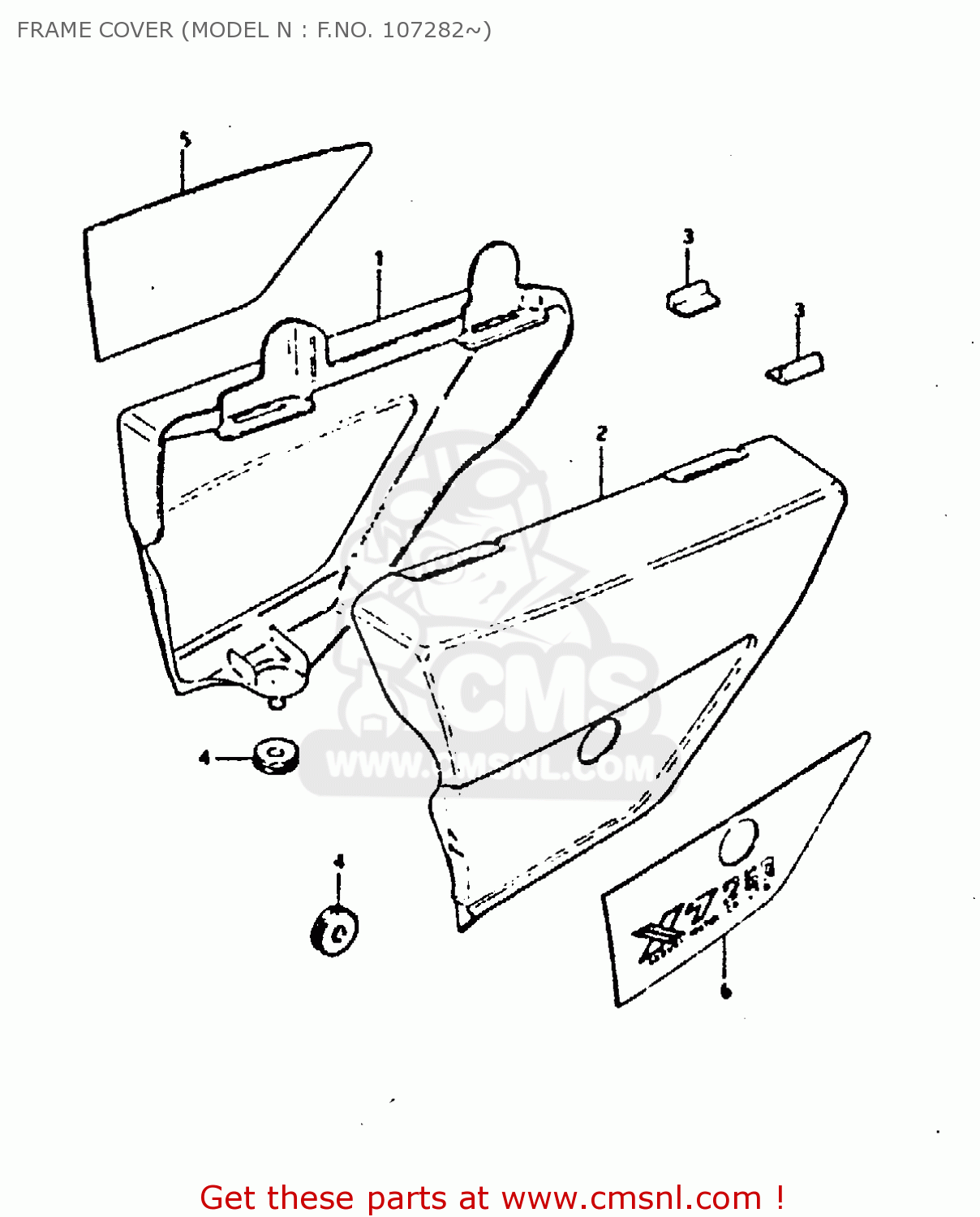

Frame cover (model n : f.no. 107282~) diagram GT250 1979 (N) (E01 E02 E04 E06 E22 E24 E30 E4?)

prices are in EUR

ref

part #

description

quantity

1-1

4711111300189
ref: 1-1

COVER, RH (WHITE)

€ 37.00

1-2

471111130005J
ref: 1-2

COVER, RH (RED)

€ 37.00

1-3

471111130005K
ref: 1-3

COVER, RH (BLUE)

€ 37.00

2-1

4721111300189
ref: 2-1

COVER, LH (WHITE)

€ 35.00

2-2

472111130005J
ref: 2-2

COVER, LH (RED)

€ 35.00

2-3

472111130005K
ref: 2-3

COVER, LH (BLUE)

€ 35.00

4711745000
ref: 3

CUSHION,FRAME COVER

€ 1.50

4-1

0932008013
ref: 4-1
TO 09320-08018

CUSHION

€ 4.00

4-2

0932008018
ref: 4-2

CUSHION

€ 4.00

6813111330
ref: 5

EMBLEM, RH

€ 23.00

6814111300
ref: 6

EMBLEM, LH

€ 16.00
