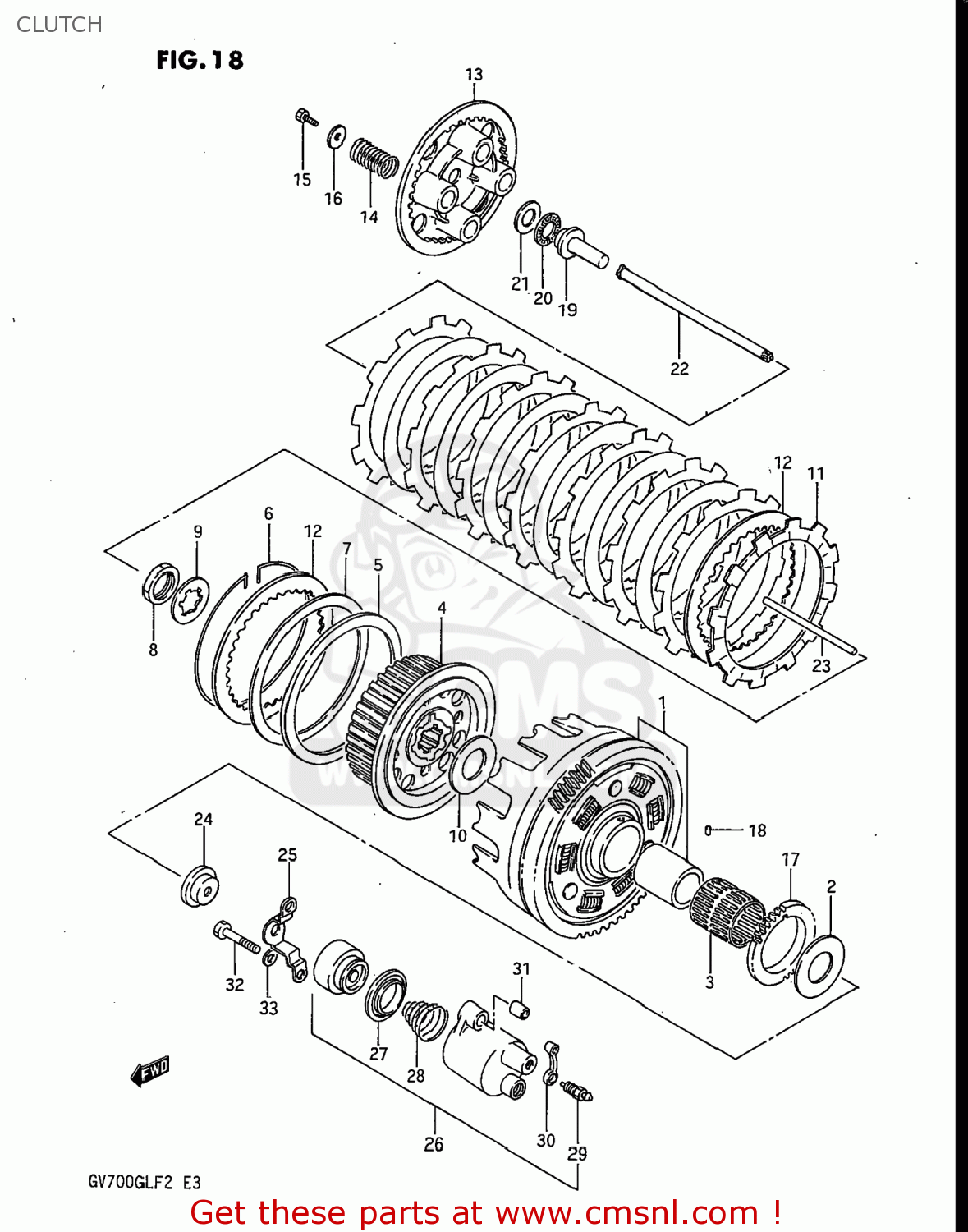

CLUTCH

ref

part #

description

quantity

1

2120007851
ref: 1
21200-07854

GEAR ASSEMBLY,PRIMARY DRIVE

€ 141.50

2

0916025057
ref: 2

WASHER (25X54X2.5)

€ 6.50

3

0926335013
ref: 3

BEARING(35X40X39.8)

€ 29.00

4

2141031304
ref: 4

HUB,CLUTCH SLEEVE

€ 99.00

5

2147145101
ref: 5

SEAT,WAVE WASHER

€ 16.00

6

2148145100
ref: 6

RING,STOPPER

€ 5.00

7

0916400003
ref: 7

WASHER

€ 9.00

8

0914024007
ref: 8

NUT

€ 4.50

9

0916725007
ref: 9

WASHER,LOCK

€ 7.50

10

0916025056
ref: 10

WASHER(25X50X2.5)

€ 9.50

11

2144107A00
ref: 11
21441-12D01

PLATE,CLUTCH DRIVE

€ 16.50

12

2145131000
ref: 12

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 9.00

13

2146231300
ref: 13

PLATE,CLUTCH PRESSURE

€ 35.00

14

0944020010
ref: 14
09440-20013

SPRING

€ 5.00

15

0110706168
ref: 15
01500-06167

BOLT, UPPER

€ 3.00

16

0916006020
ref: 16
09160-06066

WASHER

€ 2.00

17

1632105A00
ref: 17

GEAR,OIL PUMP DRIVE

€ 38.00

18

0926106002
ref: 18

PIN(6X6)

€ 1.50

19

2312107A00
ref: 19
23121-31E00

PIECE,CLUTCH PUSH

€ 18.50

20

0926315003
ref: 20

BEARING(15X28X2)

€ 7.00

21

0916015015
ref: 21
09160-15045

WASHER

€ 4.00

22

2311007A00
ref: 22

ROD,CLUTCH PUSH

€ 10.50

23

2311105A01
ref: 23

ROD,CLUTCH PUSH

€ 13.50

24

0928506014
ref: 24
09285-06016

OIL SEAL

€ 16.00

25

2311705A02
ref: 25

PLATE,CLUTCH PUSH ROD

€ 1.50

26

2316005A01
ref: 26
23160-05A02

CYLINDER,CLUTCH RELEASE

€ 121.50

27

2316305A00
ref: 27

CUP,CLUTCH CYLINDER

€ 7.50

28

2316405A00
ref: 28

SPRING,CLUTCH CYLINDER

€ 3.50

29

5912101A00
ref: 29

BLEEDER

€ 8.50

30

5912201A00
ref: 30

CAP,BLEEDER

€ 4.50

31

0421109129
ref: 31

PIN

€ 2.00

32

0110706356
ref: 32
01500-0635A

BOLT ,6X35

€ 2.50
