CLUTCH HOSE
GV700GLF2 MADURA 1985 (F) USA (E03)

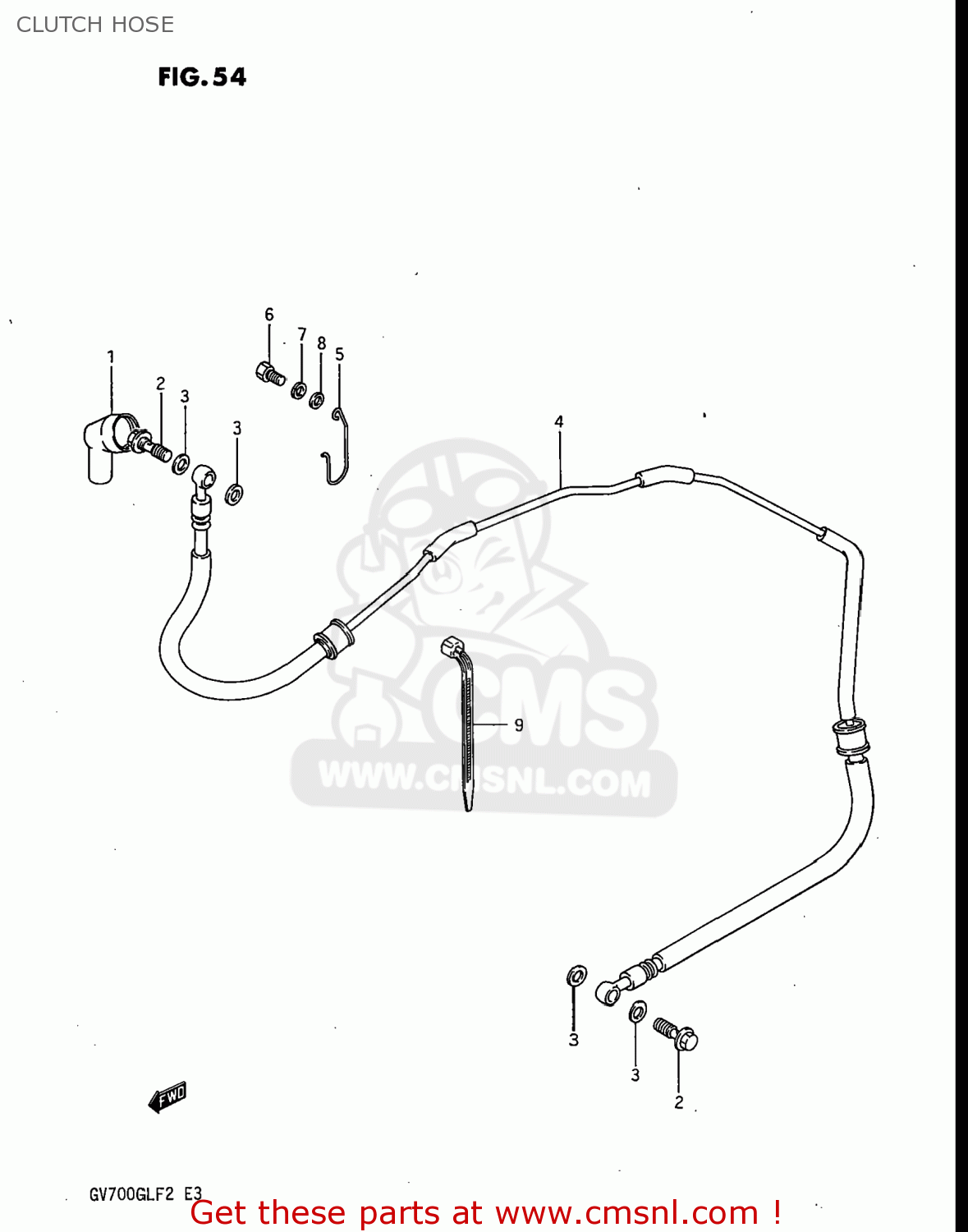

Clutch hose diagram GV700GLF2 MADURA 1985 (F) USA (E03)
CLUTCH HOSE GV700GLF2 MADURA 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5971118400
ref: 1
59711-49001
BOOT,MASTER CYLINDER
€ 8.50
2
0936010017
ref: 2
BOLT UNION
€ 6.50
3
0916110009
ref: 3
WASHER(10X15X1.5)
€ 2.00
4
5991005A02
ref: 4
HOSE,CLUTCH
€ 279.00
5
5954105A00
ref: 5
GUIDE,CLUTCH HOSE
€ 0.00
6
0110706128
ref: 6
01500-06127
BOLT
€ 2.00
7
0832121068
ref: 7
08321-01067
LOCK WASHER
€ 2.50
8
0832221068
ref: 8
08322-01067
WASHER
€ 2.00
9
0940718402
ref: 9
CLAMP(L:165)
€ 2.50
