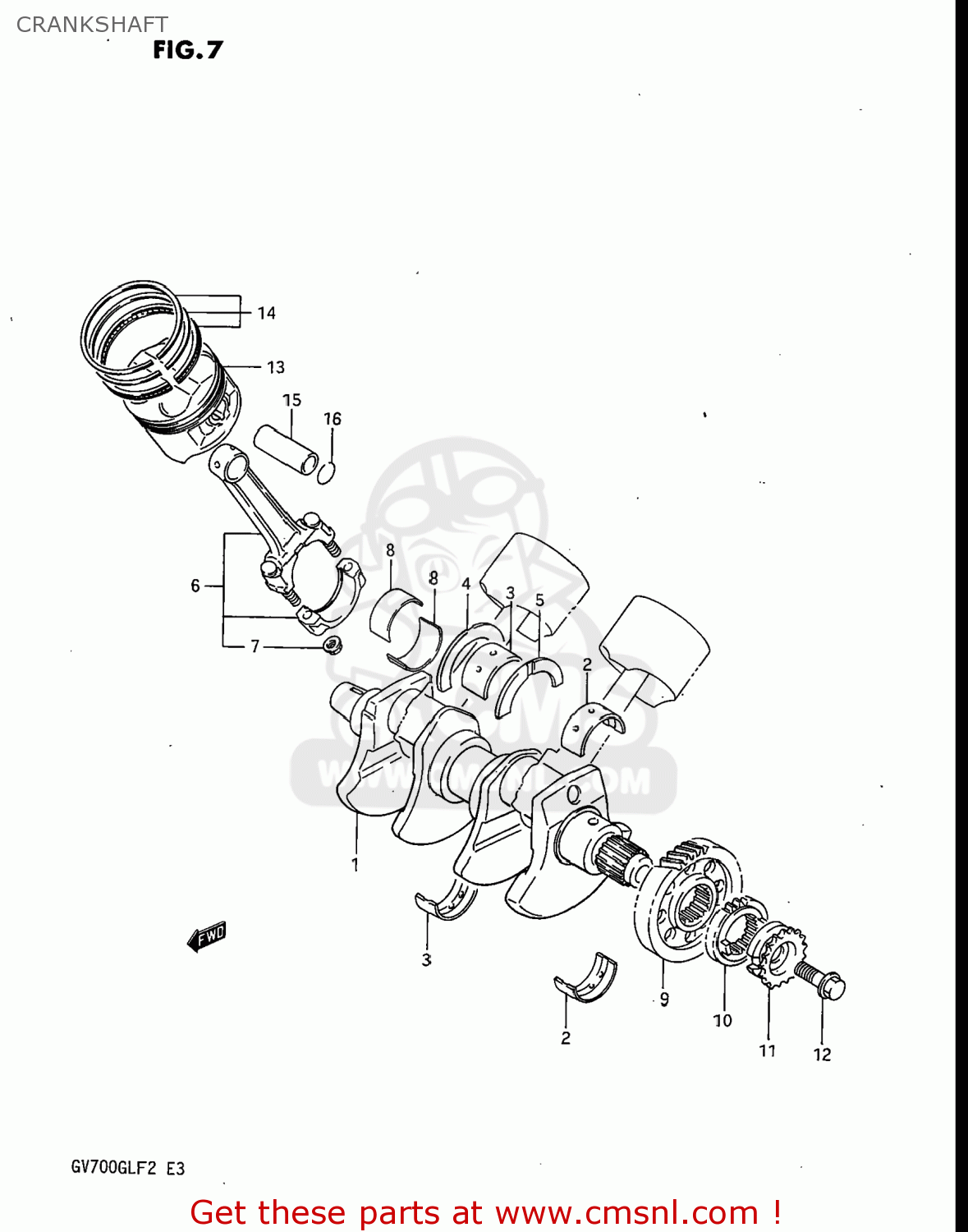

CRANKSHAFT

ref

part #

description

quantity

1

1222007A01
ref: 1

CRANKSHAFT

€ 459.00

2-1

1222905A000A0
ref: 2-1

METAL CRANKSHAFT

€ 7.00

2-2

1222905A000B0
ref: 2-2

METAL CRANKSHAFT

€ 9.00

2-3

1222905A000C0
ref: 2-3

METAL CRANKSHAFT

€ 7.50

2-4

1222905A000D0
ref: 2-4

METAL CRANKSHAFT

€ 7.00

3-1

1222905A100A0
ref: 3-1

METAL CRANKSHAFT (GREEN)

€ 9.00

3-2

1222905A100B0
ref: 3-2

METAL CRANKSHAFT (BLACK)

€ 6.50

3-3

1222905A100C0
ref: 3-3

METAL CRANKSHAFT (BROWN)

€ 9.00

3-4

1222905A100D0
ref: 3-4

METAL CRANKSHAFT

€ 7.00

4

1222805A000D0
ref: 4

PLATE,CRANK THRUST

€ 6.50

5-1

1222805A000A0
ref: 5-1

PLATE,CRANK THRUST

€ 6.50

5-2

1222805A000B0
ref: 5-2

PLATE,CRANK THRUST

€ 6.50

5-3

1222805A000C0
ref: 5-3

PLATE,CRANK THRUST

€ 6.50

5-4

1222805A000D0
ref: 5-4

PLATE,CRANK THRUST

€ 6.50

5-5

1222805A000E0
ref: 5-5

PLATE,CRANK THRUST

€ 6.50

5-6

1222805A000F0
ref: 5-6

PLATE,CRANK THRUST

€ 6.50

6

1216007A02
ref: 6

CONNECTING ROD ASSEMBLY

€ 57.50

7

0915908033
ref: 7

NUT

€ 2.50

8-1

1216407A010A0
ref: 8-1

BEARING,CRANK PIN

€ 7.00

8-2

1216407A010B0
ref: 8-2

BEARING,CRANK PIN

€ 7.00

8-3

1216407A010C0
ref: 8-3

BEARING,CRANK PIN

€ 6.50

8-4

1216407A010D0
ref: 8-4

BEARING,CRANK PIN

€ 6.50

9

2111107A01
ref: 9
21111-07A02

GEAR,PRIMARY DRIVE

€ 42.00

10

1274405A00
ref: 10

SPROCKET,CHAIN DRIVE I

€ 48.50

11

1753105A01
ref: 11

SPROCKET,WATER PUMP DRIVE

€ 30.00

12

0910012030
ref: 12

BOLT 12X30

€ 2.50

13-1

1211107A03
ref: 13-1

PISTON (STD)

€ 27.50

13-2

1211107A03050
ref: 13-2

PISTON (OS:0.5)

€ 18.50

13-3

1211107A03100
ref: 13-3

PISTON (OS:1.0)

€ 18.50

14-1

1214007A21
ref: 14-1

RING SET,PISTON

€ 18.00

14-2

1214007A21050
ref: 14-2

RING SET,PISTON (OS:0.5)

€ 16.50

14-3

1214007A21100
ref: 14-3

RING SET,PISTON (OS:1.0)

€ 17.50

15

1215131302
ref: 15

PIN,PISTON

€ 13.00

16

0938118003
ref: 16
09381-18005

CIRCLIP

€ 3.00

all assemblies
