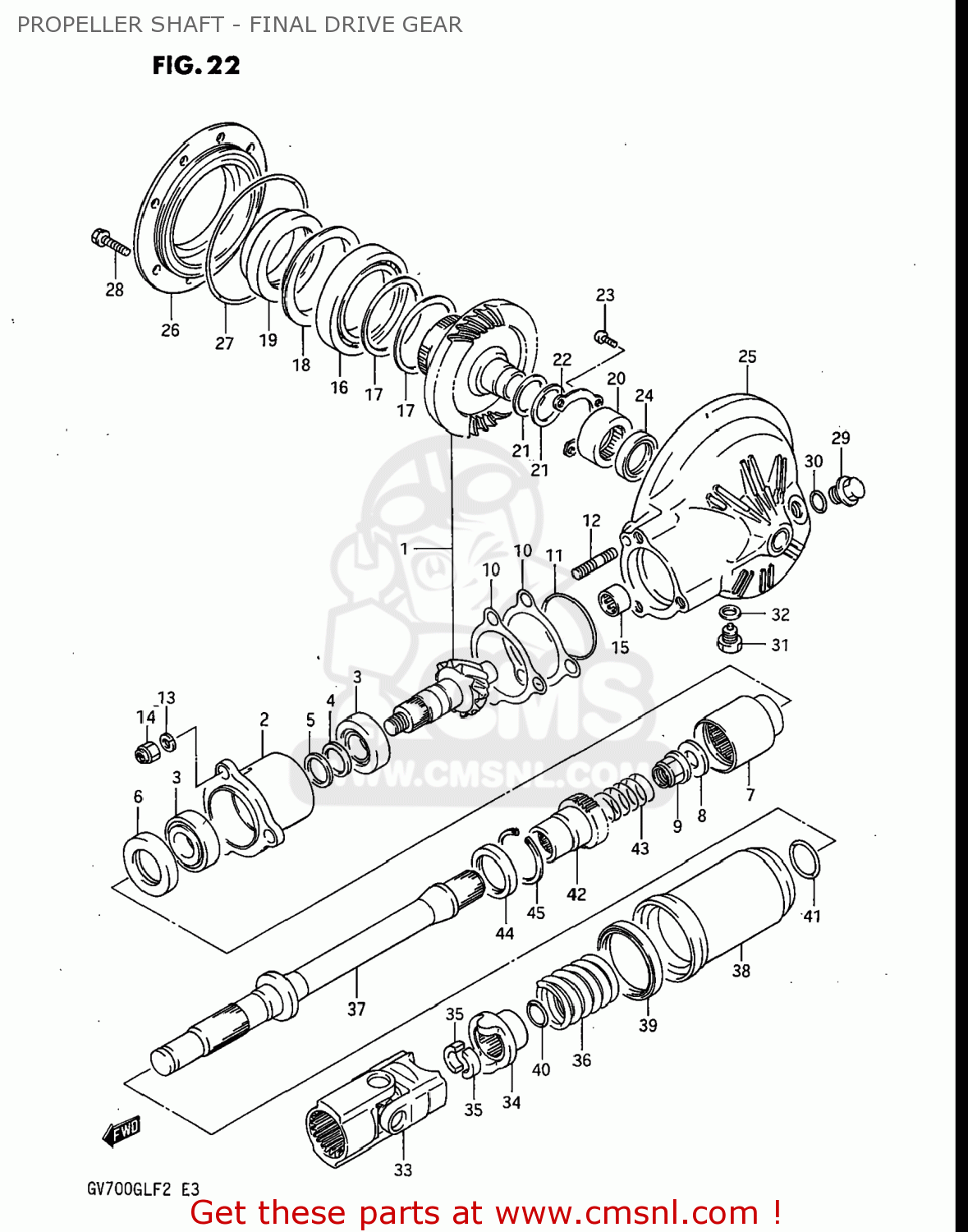

PROPELLER SHAFT - FINAL DRIVE GEAR - GV700GLF2 MADURA 1985 (F) USA (E03)

ref

part #

description

quantity

2730007860
ref:

GEAR SET,FINAL BEVEL

€ 491.50

1

2730007851
ref: 1

GEAR SET,FINAL BEVEL

€ 255.50

2

2744107A00
ref: 2

HOUSING,FINAL BEVEL GEAR

€ 50.00

3

0926525014
ref: 3
09265-25024

BEARING

€ 44.00

4

0918025071
ref: 4

SPACER

€ 2.50

5-1

0918125006
ref: 5-1

SHIM (25X30X1.6)

€ 3.00

5-2

0918125007
ref: 5-2

SHIM (25X30X1.62)

€ 3.00

5-3

0918125008
ref: 5-3

SHIM (25X30X1.64)

€ 3.00

5-4

0918125009
ref: 5-4

SHIM (25X30X1.66)

€ 3.00

5-5

0918125010
ref: 5-5

SHIM (25X30X1.68)

€ 3.00

5-6

0918125011
ref: 5-6

SHIM (25X30X1.7)

€ 3.00

5-7

0918125012
ref: 5-7

SHIM (25X30X1.8)

€ 3.00

5-8

0918125013
ref: 5-8

SHIM (25X30X1.9)

€ 3.00

5-9

0918125014
ref: 5-9

SHIM (25X30X2

€ 3.00

6

0928332017
ref: 6

SEAL,OIL(32X54X7)

€ 16.50

7

2717245100
ref: 7

GEAR,FINAL DRIVE

€ 47.00

8

0916014021
ref: 8

WASHER(14X29X4)

€ 5.00

9

0915914010
ref: 9

NUT

€ 11.00

10-1

2744545100
ref: 10-1

SHIM,DRIVE GEAR HOUSING

€ 4.00

10-2

2744545102
ref: 10-2

SHIM,DRIVE GEAR HOUSING

€ 4.50

10-3

2744545101
ref: 10-3

SHIM,DRIVE GEAR HOUSING

€ 5.50

10-4

2744545103
ref: 10-4

SHIM,DRIVE GEAR HOUSING

€ 5.50

11

0928063004
ref: 11

O RING(D:2.4,ID:62.6)

€ 9.50

12

0910810064
ref: 12

STUD

€ 0.00

13

0832131105
ref: 13
08321-0110A

LOCK WASHER

€ 3.00

14

0915910036
ref: 14
09159-10027

NUT

€ 3.00

15

0926316023
ref: 15

BEARING

€ 17.50

16

0926270001
ref: 16

BEARING(70X110X13)

€ 78.50

17-1

2732734200
ref: 17-1

SHIM,DRIVEN GEAR BEARING T0.35

€ 2.50

17-2

2732734210
ref: 17-2

SHIM,DRIVEN GEAR BEARING T.040

€ 3.00

17-3

2732734220
ref: 17-3

SHIM,DRIVEN GEAR BEARING T0.50

€ 3.00

17-4

2732734230
ref: 17-4

SHIM,DRIVEN GEAR BEARING T0.60

€ 3.00

18

2732834200
ref: 18

PLATE,FINAL DRIVEN BRG OIL

€ 4.00

19

0928970001
ref: 19

SEAL,OIL(70X96X16)

€ 41.50

20

0926332007
ref: 20

BEARING(32X46X17.7)

€ 44.00

21-1

2732634241
ref: 21-1

SHIM,FINAL DRIVEN GEAR

€ 3.50

21-2

2732634231
ref: 21-2

SHIM,FINAL DRIVEN GEAR

€ 2.50

21-3

2732634221
ref: 21-3

SHIM,FINAL DRIVEN GEAR

€ 3.50

21-4

2732634211
ref: 21-4

SHIM,FINAL DRIVEN GEAR

€ 2.50

21-5

2732634201
ref: 21-5

SHIM,FINAL DRIVEN GEAR

€ 2.50

22

2732934200
ref: 22

RETAINER,FINAL DRIVEN GEAR BRG

€ 4.50

23

0211206128
ref: 23
02112-06127

SCREW 6X12

€ 2.00

24

0928330028
ref: 24

SEAL,OIL(30X42X7)

€ 7.50

25

2745007A03
ref: 25

CASE,FINAL GEAR

€ 220.50

26

2746007A00
ref: 26
27460-07A01

CASE,FINAL GEAR BEARING

€ 118.50

27

0928000015
ref: 27

O RING(D:3.5,ID:131.6)

€ 9.50

28

0151708258
ref: 28
01550-08257

BOLT

€ 2.50

29

0924718001
ref: 29

PLUG

€ 8.00

30

0928018004
ref: 30

O RING(D:2.4,ID:17.8)

€ 5.50

31

0924714019
ref: 31
09247-14036

PLUG

€ 5.50

32

0916814004
ref: 32

GASKET(14X19.2X2) (NAS)

€ 2.50

33

2710005A02
ref: 33

YOKE,UNIVERSAL JOINT

€ 241.50

34

2714205A00
ref: 34

DOG,OUTPUT CAM

€ 44.00

35

2254134200
ref: 35

STOPPER,CAM DOG

€ 4.50

36

0944035002
ref: 36

SPRING

€ 19.00

37

2715107A03
ref: 37

SHAFT,PROPELLER

€ 64.00

38

2716005A00
ref: 38

COVER,PROPELLER SHAFT DA

€ 43.00

39

0928352003
ref: 39

OIL SEAL

€ 5.50

40

0928016005
ref: 40

O RING(D:2.4,ID:15.8)

€ 1.50

41

0928024006
ref: 41

O RING(D:2,ID:23.5)

€ 1.50

42

2717145101
ref: 42

COUPLING,PROPELLER SHAFT

€ 38.00

43

0944027005
ref: 43

SPRING

€ 3.50

44

0928330026
ref: 44

SEAL,OIL(30X40.5X5.5)

€ 9.00

45

0938140003
ref: 45

CIRCLIP

€ 5.00
