LEFT HANDLE SWITCH

GV700GLF2 MADURA 1985 (F) USA (E03)

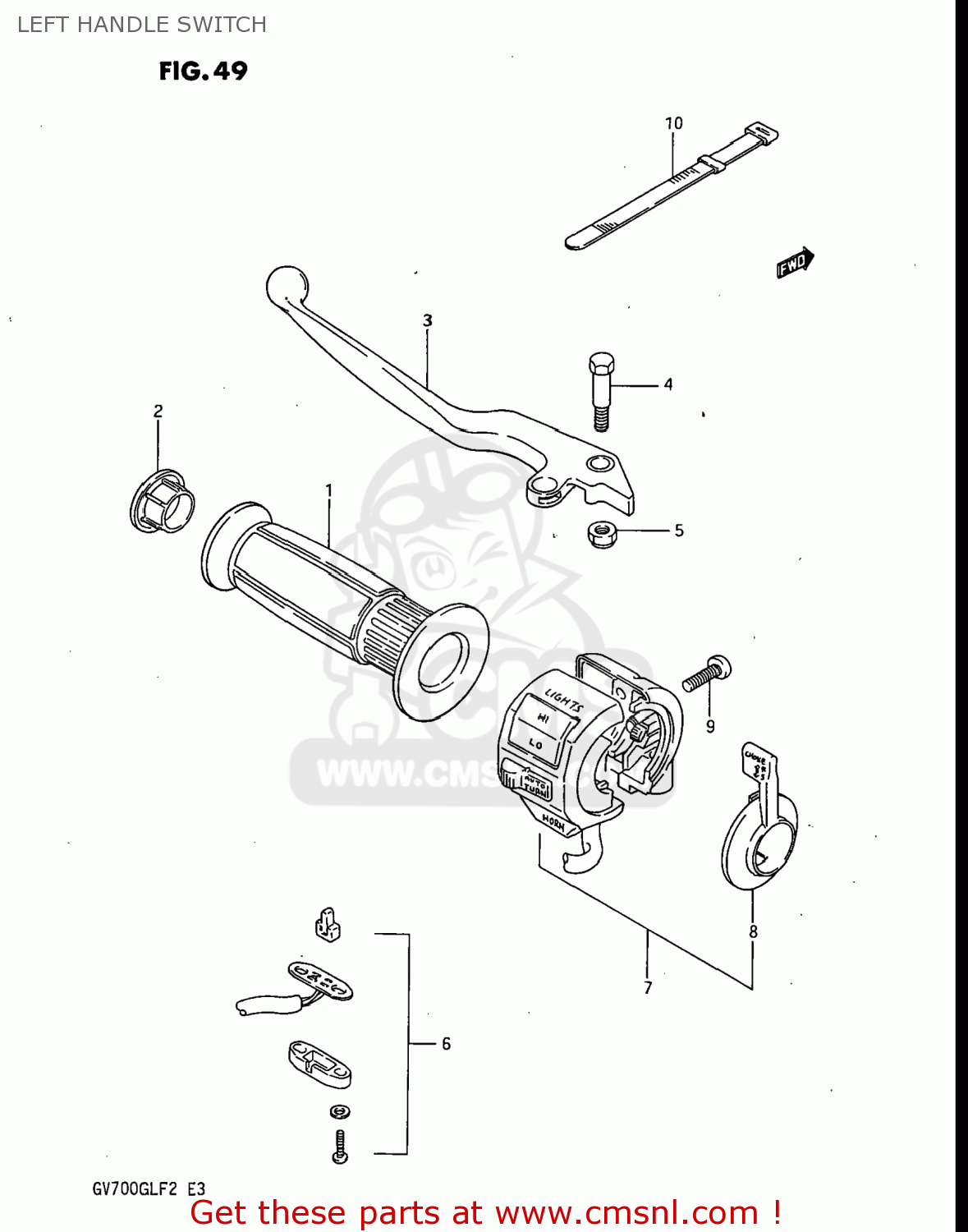

Left handle switch diagram GV700GLF2 MADURA 1985 (F) USA (E03)

prices are in EUR

ref

part #

description

quantity

5721105A00
ref: 1

GRIP,LEFT

€ 13.00

5721605A00
ref: 2

CAP,GRIP END

€ 5.00

5750008A00
ref: 3
57621-38A02

LEVER,CLUTCH (BLACK)

€ 31.50

5743105A00
ref: 4

BOLT,LEVER

€ 8.50

0831921065
ref: 5
08319-2106B

NUT

€ 2.50

5756008A00
ref: 6
57560-18D10

SWITCH ASSEMBLY,CLUTCH

€ 20.50

3740007A70
ref: 7
37400-07A72

SWITCH ASSEMBLY,HANDLE,LEFT

€ 60.50

3757105A00
ref: 8
37571-05A71

LEVER,CHOKE

€ 10.50

0211205205
ref: 9
02112-0520B

SCREW 5X20

€ 2.50

0940712402
ref: 10

CLAMP(L:120)

€ 3.00
