CLUTCH MASTER CYLINDER

GV700GLF2 MADURA 1985 (F) USA (E03)

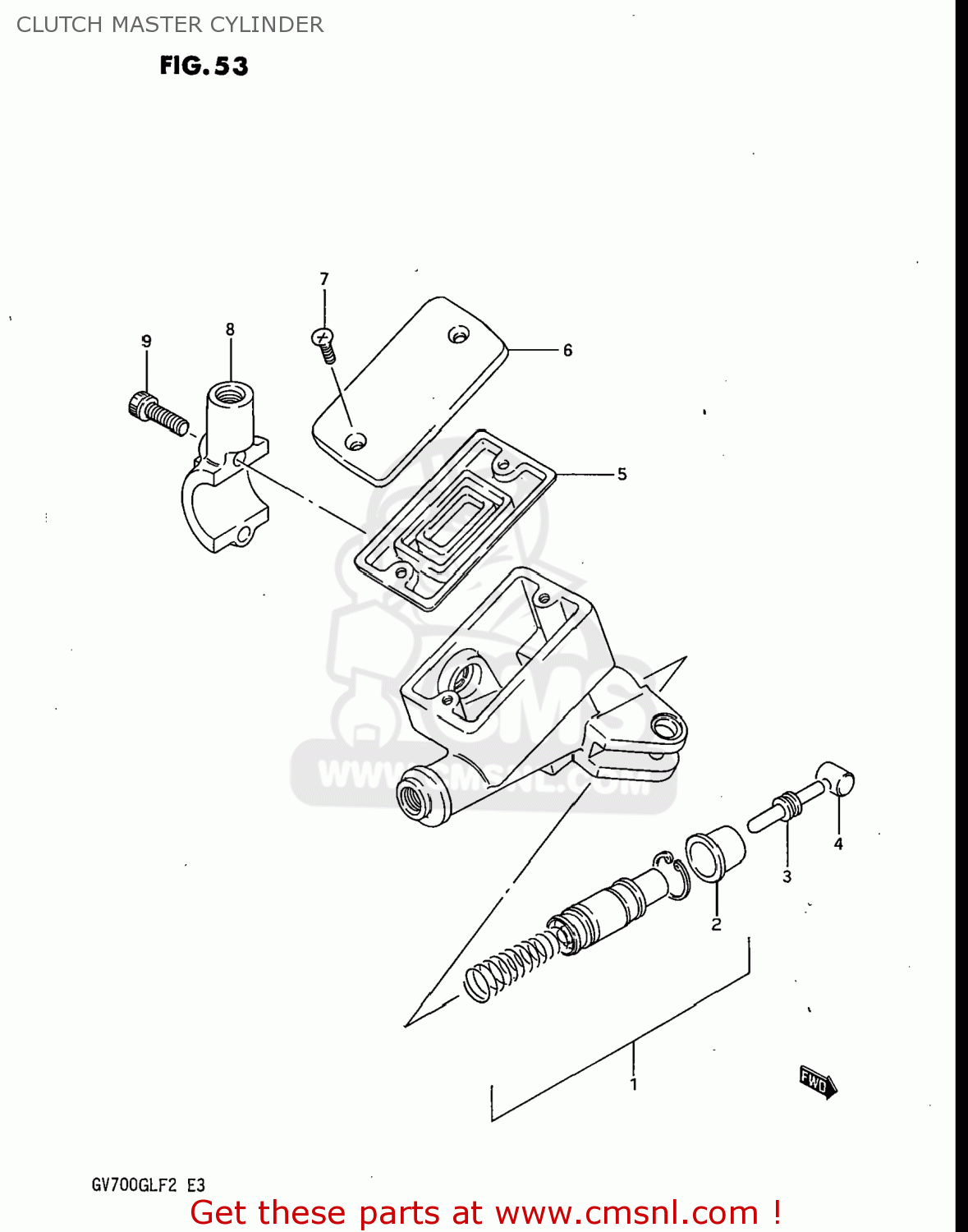

Clutch master cylinder diagram GV700GLF2 MADURA 1985 (F) USA (E03)

CLUTCH MASTER CYLINDER GV700GLF2 MADURA 1985 (F) USA (E03)

CLUTCH MASTER CYLINDER GV700GLF2 MADURA 1985 (F) USA (E03)

prices are in EUR

ref

part #

description

quantity



5980005A00
ref:

CYLINDER ASSY,CLUTCH MASTER

€ 258.50

1

5980008810
ref: 1

PISTON & CUP SET

€ 36.50

2

5966644300
ref: 2

BOOT

€ 6.00

3

5987108A00
ref: 3

ROD,PUSH

€ 5.50

4

5989208A00
ref: 4

BUSH

€ 5.50

5

5966749460
ref: 5

5966749460

6

6966949350
ref: 6
59669-41C00

CAP

€ 30.00

7

6968949300
ref: 7

SCREW

€ 1.50

8

5967105A00
ref: 8

HOLDER

€ 16.50

9

0711006205
ref: 9
07130-0620B

BOLT

€ 3.00
