TRANSMISSION
GV700GLF2 MADURA 1985 (F) USA (E03)

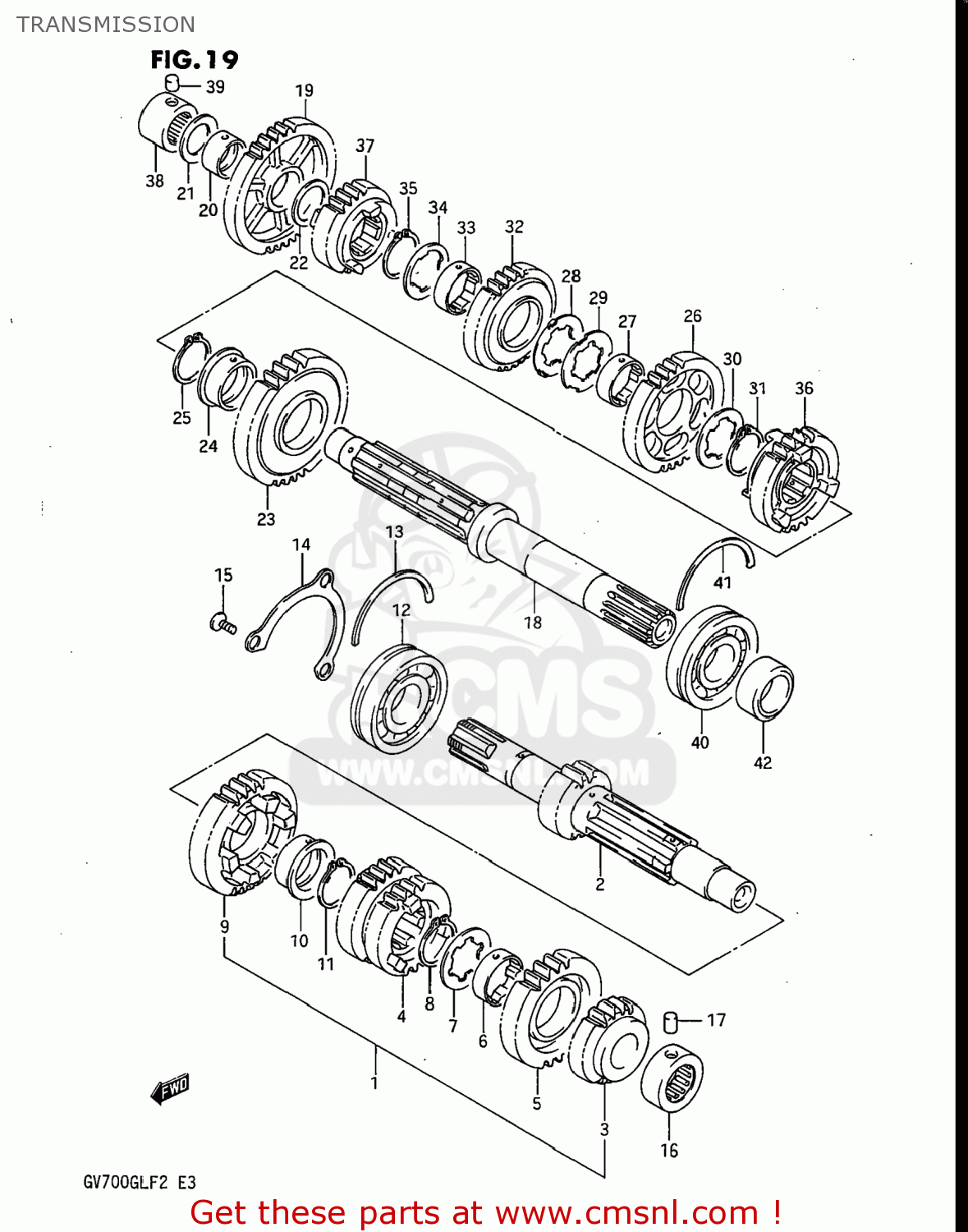

Transmission diagram GV700GLF2 MADURA 1985 (F) USA (E03)
TRANSMISSION GV700GLF2 MADURA 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412007A01
ref: 1
24120-07A02
SHAFT,COUNTER
€ 207.00
2
2410007851
ref: 2
SHAFT,COUNTER
€ 87.00
3
2422107A01
ref: 3
GEAR,SECOND DRIVE
€ 52.00
4
2423107A00
ref: 4
GEAR,THIRD DRIVE
€ 48.50
5
2425107A00
ref: 5
GEAR,FIFTH DRIVE
€ 52.50
6
2433207A00
ref: 6
BUSH
€ 9.50
7
0916728001
ref: 7
WASHER,LOCK
€ 3.00
8
0833111289
ref: 8
08331-3128A
CIRCLIP
€ 2.50
9
2426107A00
ref: 9
GEAR,SIXTH DRIVE
€ 43.50
10
0930128001
ref: 10
BUSH(28X32X2)
€ 19.50
11
0833111289
ref: 11
08331-3128A
CIRCLIP
€ 2.50
12
0926225051
ref: 12
09262-25105
BEARING(25X62X17)
€ 59.50
13
0939062006
ref: 13
09390-62012
C-RING
€ 5.00
14
2474105A00
ref: 14
PLATE,COUNTERSHAFT BEARING
€ 6.00
15
0212206168
ref: 15
02122-06167
SCREW
€ 2.00
16
0926320054
ref: 16
ROLLER BEARING (20X36X1
€ 36.50
17
0422107209
ref: 17
PIN
€ 1.50
18
2413107A03
ref: 18
SHAFT,DRIVE
€ 104.00
19
2431107A00
ref: 19
GEAR,FIRST DRIVEN
€ 40.50
20
0930022005
ref: 20
24312-02F00
BUSHING
€ 19.50
21
0821120343
ref: 21
WASHER
€ 2.50
22
0821122321
ref: 22
WASHER
€ 3.00
23
2432107A00
ref: 23
GEAR,SECOND DRIVEN
€ 46.50
24
0930128001
ref: 24
BUSH(28X32X2)
€ 19.50
25
0833111289
ref: 25
08331-3128A
CIRCLIP
€ 2.50
26
2433107A00
ref: 26
GEAR,THIRD DRIVEN
€ 42.00
27
2433207A00
ref: 27
BUSH
€ 9.50
28
0916928001
ref: 28
WASHER
€ 3.00
29
0916728002
ref: 29
WASHER,LOCK
€ 3.00
30
0916728001
ref: 30
WASHER,LOCK
€ 3.00
31
0833111289
ref: 31
08331-3128A
CIRCLIP
€ 2.50
32
2434107A00
ref: 32
GEAR,FOURTH DRIVEN
€ 42.00
33
2433207A00
ref: 33
BUSH
€ 9.50
34
0916728001
ref: 34
WASHER,LOCK
€ 3.00
35
0833111289
ref: 35
08331-3128A
CIRCLIP
€ 2.50
36
2435107A03
ref: 36
GEAR,FIFTH DRIVEN
€ 58.00
37
2436107A03
ref: 37
GEAR,SIXTH DRIVEN
€ 36.00
38
0926320040
ref: 38
BEARING(20X34X20)
€ 42.50
39
0422107209
ref: 39
PIN
€ 1.50
40
0926225065
ref: 40
09262-25105
BALL BEARING 25X62X17
€ 59.50
41
0939062006
ref: 41
09390-62012
C-RING
€ 5.00
42
2413645100
ref: 42
SPACER,DRIVESHAFT,LEFT
€ 13.50
