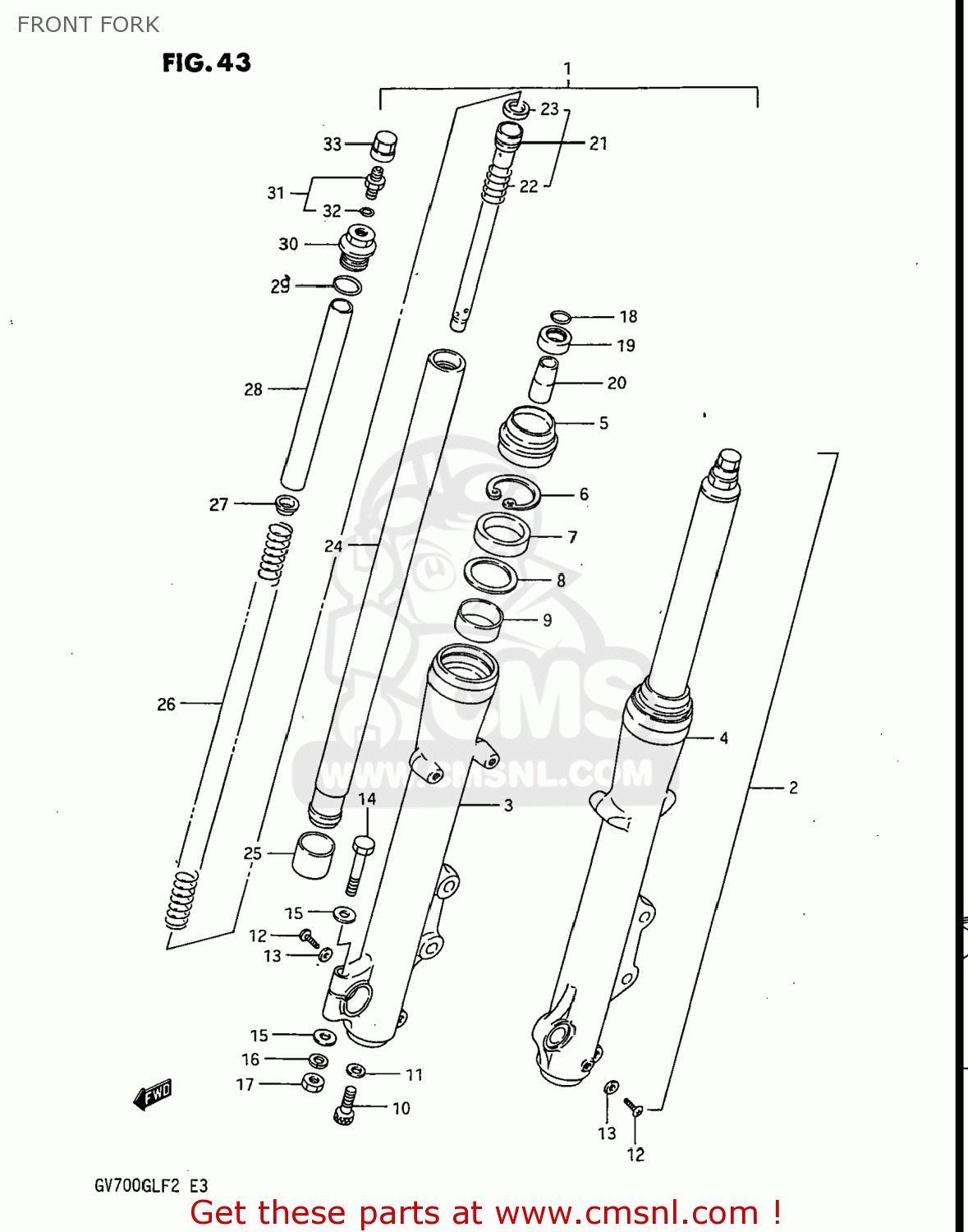

FRONT FORK

ref

part #

description

quantity

1

5110307A00
ref: 1

DAMPER ASSEMBLY,FRONT FORK

€ 308.50

2

5110407A00
ref: 2

DAMPER ASSEMBLY,LEFT

€ 255.50

3

5113007A00
ref: 3

TUBE,OUTER,RIGHT

€ 129.50

4

5114007A00
ref: 4

TUBE,OUTER,LEFT

€ 125.50

5

5117307A00
ref: 5

SEAL,DUST

€ 13.00

6

5115649440
ref: 6

RING,OIL SEAL STOPPER

€ 5.50

7

5115307A00
ref: 7

SEAL,OIL

€ 17.50

8

5115807A00
ref: 8

WASHER,FORK OIL SEAL

€ 4.00

9

5116707A00
ref: 9

METAL,FR FORK SLIDE

€ 9.00

10

5114740300
ref: 10

BOLT,CYLINDER

€ 5.50

11

5114840300
ref: 11

GASKET,CYLINDER (NAS)

€ 2.50

12

0211204088
ref: 12
02112-04087

SCREW

€ 1.50

13

5118303010
ref: 13

GASKET,DRAIN,PLUG (NAS)

€ 3.00

14

0110708508
ref: 14
01500-08507

BOLT 8X50

€ 3.00

15

0832211088
ref: 15
08322-01087

WASHER

€ 2.00

16

0832131088
ref: 16
08321-01087

WASHER,LOCK,8.

€ 2.00

17

0831012088
ref: 17
08310-00087

NUT

€ 2.00

18

5119805A00
ref: 18

RING,SNAP

€ 0.00

19

5119305A00
ref: 19

NO PRODUCT DESCRIPTION AVAILABLE

€ 8.00

20

5119505A00
ref: 20

PIECE,OIL LOCK

€ 13.50

21

5114605A00
ref: 21

CYLINDER,FRONT FORK

€ 47.50

22

5117749440
ref: 22

SPRING,REBOUND

€ 6.50

23

5119605A00
ref: 23

RING,PISTON

€ 7.50

24

5111007A00
ref: 24

TUBE,FORK,INNER

€ 211.50

25

5112107A00
ref: 25

METAL,SLIDE FR FORK

€ 18.50

26

5117105A00
ref: 26

SPRING,FRONT FORK

€ 23.50

27

5117240300
ref: 27

GUIDE

€ 5.00

28

5117605A00
ref: 28

SPACER,FRONT FORK SPRING

€ 0.00

29

5111740300
ref: 29

O RING

€ 2.50

30

5135107A00
ref: 30

CAP,FORK INNER TUBE

€ 19.50

31

5129343400
ref: 31
62274-14400

VALVE,FRONT FORK AIR

€ 8.00

32

5111714210
ref: 32
09280-06005

O-RING

€ 2.50

33

5129449010
ref: 33

CAP,FRONT FORK AIR VALVE

€ 5.50
