prices are in EUR
ref
part #
description
quantity

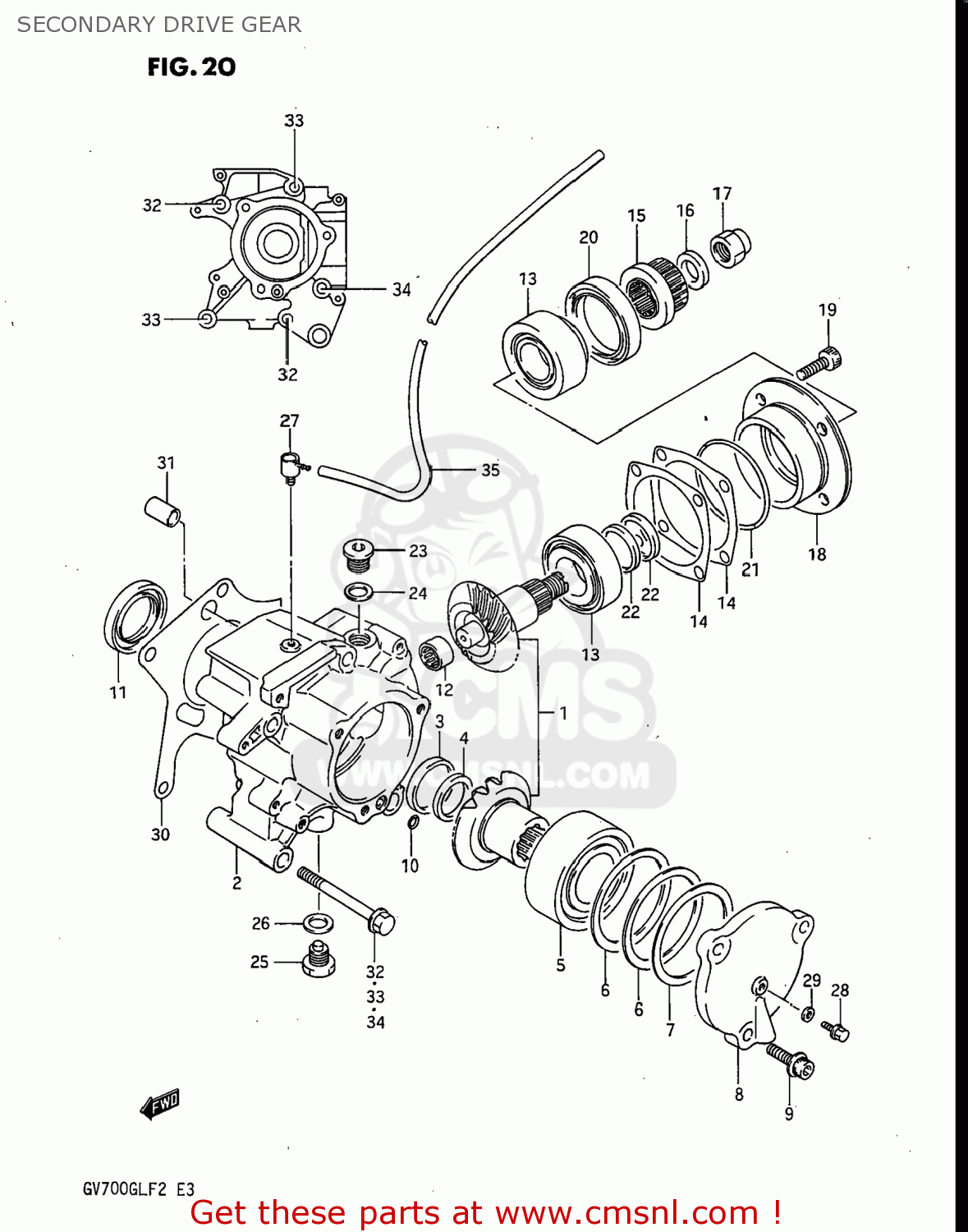

GEAR/CASE SET,SECONDARY BEVEL
1
GEAR,SECONDARY DRIVEN BEVEL
3
HOUSING,SECONDARY DRIVE SHIM
4-10
SHIM,SECONDARY DRIVE
4-11
SHIM,SECONDARY DRIVE
4-12
SHIM,SECONDARY DRIVE
4-13
SHIM,SECONDARY DRIVE
4-14
SHIM,SECONDARY DRIVE
4-15
SHIM,SECONDARY DRIVE
4-16
SHIM,SECONDARY DRIVE
4-17
SHIM,SECONDARY DRIVE
4-18
SHIM,SECONDARY DRIVE
4-19
SHIM,SECONDARY DRIVE
4-4
SHIM,SECONDARY DRIVE,RIGHT (T:3.2)
4-5
SHIM,SECONDARY DRIVE,RIGHT (T:3.2)
4-6
SHIM,SECONDARY DRIVE,RIGHT (T:3.3)
4-7
SHIM,SECONDARY DRIVE,RIGHT (T:3.3)
4-9
NO PRODUCT DESCRIPTION AVAILABLE
6-1
SHIM,SECONDARY DRIVE,LEFT (T:0.3)
6-2
SHIM,SECONDARY DRIVE,LEFT (T:0.3)
6-3
SHIM,SECONDARY DRIVE,LEFT (T:0.4)
7
O-RING (D:1.9 ID:69)
8
HOUSING,SECONDARY DRIVE BEARING
10
O RING(D:1.9,ID:5.7)
11
SEAL,OIL(35X52X6)
12
BEARING(16X24X12)
13
TAPER,ROLLER BEARING
15
COUPLING,SECONDARY DRIVE
16
WASHER(16X29X4)
17
NUT
18
HOUSING,SECONDARY DRIVEN BEVEL
20
SEAL,OIL(48X64X6)
21
O RING(D:2.1,ID:66.2)
22-1
SHIM,SECONDARY DRIVEN HOUSING
22-2
SHIM,SECONDARY DRIVEN HOUSING
22-3
SHIM,SECONDARY DRIVEN HOUSING
22-4
SHIM,SECONDARY DRIVEN HOUSING
22-5
SHIM,SECONDARY DRIVEN HOUSING
23
PLUG
24
GASKET(14X19.2X2) (NAS)
26
GASKET(14X19.2X2) (NAS)
27
BPLUG,BEVEL GEAR BREATHER
29
GASKET(5.3X9.3X1.2) (NAS)
30
GASKET,SECONDARY GEAR CASE (MCA)
31
PIN(10.4X13X22)
