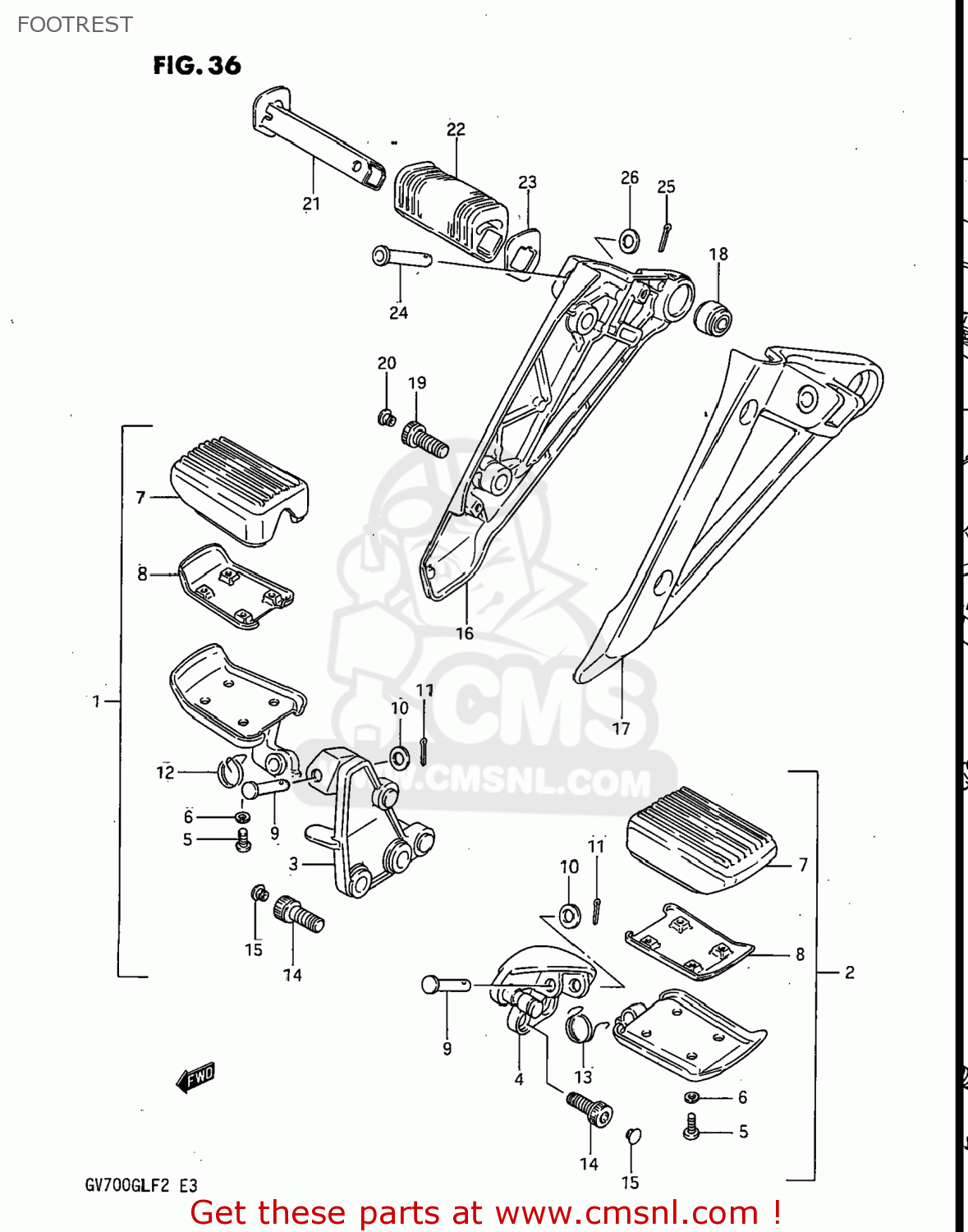

FOOTREST

ref

part #

description

quantity

1

4350107A00
ref: 1

FOOTREST ASSEMBLY,FRONT,RIGHT

€ 98.50

2

4350207A00
ref: 2

FOOTREST ASSEMBLY,FRONT,LEFT

€ 98.50

3

4351007A00
ref: 3

BAR,FRONT FOOTREST,RIGHT

€ 50.50

4

4352007A01
ref: 4

BAR,FRONT FOOTREST,LEFT

€ 41.00

5

0211205108
ref: 5
02112-05107

SCREW

€ 2.00

6

0832121058
ref: 6
08321-0105A

LOCK WASHER

€ 2.00

7

4355107A00
ref: 7

RUBBER,FR FOOTREST

€ 17.00

8

4358007A00
ref: 8

NO PRODUCT DESCRIPTION AVAILABLE

€ 4.50

9

0920008002
ref: 9

PIN

€ 2.00

10

0832211088
ref: 10
08322-01087

WASHER

€ 2.00

11

0411120208
ref: 11
04111-2020A

PIN 20X20

€ 1.50

12

0944819014
ref: 12

SPRING

€ 6.00

13

0944819015
ref: 13

SPRING

€ 4.00

14

0910610031
ref: 14
07130-10357

BOLT

€ 3.50

15

4357534500
ref: 15

CAP

€ 1.50

16

4381107A00
ref: 16

BRACKET,MUFFLER,RIGHT

€ 89.00

17

4382107A00
ref: 17

BRACKET,MUFFLER,LEFT

€ 145.50

18

0931910033
ref: 18

BUSH(10.2X25X19)

€ 6.50

19

0711010258
ref: 19
07130-10257

BOLT

€ 3.00

20

4357534500
ref: 20

CAP

€ 1.50

21-1

4361005A02
ref: 21-1

BAR,REAR FOOTREST,RIGHT

€ 13.00

21-2

4362005A02
ref: 21-2

BAR,REAR FOOTREST,LEFT

€ 13.50

22

4361205A01
ref: 22

RUBBER,REAR FOOTREST

€ 7.00

23-1

4363005A00
ref: 23-1

WASHER,REAR FOOTREST RUBBER

€ 3.00

23-2

4366005A00
ref: 23-2

WASHER,REAR FOOTREST RUBBER

€ 3.00

24

4364105A00
ref: 24
09200-08067

PIN

€ 5.50

25

0411120208
ref: 25
04111-2020A

PIN 20X20

€ 1.50

26

0832211084
ref: 26
08322-0108A

WASHER

€ 1.50

all assemblies
