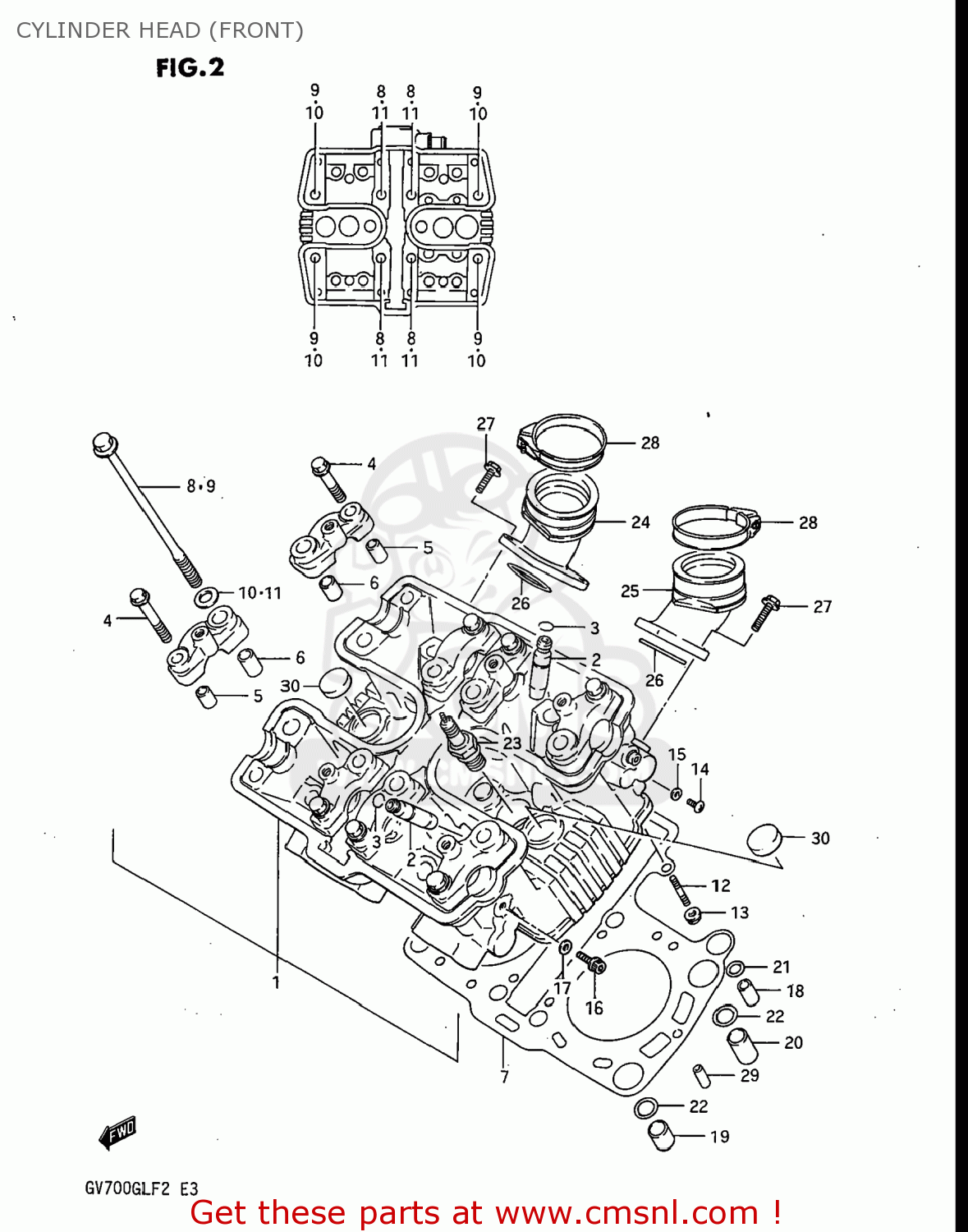

CYLINDER HEAD (FRONT)

ref

part #

description

quantity

1-1

1110107A00
ref: 1-1
11101-07A01

HEAD ASSEMBLY,CYLINDER,FRONT

€ 477.00

1-2

1110107A01
ref: 1-2

HEAD ASSEMBLY,CYLINDER,FRONT

€ 477.00

2

1111505A70
ref: 2
11115-33271

GUIDE,VALVE

€ 18.00

3

0938110004
ref: 3

RING,SNAP

€ 1.50

4

0910308136
ref: 4

BOLT

€ 0.00

5

0920611005
ref: 5
09206-11017

PIN (11X20)(SUS)

€ 6.50

6

0920613004
ref: 6

PIN(10.4X13X22)

€ 3.00

7-1

1114107A03
ref: 7-1
11141-07A04

GASKET,CYLINDER HEAD (MCA)

€ 81.00

7-2

1114107A04
ref: 7-2

GASKET,CYLINDER HEAD,FRONT

€ 81.00

8

0910310104
ref: 8
09103-10133

BOLT

€ 7.50

9

0910310105
ref: 9
09103-10134

BOLT

€ 7.50

10

0916011005
ref: 10

WASHER

€ 0.00

11

0916010085
ref: 11
09160-10142

WASHER (10X20X2.3)

€ 2.00

12

0142106255
ref: 12
01421-0625A

STUD 6X25

€ 2.00

13

0831616064
ref: 13
08316-1006B

NUT 6MM

€ 2.50

14

0211205085
ref: 14
02112-0508A

SCREW

€ 2.00

15

0916805010
ref: 15

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

16

0712006125
ref: 16
07120-0612B

BOLT

€ 3.50

17

0916806018
ref: 17

GASKET(6.2X13X1.2) (NAS)

€ 2.00

18

0920609003
ref: 18

PIN(6.4X9X20)

€ 12.50

19-1

0920613005
ref: 19-1

PIN

€ 0.00

19-2

0920613005
ref: 19-2

PIN

€ 0.00

20

0920613006
ref: 20
09206-13017

PIN

€ 9.00

21

0928009005
ref: 21

O RING(D:1.9,ID:8.6)

€ 4.00

22

0928012009
ref: 22

O RING(D:1.9,ID:12.6)

€ 2.50

23-1

0948200144
ref: 23-1

SPARK PLUG D8EA

€ 3.50

23-2

0948200145
ref: 23-2
09482-00223

SPARK PLUG X24ES-U

€ 3.50

24

1311007A00
ref: 24

PIPE,INTAKE

€ 65.00

25

1312007A00
ref: 25

PIPE,INTAKE

€ 56.50

26

0928035004
ref: 26

O RING(D:2.4,ID:35)

€ 2.00

27

0151706205
ref: 27
01550-0620A

BOLT

€ 2.50

28

1317005A00
ref: 28
09402-52501

CLAMP,PIPE

€ 9.00

29

0621104103
ref: 29
04221-04109

PIN

€ 1.50

30

0924222001
ref: 30

PLUG

€ 2.50
