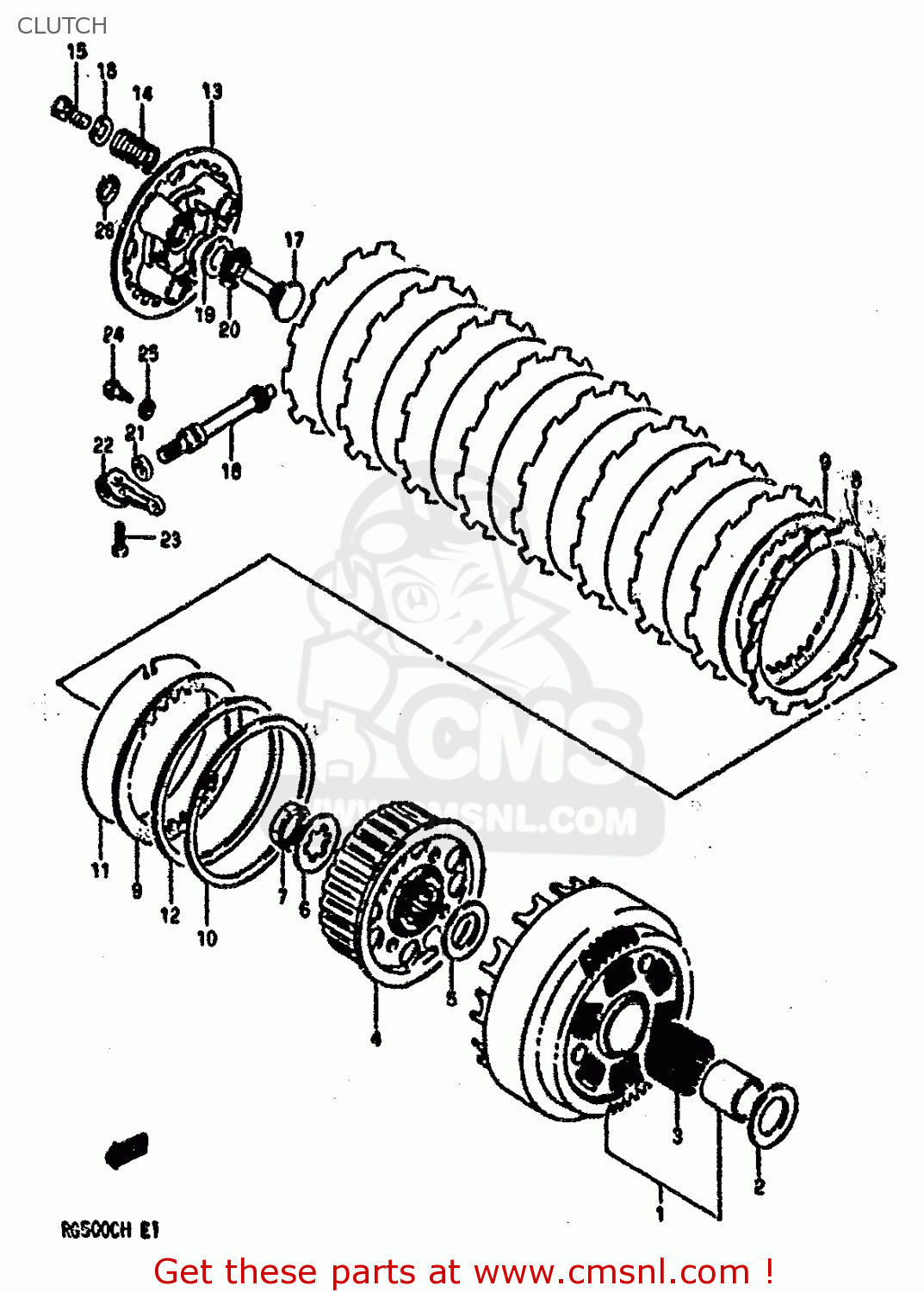

CLUTCH

ref

part #

description

quantity

1

2120021830
ref: 1

GEAR ASSY,PRI DRIVEN

€ 289.00

2

0916022044
ref: 2

WASHER(22X42X2.5)

€ 13.00

3

0926330016
ref: 3

BEARING

€ 12.50

4

2141021A10
ref: 4

HUB,CLUTCH SLEEVE

€ 72.00

5

0916022041
ref: 5

WASHER(22X40X1.5)

€ 13.00

6

0916722005
ref: 6

WASHER,LOCK

€ 2.50

7

0914022005
ref: 7

NUT

€ 4.00

8

2144120A02
ref: 8

PLATE,CLUTCH (MCA)

€ 16.50

9

2145220A01
ref: 9

PLATE,CLUTCH D

€ 9.00

10

2147120A00
ref: 10

SEAT,WAVE WASHER

€ 12.00

11

2148120A01
ref: 11

RING,WAVE WASHER STOPPER

€ 9.00

12

0916400005
ref: 12

WAVE WASHER

€ 14.50

13

2146220A01
ref: 13

DISC,CLUTCH PRESSURE

€ 35.00

14

0944020015
ref: 14

SPRING

€ 5.00

15

0110706166
ref: 15

BOLT

€ 2.00

16

0916006020
ref: 16

WASHER

€ 2.00

17

2316521A10
ref: 17

RACK,CLUTCH RELEASE

€ 26.00

18

2326120A00
ref: 18

PINION,CLUTCH RELEASE

€ 35.00

19

0916015015
ref: 19

WASHER

€ 4.00

20

0926315003
ref: 20

BEARING(15X28X2)

€ 7.00

21

0928510002
ref: 21

OIL SEAL

€ 3.50

22

2327120A01
ref: 22

ARM,RELEASE

€ 23.50

23

0110706207
ref: 23

BOLT

€ 2.00

24

0913506009
ref: 24

BOLT(6X12)

€ 2.00

25

0832221067
ref: 25

WASHER

€ 2.00

26

0938015001
ref: 26

RING,SNAP

€ 2.00
