FRONT MASTER CYLINDER

RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)

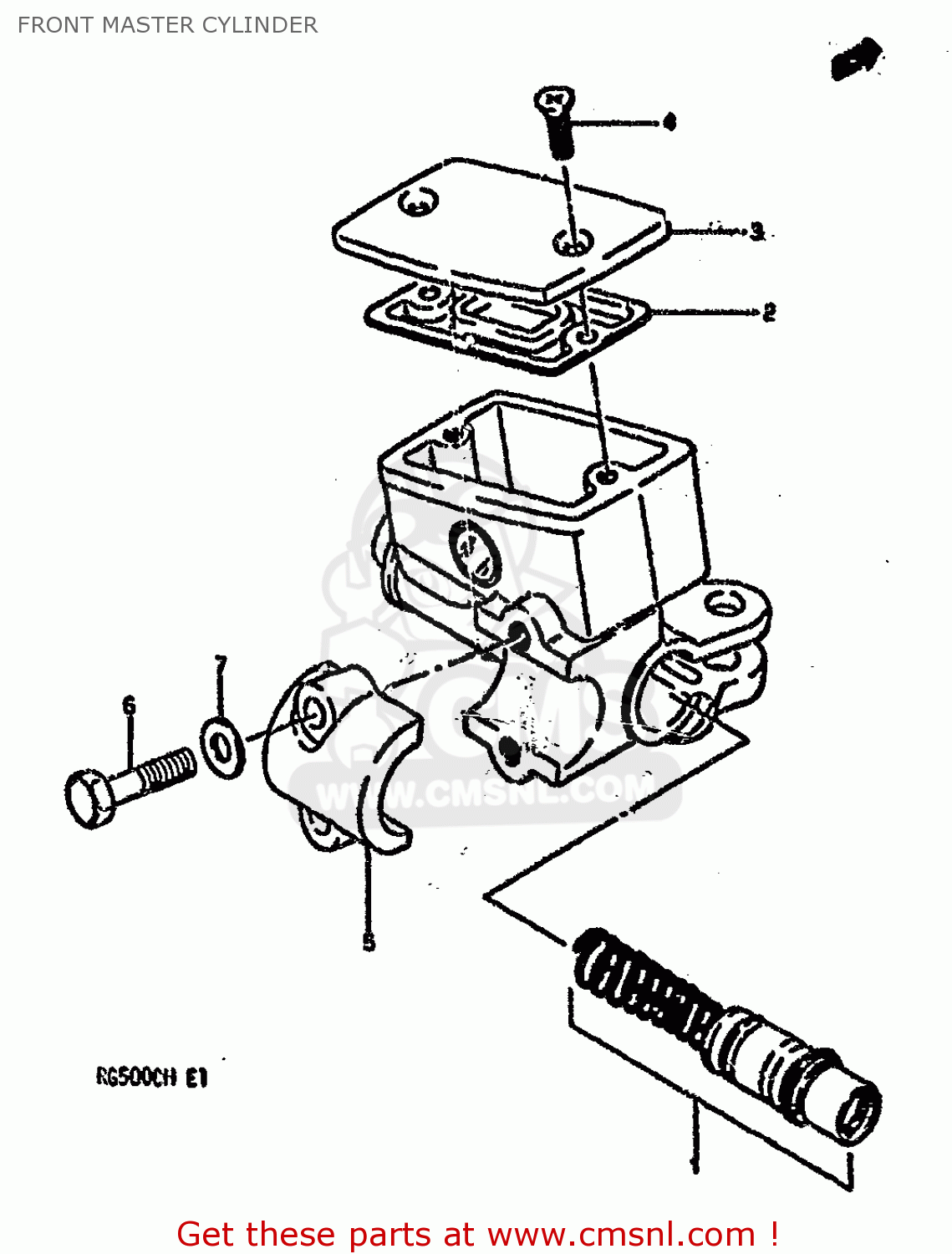

Front master cylinder diagram RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)

FRONT MASTER CYLINDER RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)

FRONT MASTER CYLINDER RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)

prices are in EUR

ref

part #

description

quantity

0

5960044260
ref: 0

CYLINDER ASSY, FRONT MASTER

€ 149.50

1

5960045850
ref: 1

PISTON & CUP SET

€ 38.50

2

5966749466
ref: 2

DIAPHRAGM

€ 0.00

3

5966904A10
ref: 3

CAP

€ 30.00

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967116700
ref: 5

HOLDER,MASTER CYLINDER

€ 18.50

6

0110706255
ref: 6

BOLT

€ 2.50

7

0832221064
ref: 7

WASHER

€ 2.00
