PILOT SHAFT

RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)

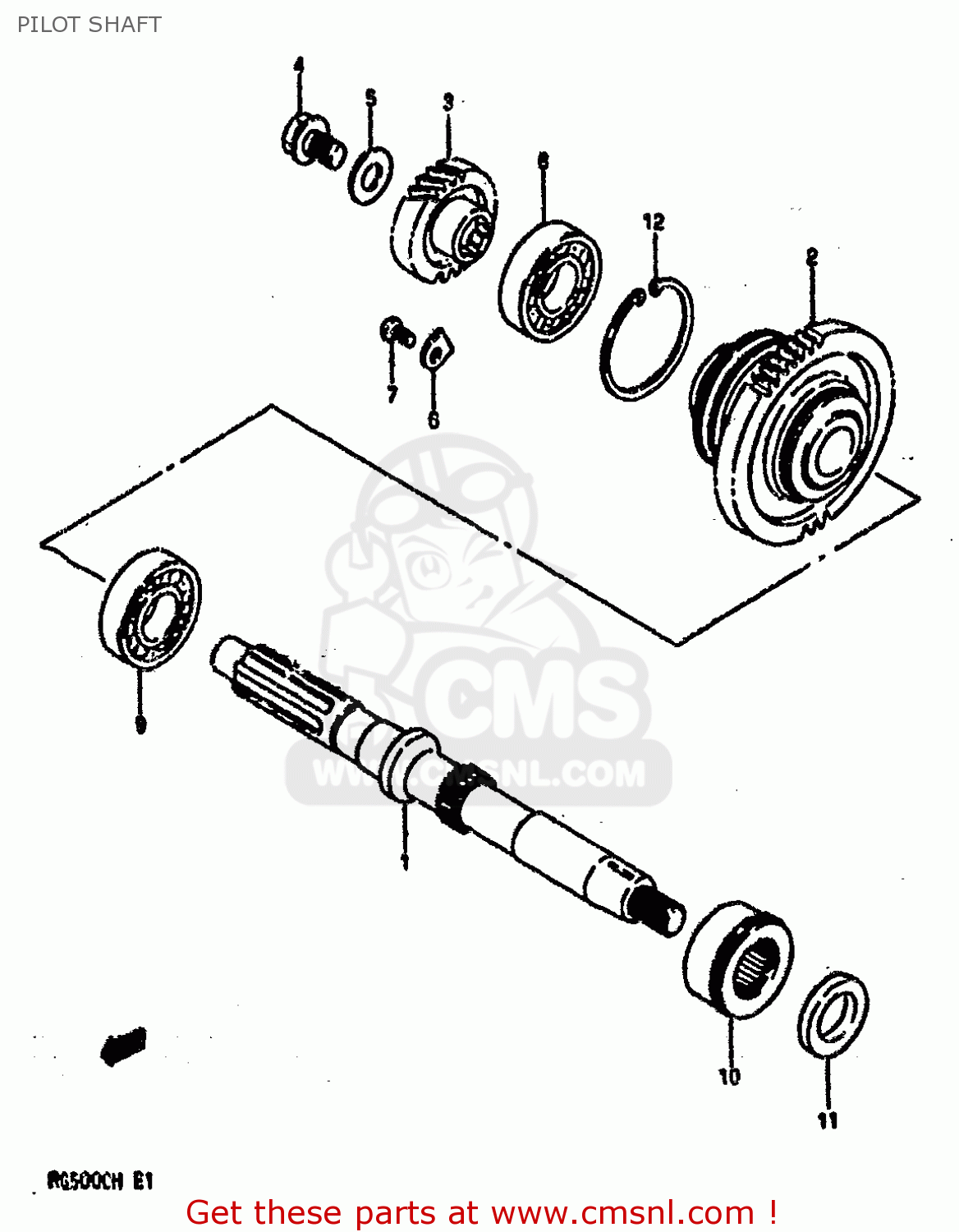

Pilot shaft diagram RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)

prices are in EUR

ref

part #

description

quantity

2171121A20
ref: 1

SHAFT,PILOT

€ 103.00

2176021A00
ref: 2
NT:54

GEAR,PILOT DRIVEN

€ 411.50

2111020A00
ref: 3

GEAR,PRIMARY DRIVE (NT:26)

€ 55.00

2171220A00
ref: 4

BOLT,PILOT SHAFT

€ 3.00

0916414010
ref: 5

WASHER

€ 3.50

2474121A00
ref: 6

RETAINER

€ 2.00

0211206128
ref: 7

SCREW 6X12

€ 2.00

0926222012
ref: 8

BEARING

€ 63.50

0926222018
ref: 9

BEARING(22X50X14)

€ 17.50

0926322042
ref: 10

BEARING(22X32X21.5)

€ 82.00

0928322014
ref: 11

SEAL,OIL(22X33X7)

€ 6.50

0833141569
ref: 12

CIRCLIP

€ 5.50
