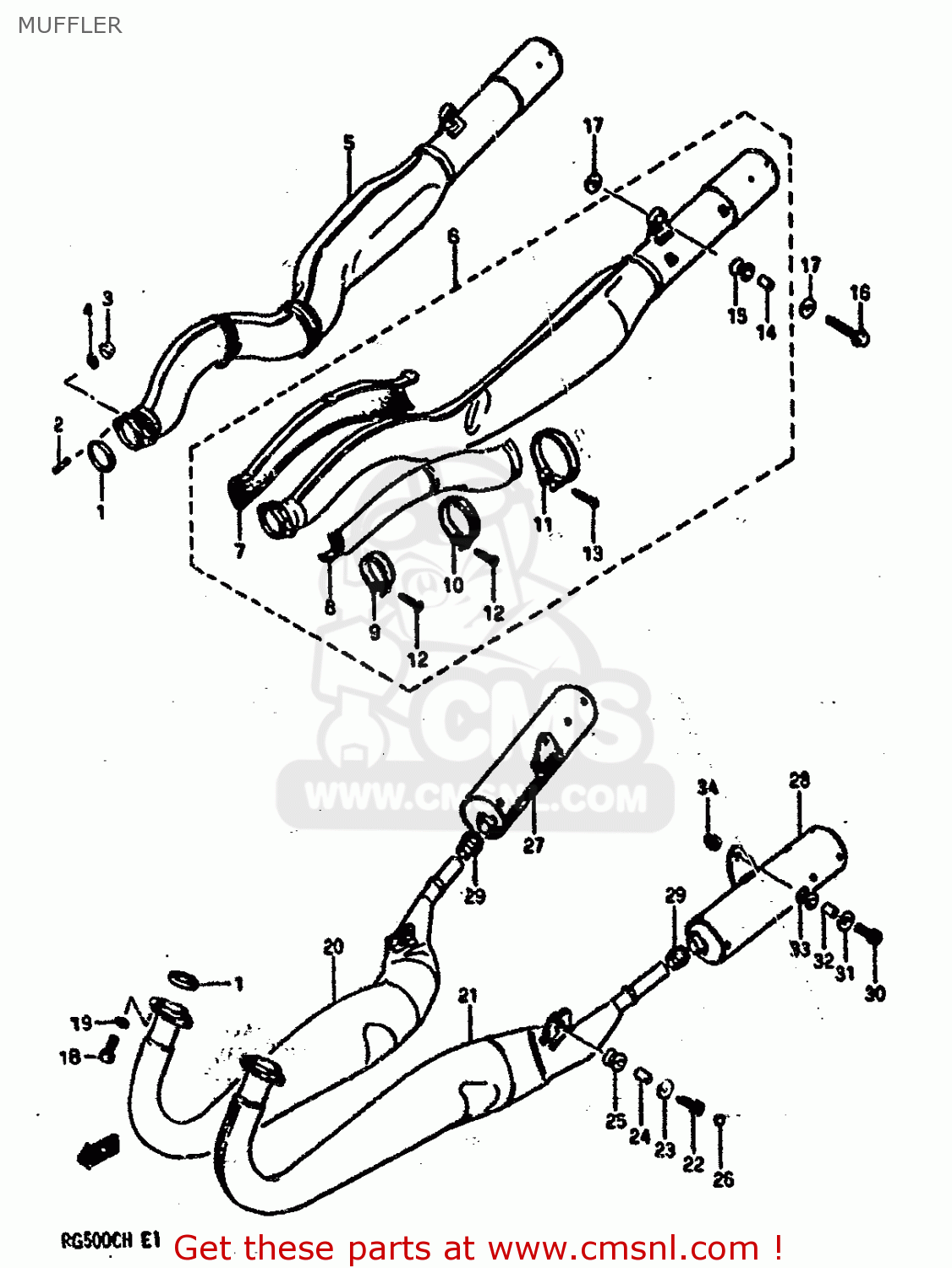

MUFFLER

ref

part #

description

quantity

1

1418111020
ref: 1

GASKET,EXHAUST PIPE (NAS)

€ 8.00

2

0142108205
ref: 2

STUD BOLT

€ 2.00

3

0831616085
ref: 3

NUT 8MM

€ 3.00

4

0832121084
ref: 4

WASHER,LOCK,8.

€ 2.50

5-1

1430221A11
ref: 5-1

MUFFLER ASSY,UPPER RH

€ 493.00

5-2

1430221A20
ref: 5-2
E2,E22

MUFFLER ASSY,UPPER RH

€ 493.00

6-1

1430321A11
ref: 6-1

MUFFLER ASSY,UPPER LH

€ 522.00

6-2

1430321A20
ref: 6-2
E2,E22

MUFFLER ASSY,UPPER LH

€ 522.00

7

1475020A01
ref: 7
RR,LR

COVER,MUFFLER UPPPER

€ 31.50

8

1476020A01
ref: 8
RL,LL

COVER,MUFFLER 1ST UPR

€ 42.00

9

0940242204
ref: 9

CLAMP

€ 4.50

10

0940252204
ref: 10

CLAMP

€ 5.50

11

0940268204
ref: 11

CLAMP

€ 6.00

12

0211204254
ref: 12

SCREW

€ 2.00

13

0211204305
ref: 13

SCREW

€ 2.00

14

0918008102
ref: 14

SPACER (8.6X12X17.5)

€ 3.00

15

0932012026
ref: 15

CUSHION

€ 8.00

16

0151708655
ref: 16

BOLT (8X65)

€ 3.00

17

0916008057
ref: 17

WASHER (8.5X20X1.6)

€ 2.00

18

0110708255
ref: 18

BOLT

€ 2.50

19

0832121084
ref: 19

WASHER,LOCK,8.

€ 2.50

20

1431021A12
ref: 20

MUFFLER,1ST UNDER RH

€ 695.00

21

1434021A12
ref: 21

MUFFLER,1ST UNDER LH

€ 353.00

22

0711008305
ref: 22

BOLT, REAR (8X30)

€ 3.00

23

0916008057
ref: 23

WASHER (8.5X20X1.6)

€ 2.00

24

0918008102
ref: 24

SPACER (8.6X12X17.5)

€ 3.00

25

0932012026
ref: 25

CUSHION

€ 8.00

26

0925006008
ref: 26

CAP(OD:10)

€ 3.00

27

1435021A11
ref: 27

BODY,MUFFLER 2ND RH

€ 244.50

28

1436021A11
ref: 28

BODY,MUFFLER 2ND LH

€ 239.50

29

1477116700
ref: 29

CONNECTOR,MUFFLER

€ 19.00

30

0110708304
ref: 30

BOLT

€ 2.50

31

0916008067
ref: 31

WASHER

€ 2.00

32

0918008102
ref: 32

SPACER (8.6X12X17.5)

€ 3.00

33

0932012026
ref: 33

CUSHION

€ 8.00

34

0831311085
ref: 34

NUT,M8X1.25X12

€ 2.00

all assemblies
