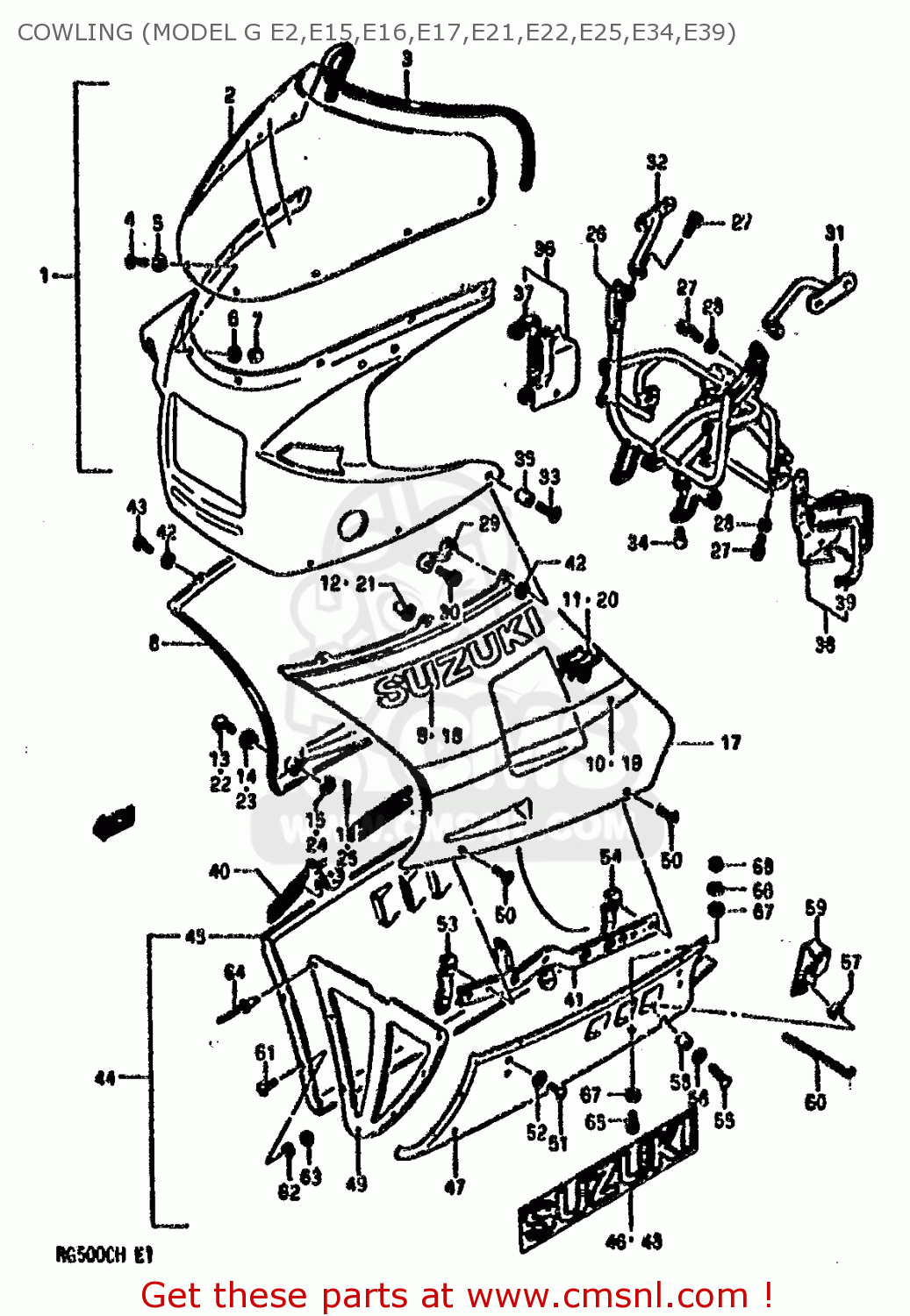

COWLING (MODEL G E2,E15,E16,E17,E21,E22,E25,E34,E39)

ref

part #

description

quantity

1-1

9440021A00019
ref: 1-1
E2,E15,E16,E21,E22,E

COWLING ASSY (BLACK)

€ 575.50

1-2

9440021A1019F
ref: 1-2
E2,E15,E16,E21,E22,E

COWLING ASSY (BLUE)

€ 575.50

1-3

9440021A20019
ref: 1-3
E17,FOR 85J

COWLING ASSY (BLACK)

€ 0.00

1-4

9440021A3019F
ref: 1-4
E17,FOR 7GF

COWLING ASSY (BLUE)

€ 0.00

2

9461120A00
ref: 2

WINDOW,COWLING

€ 371.00

3-1

9463120A00
ref: 3-1
E2,E15,E16,E21,E22,E

MOLDING

€ 18.00

3-2

9463120A10
ref: 3-2
E17

MOLDING

€ 14.00

4

0913905024
ref: 4

SCREW(5X14)

€ 2.50

5

0932005008
ref: 5

CUSHION

€ 5.00

6

0832221055
ref: 6

WASHER,5MM

€ 2.50

7

0831921055
ref: 7

NUT 8MM

€ 1.50

8-1

9443020A1085J
ref: 8-1

COWLING,SIDE RH (WHITE/RED)

€ 248.00

8-2

9443020A107GF
ref: 8-2

COWLING,RH

€ 248.00

9-1

6811133200019
ref: 9-1
FOR 85J

EMBLEM

€ 13.00

9-2

681113320007G
ref: 9-2
FOR 7GF

EMBLEM

€ 14.00

10-1

6868020A007UW
ref: 10-1
FOR 85J

TAPE,SET,RH

€ 27.50

10-2

6868020A0071A
ref: 10-2
FOR 7GF

TAPE SET, RH

€ 36.50

11

6868120A107TS
ref: 11

EMBLEM,FRAME COVER

€ 10.00

12

9443416710
ref: 12

NUT,COWLING COVER

€ 4.50

13

9449120A00
ref: 13

HEAD,COWLING FASTENER

€ 5.00

14

9449420A01
ref: 14

WASHER,COWLING FASTENER

€ 4.00

15

9449520A00
ref: 15

E-RING

€ 1.50

16

0920502014
ref: 16

PIN

€ 1.50

17-1

9444020A1085J
ref: 17-1

COWLING,SIDE LH (WHITE/RED)

€ 248.00

17-2

9444020A107GF
ref: 17-2

COWLING LH

€ 248.00

18-1

6811133200019
ref: 18-1
FOR 85J

EMBLEM

€ 13.00

18-2

681113320007G
ref: 18-2
FOR 7GF

EMBLEM

€ 14.00

19-1

6869020A007UW
ref: 19-1
FOR 85J

TAPE SET,LH

€ 0.00

19-2

6869020A0071A
ref: 19-2
FOR 7GF

TAPE SET,LH

€ 41.00

20

6868120A107TS
ref: 20

EMBLEM,FRAME COVER

€ 10.00

21

9443416710
ref: 21

NUT,COWLING COVER

€ 4.50

22

9449120A00
ref: 22

HEAD,COWLING FASTENER

€ 5.00

23

9449420A01
ref: 23

WASHER,COWLING FASTENER

€ 4.00

24

9449520A00
ref: 24

E-RING

€ 1.50

25

0920502014
ref: 25

PIN

€ 1.50

26

9451021A01
ref: 26

BRACE,COWLING

€ 131.50

27

0711008165
ref: 27

BOLT

€ 3.00

28

0832121084
ref: 28

WASHER,LOCK,8.

€ 2.50

29

9452020A11
ref: 29

BRACKET,COWLING UPR

€ 37.00

30

0711008168
ref: 30

BOLT

€ 3.00

31

9453020A00
ref: 31

BRACKET,RR VIEW MIRRORR,L

€ 23.00

32

9454020A00
ref: 32

BRACKET,RR VIEW MIRRORR,R

€ 18.00

33

0913906029
ref: 33

SCREW(6X25)

€ 5.00

34

0913906030
ref: 34

SCREW(6X16)

€ 3.50

35

0918006158
ref: 35

SPACER

€ 4.50

36

5189120A00
ref: 36

COVER,COUPLER RH

€ 12.50

37

5189320A00
ref: 37

MOLDING

€ 4.00

38

5189220A00
ref: 38

COVER,COUPLER LH

€ 12.00

39

5189320A00
ref: 39

MOLDING

€ 4.00

40

9441020A00
ref: 40

BRACKET,COWLING LWR,R

€ 15.50

41

9442020A00
ref: 41

BRACKET,COWLING LWR,L

€ 16.00

42

0916107006
ref: 42

WASHER(7X14X1.2)

€ 3.00

43

0913906042
ref: 43

SCREW(6X30)

€ 7.50

44-1

9447020A0014L
ref: 44-1
FOR 85J

COWLING,UNDER (WHITE)

€ 383.00

44-2

9447020A0023Z
ref: 44-2
FOR 7GF

COWLING,UNDER (BLUE)

€ 869.50

45-1

947002084014L
ref: 45-1
FOR 14L

COWLING,UNDER RH

€ 0.00

45-2

947002084023Z
ref: 45-2
FOR 23Z

COWLING,UNDER RH

€ 408.00

46-1

6819120A0060K
ref: 46-1
FOR 14L

EMBLEM

€ 20.50

46-2

6819120A0073K
ref: 46-2
FOR 23Z

EMBLEM,COWLING LWR

€ 20.00

47-1

948002084014L
ref: 47-1
FOR 14L

COWLING,UNDER LH

€ 0.00

47-2

948002084023Z
ref: 47-2
FOR 23Z

COWLING,UNDER LH

€ 602.50

48-1

6819120A0060K
ref: 48-1
FOR 14L

EMBLEM

€ 20.50

48-2

6819120A0073K
ref: 48-2
FOR 23Z

EMBLEM,COWLING LWR

€ 20.00

49-1

9449820A0014L
ref: 49-1
FOR 14L

COVER,CENTER

€ 175.00

49-2

9449820A0023Z
ref: 49-2
FOR 23Z

COVER,CENTER

€ 175.00

50

0913906027
ref: 50

SCREW(6X12)

€ 3.00

51

9449920A00
ref: 51

SCREW

€ 2.00

52

9448920A00
ref: 52

WASHER

€ 7.50

53

9448420A01
ref: 53

BRACKET

€ 23.50

54

9448520A01
ref: 54

BRACKET

€ 24.50

55

0214206307
ref: 55

SCREW

€ 2.00

56

0832211068
ref: 56

WASHER 6MM

€ 2.00

57

9447720A00
ref: 57

CUSHION

€ 8.50

58

9449320A00
ref: 58

SPACER

€ 7.50

59

9448620A00
ref: 59

BRACKET

€ 43.50

60

9448820A00
ref: 60

CLAMP

€ 4.50

61

9449920A00
ref: 61

SCREW

€ 2.00

62

9448920A00
ref: 62

WASHER

€ 7.50

63

0831022048
ref: 63

NUT 4MM

€ 2.00

64

9448720A00
ref: 64

RIVET

€ 6.00

65

0214205167
ref: 65

SCREW

€ 1.50

66

9446920A00
ref: 66

WASHER

€ 2.00

67

9447840A00
ref: 67

WASHER

€ 5.00

68

0831921058
ref: 68

NUT

€ 1.50
