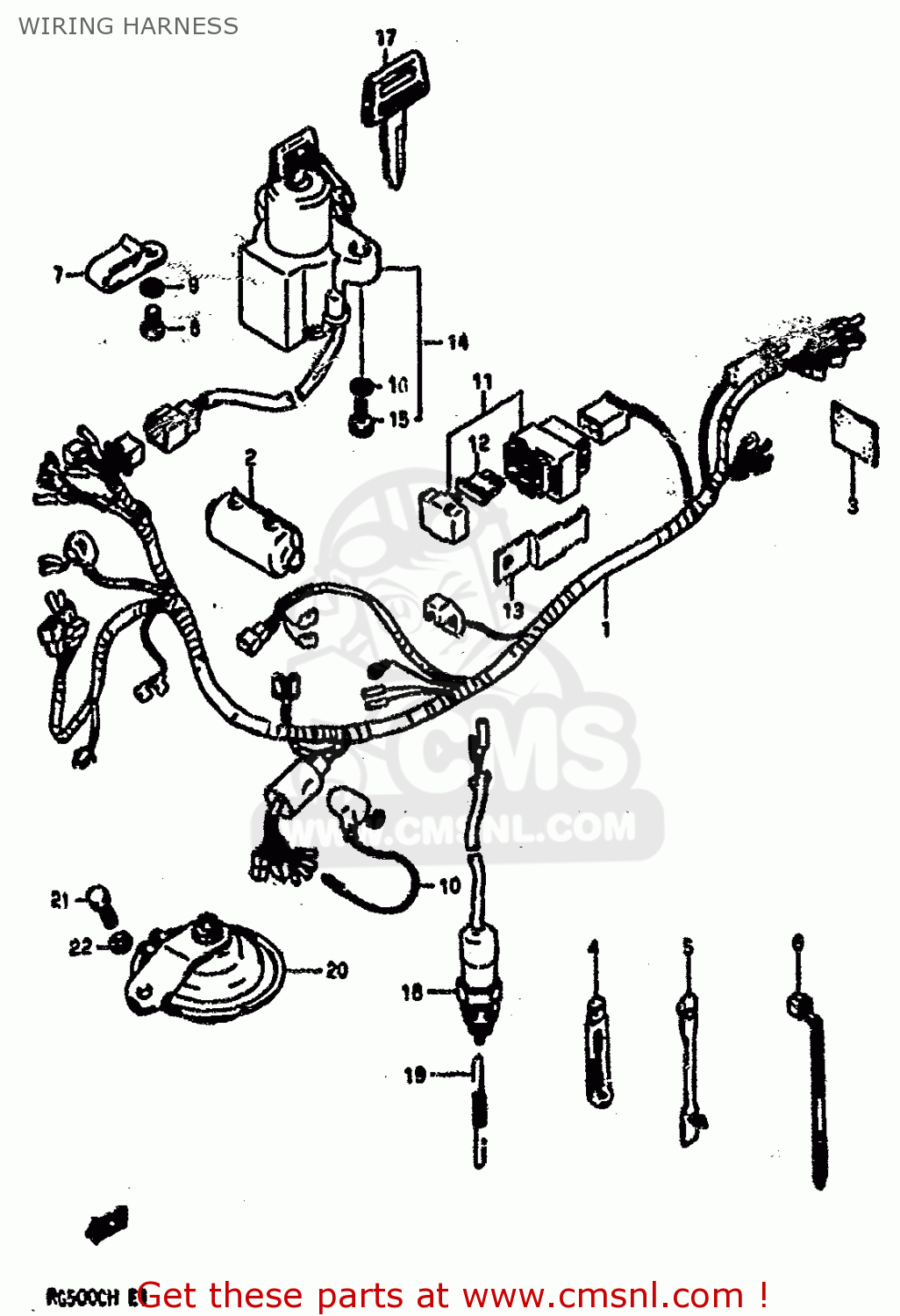

WIRING HARNESS

ref

part #

description

quantity

1-1

3661020A01
ref: 1-1
E1,E4,E6

HARNESS,WIRING

€ 340.00

1-2

3661020A30
ref: 1-2
E2,E15,E16,E17,E21,E

HARNESS,WIRING

€ 340.00

2

3661830610
ref: 2

BOOT,WIRING HARNESS

€ 9.50

3

3692006400
ref: 3

COVER,HARNESS

€ 3.00

4-1

0940406402
ref: 4-1

CLAMP

€ 2.50

4-2

0940406413
ref: 4-2

CLAMP

€ 2.50

4-3

0940408402
ref: 4-3

CLAMP

€ 3.50

5-1

0940705405
ref: 5-1

CLAMP

€ 2.00

5-2

0940705406
ref: 5-2

CLAMP(L:118)

€ 2.00

6-1

0940711401
ref: 6-1

CLAMP(L:95)

€ 2.50

6-2

0940714403
ref: 6-2

CLAMP(L:125)

€ 2.50

6-3

0940718402
ref: 6-3

CLAMP(L:165)

€ 2.50

6-4

0940725401
ref: 6-4

CLAMP(L:235)

€ 4.00

7

3661904A00
ref: 7

CLAMP,HANDLE SWITCH

€ 5.50

8

0211206104
ref: 8

SCREW

€ 1.50

9

0832121064
ref: 9

WASHER,LOCK

€ 2.00

10

3685138401
ref: 10

WIRE,WATER TEMPERATURE GAUGE

€ 4.50

11

3674009301
ref: 11

BOX ASSEMBLY,FUSE

€ 18.00

12

0948120101
ref: 12

FUSE(20A)

€ 2.00

13

3679120A00
ref: 13

BRACKET,FUSE

€ 0.00

14-1

3710016710
ref: 14-1

LOCK ASSY

€ 159.00

14-2

3711016710
ref: 14-2
E15,E17,E22

SWITCH ASSY, IGNITION

€ 0.00

15

3715247011
ref: 15

BOLT

€ 3.00

16

0832121067
ref: 16

WASHER,LOCK

€ 2.50

17

3714516700
ref: 17
OPT

KEY,BLANK

€ 11.00

18

3774014A00
ref: 18

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

19

0944306012
ref: 19

SPRING

€ 3.00

20-1

3850020A70
ref: 20-1

HORN ASSY

€ 25.50

20-2

3850020A80
ref: 20-2
E4,E34,E39,E53

HORN ASSY

€ 25.50

21

0110706125
ref: 21

BOLT

€ 2.00

22

0832121064
ref: 22

WASHER,LOCK

€ 2.00

all assemblies
