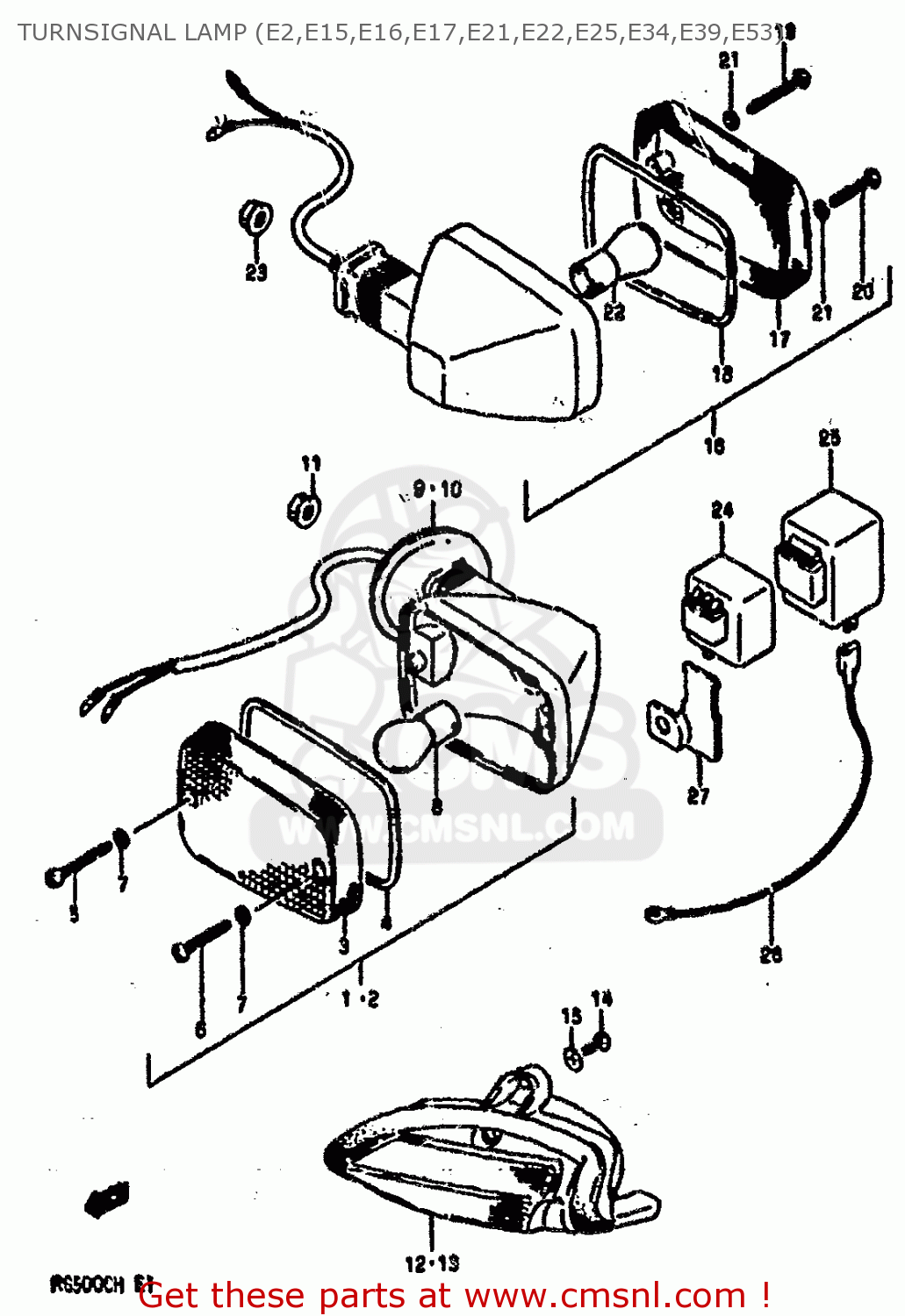

TURNSIGNAL LAMP (E2,E15,E16,E17,E21,E22,E25,E34,E39,E53)

ref

part #

description

quantity

1

3560120A20
ref: 1
TO 35601-20A30-999

LAMP,FRONT TURNSIGNAL

€ 120.50

2

3560220A20
ref: 2
TO 35602-20A30-999

LAMP,FRONT TURNSIGNAL LH

€ 120.50

3

3561202181
ref: 3

LENS,FR

€ 9.00

4

3561348700
ref: 4

GASKET (NAS)

€ 7.50

5

3562302180
ref: 5

SCREW,TURN SIG LENS FITTING

€ 2.00

6

0321104308
ref: 6

SCREW

€ 1.50

7

3562743010
ref: 7

GASKET (NAS)

€ 2.00

8

0947112045
ref: 8

BULB(12V21W)

€ 5.00

9

3567420A20
ref: 9

GROMMET,RH

€ 6.50

10

3568420A20
ref: 10

GROMMET,LH

€ 5.50

11

0831626105
ref: 11

NUT

€ 3.50

12-1

3560121A50019
ref: 12-1

COVER,RH

€ 58.00

12-2

3560121A5019F
ref: 12-2
MODEL G

COVER,FRONT RH

€ 58.00

12-3

3560121A5033N
ref: 12-3
MODEL H

COVER,RH

€ 58.00

13-1

3560221A50019
ref: 13-1

COVER,LH

€ 58.00

13-2

3560221A5019F
ref: 13-2
MODEL G

COVER,FRONT LH

€ 58.00

13-3

3560221A5033N
ref: 13-3
MODEL H

COVER,LH

€ 58.00

14

0351104165
ref: 14

SCREW

€ 1.50

15

0832221045
ref: 15

WASHER

€ 5.00

16-1

3560314A22
ref: 16-1
E2,E15,E16,E17,E21,E

LAMP ASSY,REAR TURN SIGNAL

€ 93.50

16-2

3560314A52
ref: 16-2
E22

LAMP ASSY,RR

€ 71.50

17

3565202181
ref: 17

LENS,RR

€ 8.50

18

3561348700
ref: 18

GASKET (NAS)

€ 7.50

19

3562302180
ref: 19

SCREW,TURN SIG LENS FITTING

€ 2.00

20

0321104308
ref: 20

SCREW

€ 1.50

21

3562743010
ref: 21

GASKET (NAS)

€ 2.00

22

0947112045
ref: 22

BULB(12V21W)

€ 5.00

23

0831626105
ref: 23

NUT

€ 3.50

24

3861031310
ref: 24
E2,E15,E16,E17,E21,E

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

25

3861045091
ref: 25
E2,E22

RELAY ASSY,TUR

€ 67.50

26

3685120A00
ref: 26
E2,E22

WIRE,RELAY EARTH

€ 0.00

27

3862120A00
ref: 27

BRACKET,TURN SIGNAL RELAY

€ 4.00

all assemblies
