ELECTRICAL

RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)

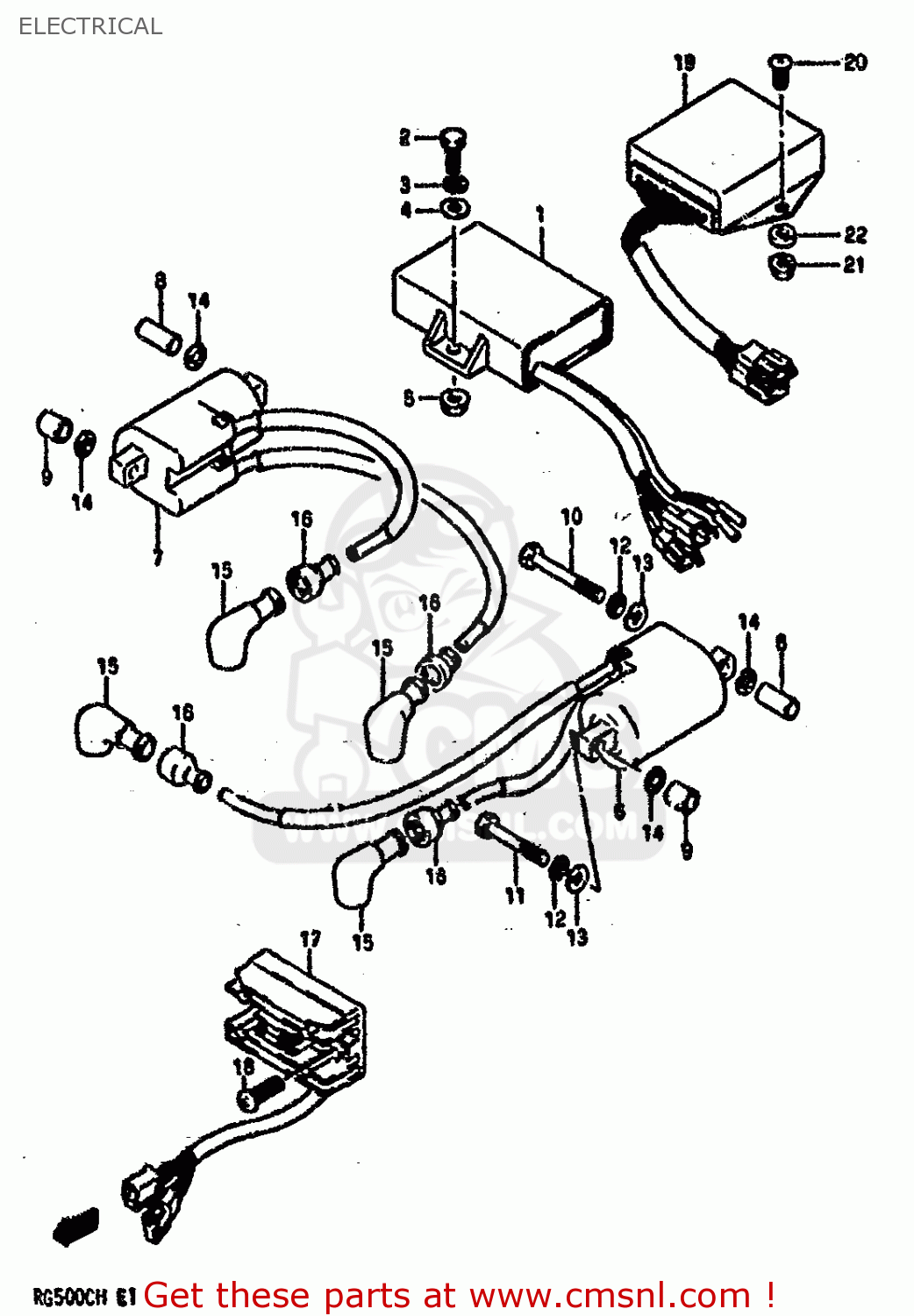

Electrical diagram RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)

prices are in EUR

ref

part #

description

quantity

3290020A00
ref: 1

CDI UNIT

€ 472.50

0110706206
ref: 2

BOLT,M6X1X20

€ 2.00

0832121066
ref: 3

WASHER,LOCK

€ 2.00

0832221066
ref: 4

WASHER, LOWER

€ 2.00

0831616066
ref: 5

NUT

€ 2.50

3341020A00
ref: 6

COIL ASSY,IGN.

€ 136.00

3342020A00
ref: 7

COIL ASSY,IGN.

€ 136.00

0918006031
ref: 8

SPACER (6.8X10X20)

€ 2.00

0918006061
ref: 9

SPACER

€ 2.50

0110706506
ref: 10

BOLT 6X50

€ 2.50

0110706456
ref: 11

BOLT

€ 2.00

0832121066
ref: 12

WASHER,LOCK

€ 2.00

0832221066
ref: 13

WASHER, LOWER

€ 2.00

0916006019
ref: 14

WASHER(6.5X16X1.2)

€ 1.50

3351020A00
ref: 15

CAP,SPARK PLUG

€ 23.00

3354298000
ref: 16

SEAL,SPARK PLU

€ 4.50

3280020A00
ref: 17

RECTIFIER

€ 368.00

0211206205
ref: 18

SCREW

€ 2.00

3291020A00
ref: 19

EXHAUST CTRL

€ 278.00

0214206166
ref: 20

SCREW

€ 2.50

0831616066
ref: 21

NUT

€ 2.50

0916106019
ref: 22

WASHER

€ 0.00

ELECTRICAL

all assemblies
