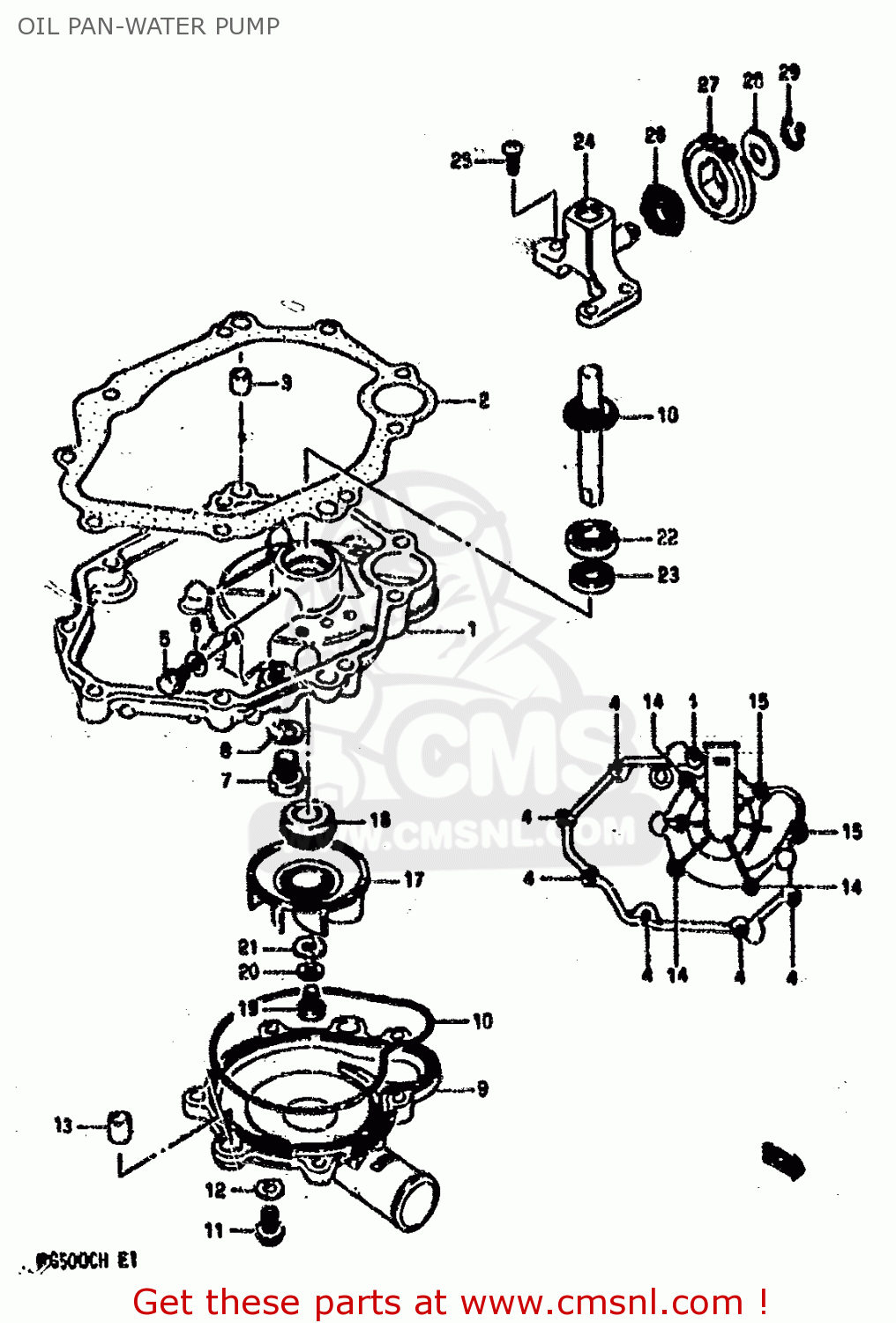

OIL PAN-WATER PUMP

ref

part #

description

quantity

1-1

1151120A01
ref: 1-1
~E.NO.102360 TO 1151

PAN,OIL

€ 77.50

1-2

1151120A02
ref: 1-2
E.NO.102361~

PAN,OIL

€ 77.50

2

1148920A00
ref: 2

GASKET,OIL PAN (MCA)

€ 9.50

3

0421109129
ref: 3

PIN

€ 2.00

4-1

0151706254
ref: 4-1
~E.NO.102360

BOLT

€ 2.50

4-2

0151706258
ref: 4-2
E.NO.102361~

BOLT

€ 2.50

5

0154705087
ref: 5

BOLT

€ 2.00

6

0916803010
ref: 6

GASKET

€ 0.00

7

0924710001
ref: 7

PLUG

€ 3.00

8

0916810002
ref: 8

GASKET(10X14X3.6) (NAS)

€ 2.00

9-1

1741120A02
ref: 9-1
~E.NO.102360

CASE,WATER PUMP

€ 54.50

9-2

1741120A03
ref: 9-2
E.NO.102361~

CASE,WATER PUMP

€ 54.50

10

1743520A00
ref: 10

O RING,WATER PUMP CASE

€ 7.00

11

0151706125
ref: 11

BOLT 6X12

€ 2.50

12

0916806004
ref: 12

GASKET(6.2X11X1).2 (NAS)

€ 1.50

13

0421109129
ref: 13

PIN

€ 2.00

14-1

0151706164
ref: 14-1
~E.NO.102360

BOLT

€ 2.50

14-2

0151706167
ref: 14-2
E.NO.102361~

BOLT 6X16

€ 1.50

15-1

0151703404
ref: 15-1
~E.NO.102360

BOLT

€ 0.00

15-2

0151706408
ref: 15-2
E.NO.102361~

BOLT

€ 2.50

16

1747014100
ref: 16

SEAL,WATER PUMP SHAFT

€ 21.50

17

1749133400
ref: 17

IMPELLER

€ 20.00

18

1751021A21
ref: 18

SHAFT,WATER PUMP

€ 140.50

19

0910006099
ref: 19

BOLT(6X13)

€ 2.00

20

0916406006
ref: 20

WASHER

€ 2.50

21

0916806016
ref: 21

GASKET (NAS)

€ 3.00

22

0926212003
ref: 22

BEARING

€ 19.00

23

0928310005
ref: 23

SEAL,OIL(10X20X5)

€ 4.50

24

1752021A20
ref: 24

HOUSING,WATER PUMP SHAFT

€ 114.00

25

0211206208
ref: 25

SCREW

€ 2.00

26

1753021A20
ref: 26

BEVEL,WATER PUMP DRIVEN

€ 123.50

27

1754221A20
ref: 27

GEAR,WATER PUMP DRIVEN

€ 24.00

28

1753321A20
ref: 28

WASHER,DRIVE BEVEL

€ 3.00

29

0833131109
ref: 29

CIRCLIP

€ 2.00
